• Check the finished default display. The grid may be hidden by clicking View →
Grid, equipment may be selected (brought to the front) by clicking View → Make
active, and a view of the overall relay with default display may be selected by
clicking View → Normal size (see Figure 5-48).
• Save the default display, and end the Display Editor session by clicking Display
→ Close. Answer the confirmation with Yes
.

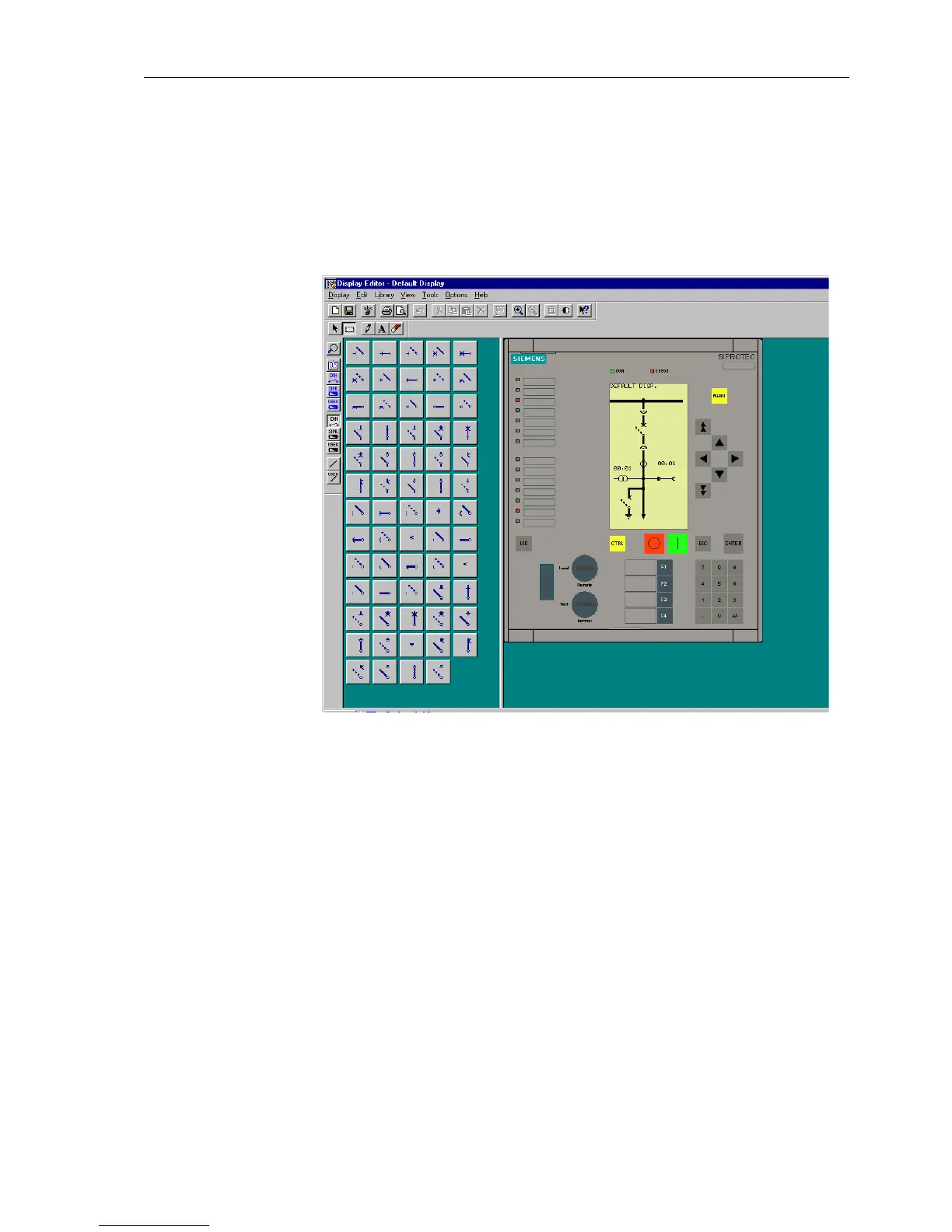

Figure 5-48 Default Display in Normal Size View
In order to use the default display for further applications (e.g. as a template in other
bays or for a control diagram), click on Display → Template → Save as.... Se-
lect the desired save path and enter the new filename. Click on Save.
