Control During Operation
7-22 7SA6 Manual
C53000-G1176-C156-2
Further set points can be set if their measured and metered values have been config-
ured via CFC (see Section 5.3).
The exceeding or undershooting of set points is output as event log (see Subsubsec-
tion 7.1.1.2).
From the
DeviceFront
With the device ready for operation, first press the key. The MAIN MENU appears.
Use the key to select the menu item
Measurement andswitchtothelistofmeas-
ured values using the key. The
MEASUREMENT selection appears.
There, select the menu item
Set Points with the key and switch to the list of set
points using the key (see Figure 7-23).

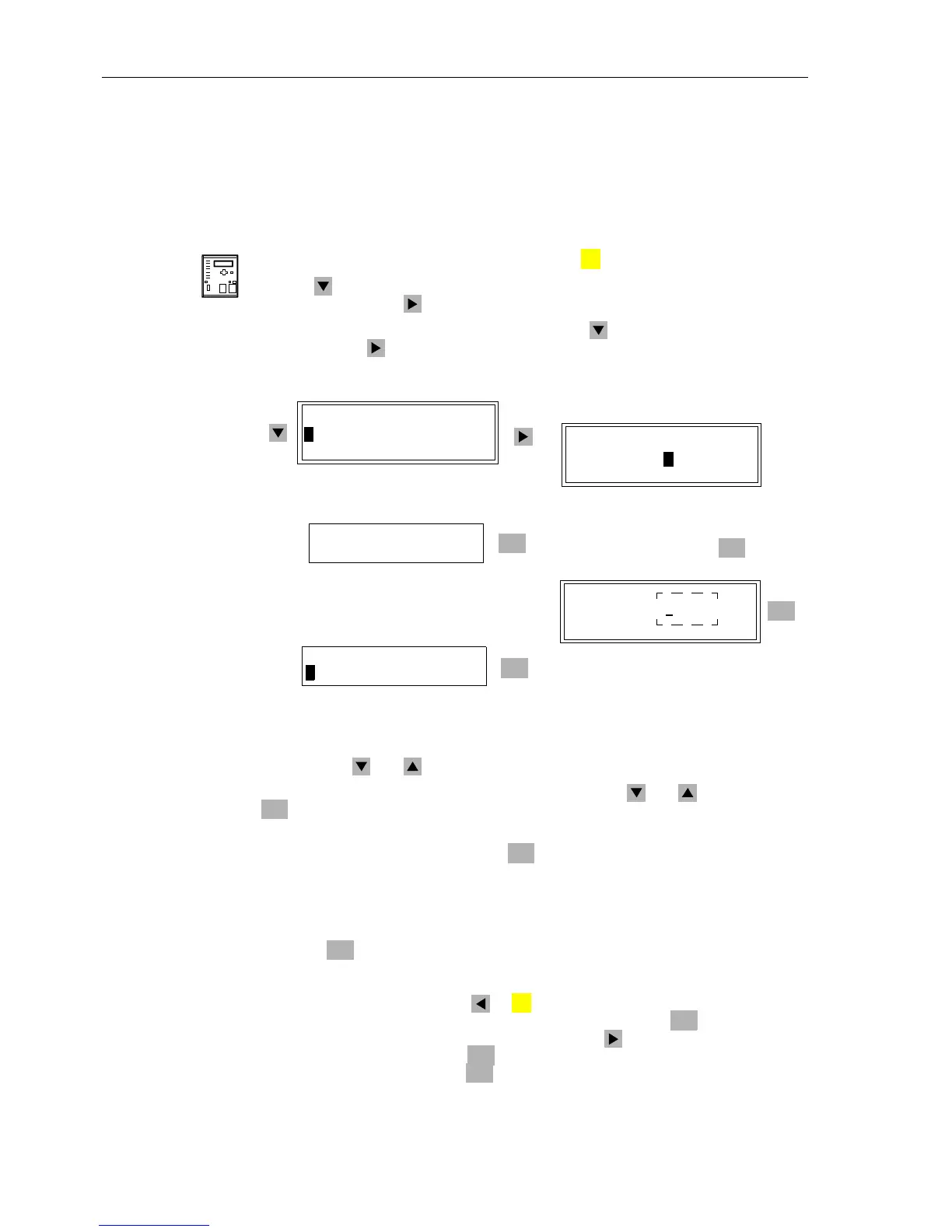

Figure 7-23 Setting of set-points on the device front — example
With the keys and the user can page up and down in the set point table.
To change a set point, it must be marked using the keys and . Then press the
key.
A prompt for the entry of password No. 5 (for individual settings) appears. After entry
of the password and confirmation with , the current value appears in a frame with
aflashingcursor.Thecurrentvaluemustbeoverwrittenwiththedesirednewvalue
using the numeric keys. If the permissible range for the setting value is exceeded to
the top or the bottom, the maximum or minimum set point value appears at the bottom
of the display when the value is entered.
Press the key. The new value now appears in the list of set points.
In the same way, further set points, if available, can be modified.
If this level is exited with the key or the query “
Are you sure?”, with the de-
fault answer “
Yes” appears (Figure 7-23). Confirm with the key , to validate the
the value. If the value must not be modified, press the key, so that the answer “
No”
is marked, and confirm with the key. If the value is to be modified once more,
mark “
Abort”, confirm with the key and enter the value again.
MENU
Measurement 13/14
---------------------
>Set Points(MV) 71
Reset 81
etc.
ENTER
ENTER
PW Settings?
= ------
Enter password Nr. 5 (for individual pa-
rameters) and confirm with
ENTER
IL1 Limit 90.0%
ENTER
Are you sure?
>Yes No Escape
SET POINTS (MV)01/11
---------------------
IL1 Limit 100.0 A
IL2 Limit 100.0 A
ENTER
ENTER
ENTER
MENU
ENTER
ENTER
ENTER
