Control During Operation
7-317SA6 Manual
C53000-G1176-C156-2
To change the time offset or the tolerance time for a clock error signal, select Clock
Setup
under SETUP/EXTRAS, as shown in Figure 7-29. Under Offset, the time off-
set can be changed. Under
Error Time,thetimedelayforthealarmcanbeadjust-
ed. These adjustments are done in the same manner as setting the time, by overwrit-
ing the displayed values and confirming with the key.
To return to the
SETUP/EXTRAS level, press the key, several times if necessary. To
return to the
MAIN MENU,pressthe key.
Figure 7-29 Date and time settings from the front panel
From PC with
DIGSI
®
4
To manually change the date and time of the device:
Click on
Device inthemenubarasshowninFigure7-30.SelectthecommandSet
Clock
.

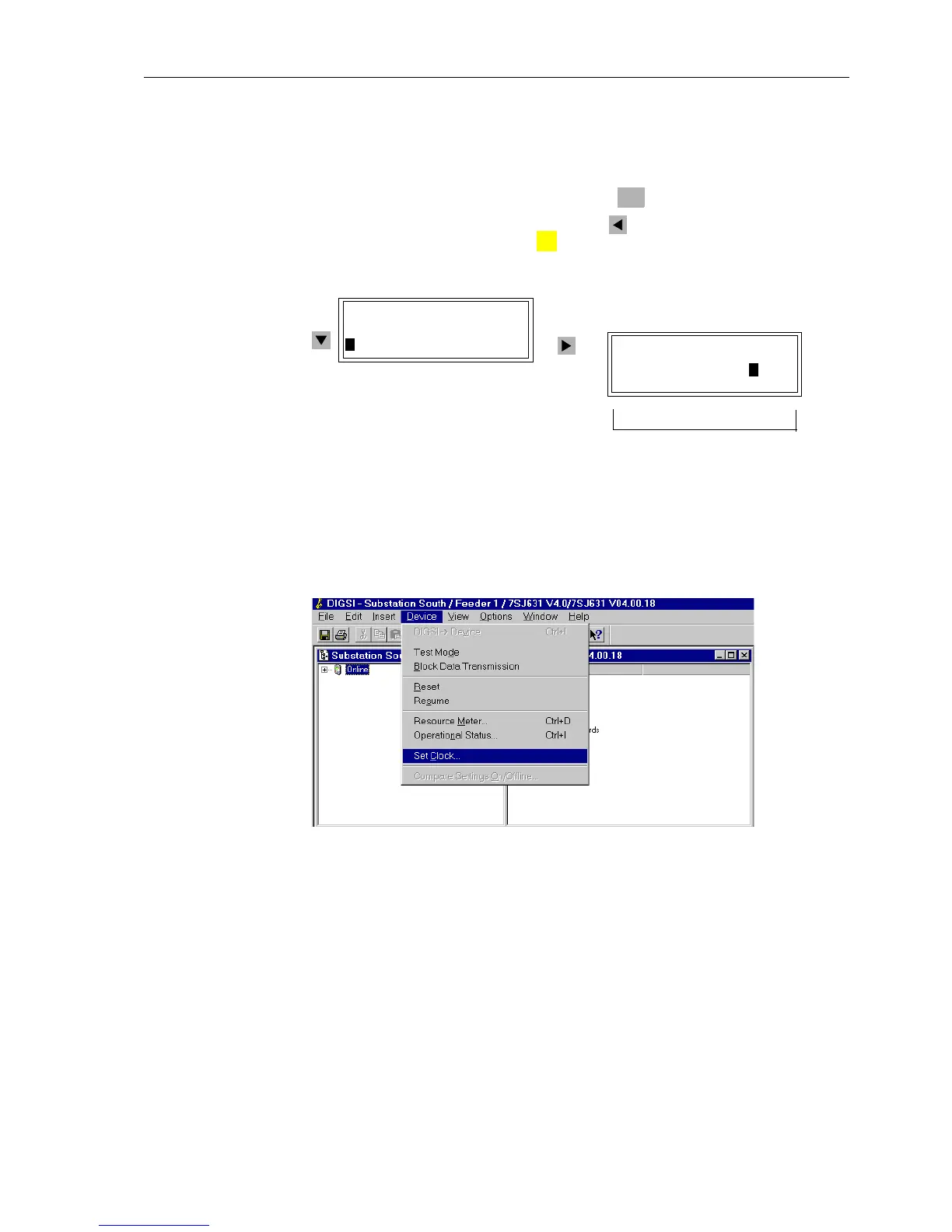

Figure 7-30 Selecting the command Set Clock in DIGSI
®
4
A dialog field, Set clock & date in device, is opened. The displayed values
are the present date and time. The day of the week is automatically derived from the
date — and cannot be edited.
• Edit the input fields Date and Time. The format depends on your regional settings
ofthePC.SeeFigure7-31.
Date: mm/dd/yyyy or dd.mm.yyyy
Time: hh.mm.ss
Click on
OK to transfer the entered values into the device. The previous values are
changed and the dialog field is closed.
ENTER
MENU
SETUP/EXTRAS 02/06
--------------------
>Date/Time –> 1
>Clock Setup –> 2
CLOCK SETUP 01/03
--------------------
Offset >0min
Error Time 2min
Source Internal
:
