Installation and Commissioning
8-26 7SA6 Manual
C53000-G1176-C156-2

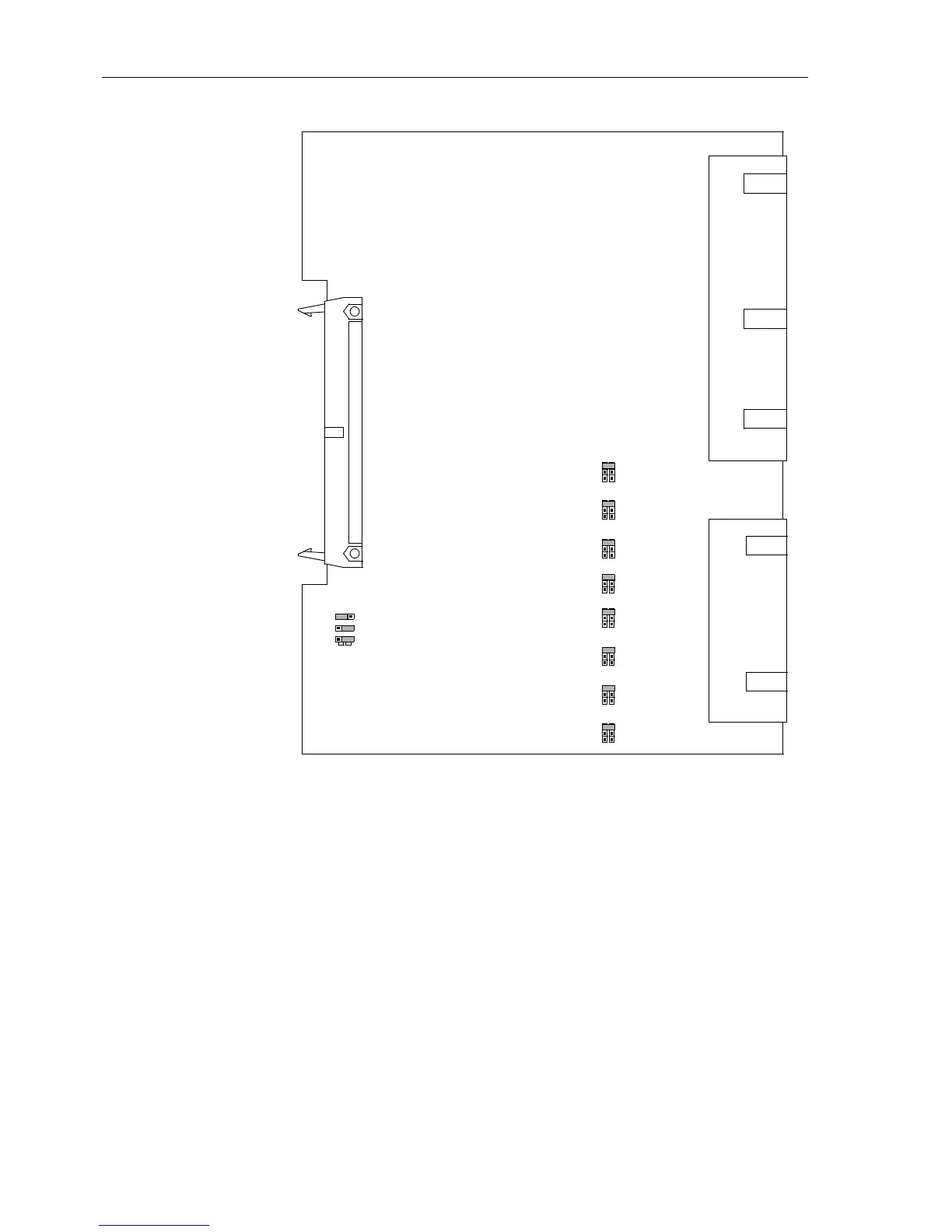

Bild 8-15 Input/output module C–I/O–10 with representation of the jumper settings required
for the module configuration
o Depending on the device version the contacts of some binary outputs can be changed
from from normally open to normally closed operation (see also in Appendix, Section
A.2).
With version 7SA6
1A/E/J (housing size
1
/
2
with 16 binary outputs) this goes for
binary output BO9 (Figure 8-10, slot 19);
With version 7SA6
2A/E/J (housing size
1
/
1
with 24 binary outputs) this goes for
binary output BO9 and BO17 (Figure 8-11, slot 33 left und slot 19 right);
With version 7SA6
2B/F/K (housing size
1
/
1
with 32 binary outputs) this goes for
binary output BO9, BO17 and BO25 (Figure 8-11, slot 33 left, slot 19 right und slot 19
left);
With version 7SA6
2M/P/R (housing size
1
/
1
with 24 binary outputs) this goes for
binary output BO17 (Figure 8-11, slot 19 right);
HLM
X22
X21
HLM
X24
X23
HLM
X26
X25
HLM
X28
X27
HLM
X30
X29
HLM
X32
X31
HLM
X34
X33
HLM
X36
X35
X71
HL
(AD0)
X73
(AD2)
X72
(AD1)
