Input/Output Board
C–I/O–11
The layout of the printed circuit board for the input/output board C-I/O–11 is illustrated
in Figure 8-17.

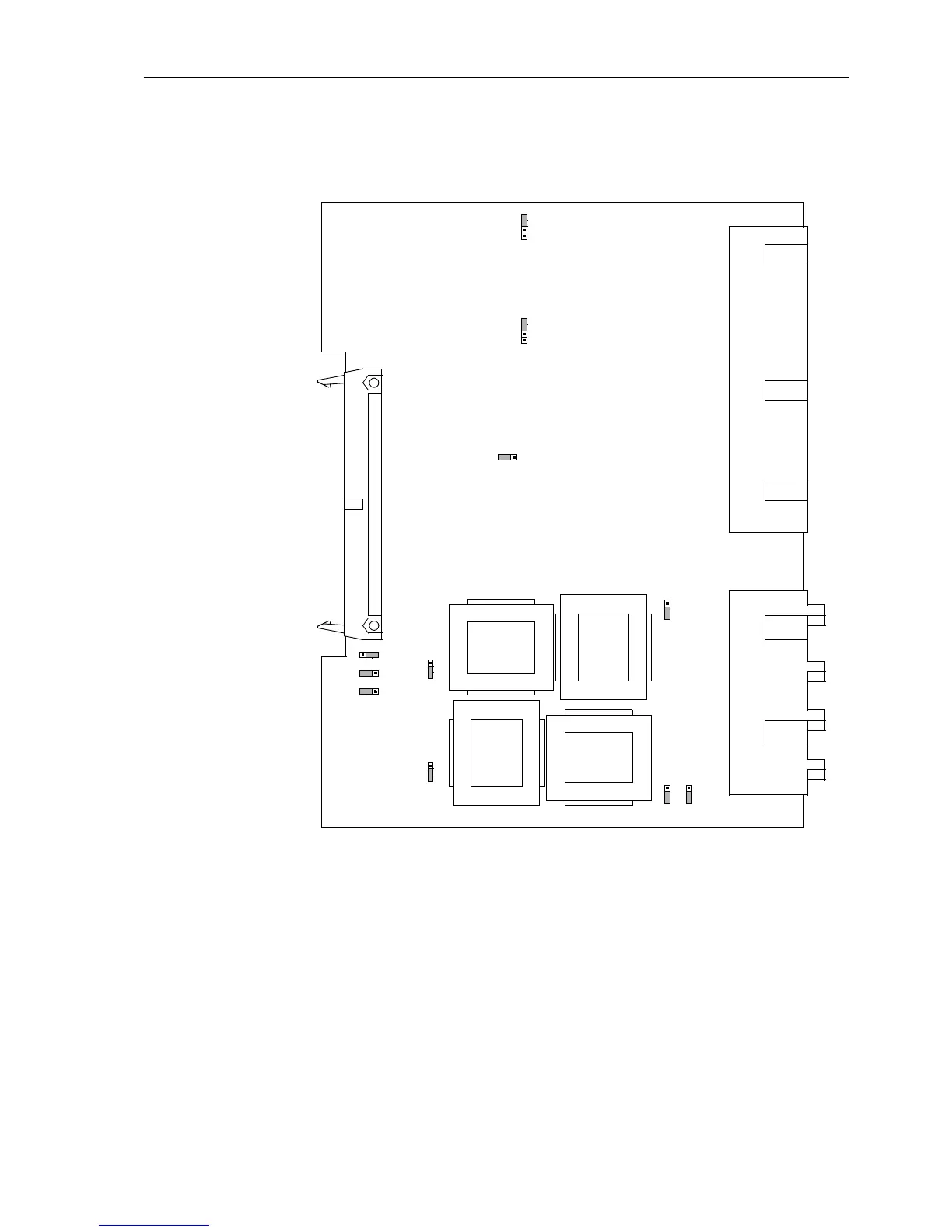

Figure 8-17 The input/output board C-I/O–11 with the jumpers necessary for the control of
settings.
T8
T10
T11
T9
X60
(AD2)
L
X62
1A 5A
123
X63
1A 5A
123
X61
1A 5A
123
X64
1A 5A
123
X65
IEE IE
X73
1 2 3
(AD1)
X72
1 2 3
(AD0)
X71
H
1A 5A
1 2 3
X21
1
X22
1
LMH LMH
