Initial Inspections
3-11
7SA6 Manual
C53000-G1176-C156-2
Setting Date and
Time
To enter the date and time:
G Click on Device in the menu bar. See Figure 3-11.
G Select Set Clock.

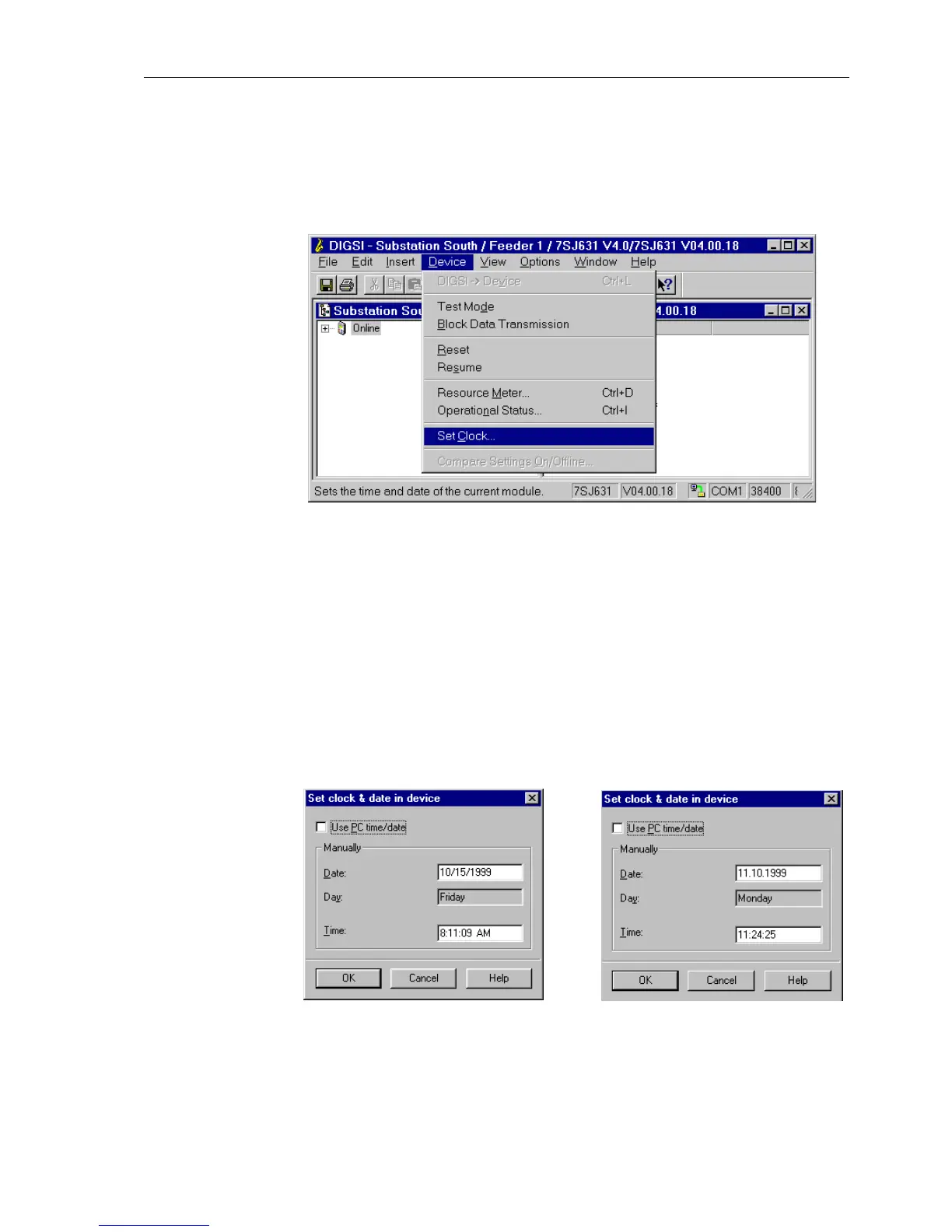

Figure 3-11 DIGSI
®
4 — Selection of the option Set Clock
The dialog field Set clock & date in device opens. The field shows the present
date and the approximate present time according to the device. The day of the week
is automatically derived from the date and cannot be edited.
• Edit the input fields Date and Time. The format depends on your regional settings
of the PC. See Figure 3-12.
Date: mm/dd/yyyy or dd.mm.yyyyy
Time: hh.mm.ss
Click OK to download the entered values to the device. The former values are
changed and the dialog field is closed.
Figure 3-12 DIGSI
®
4 — Dialog Field: Set clock & date in device
