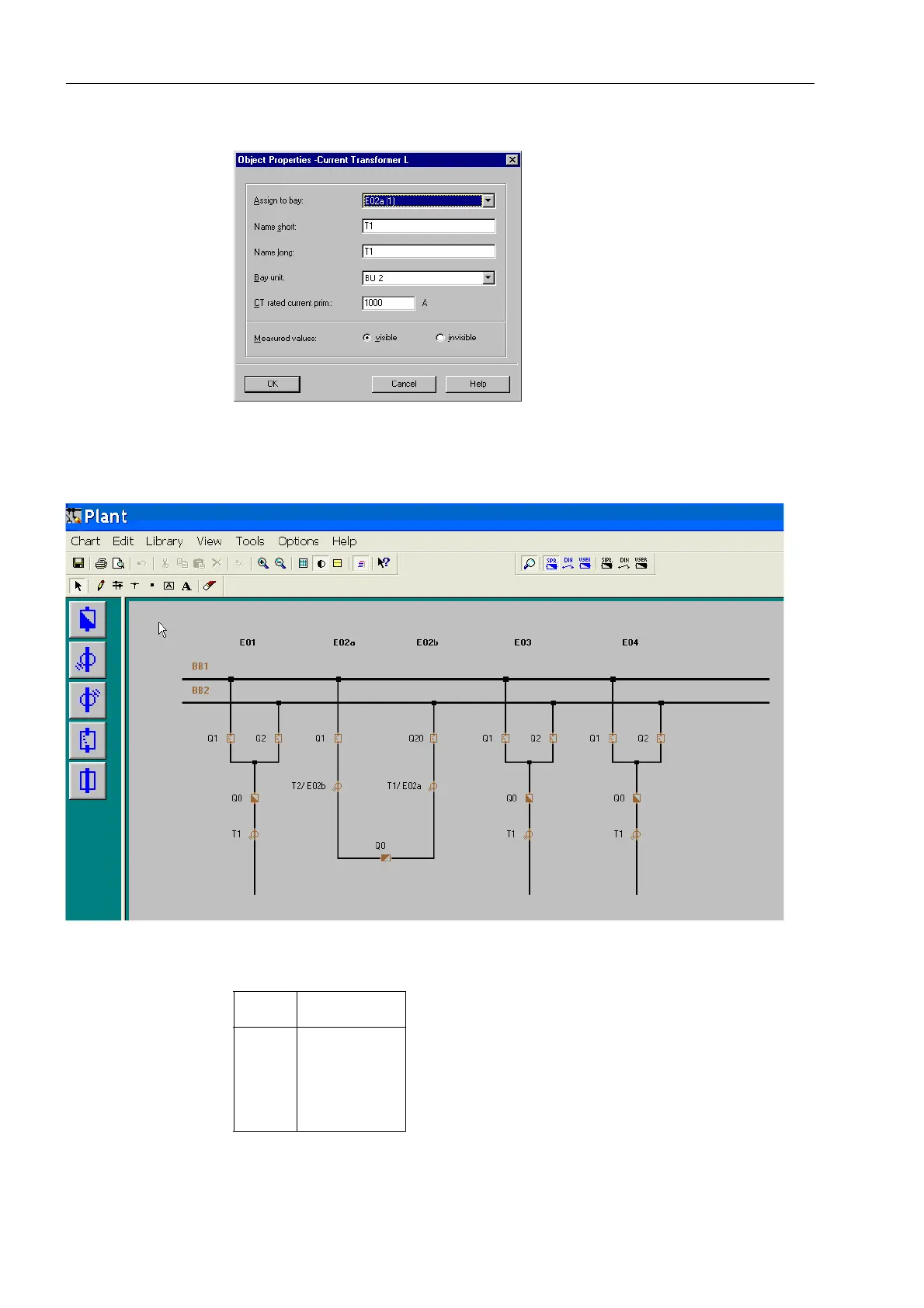

Figure 4-34 Object properties of the transformer T1 from the example given in Figure 4-33,
page 87
Figure 4-35 Example for the configuration of a 2-bay coupler with two CTs
Please note the crosswise assignment of the transformers.
Bay Bay unit
E01
E02a
E02b
E03
E04
BU 1
BU 2
BU 3
BU 4
BU 5
