A.6 Protocol-Dependent Functions
Table A-20 Protocol dependent functions
Function IEC 60870-5-103
Protocol

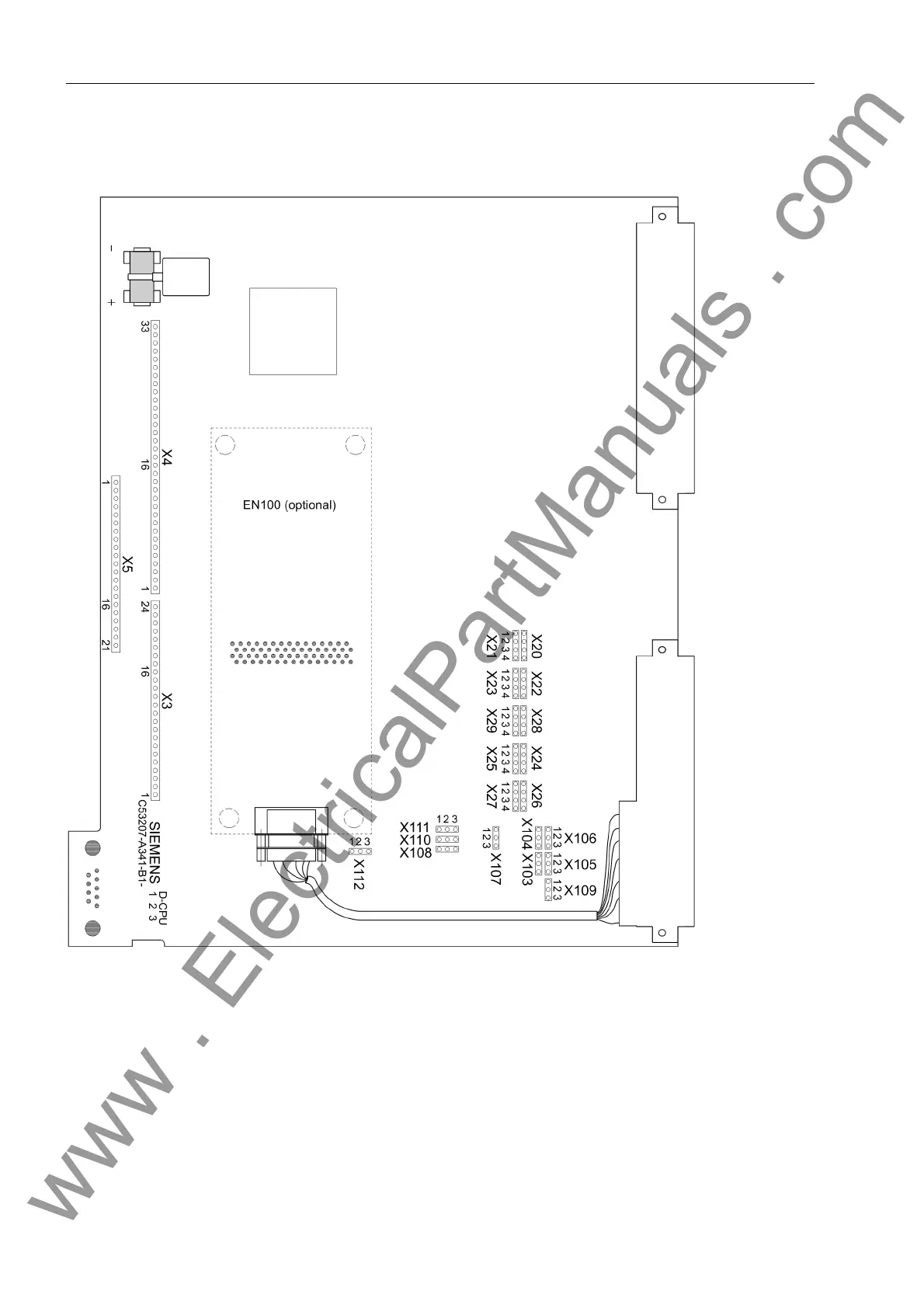

IEC 61850 (EN100)
Protocol
Operational measured values Yes Yes
Fault recording Yes Yes
Protection setting by remote
control
No No
User-defined indications and
switching objects
Yes Yes
Time synchronization Yes Yes
Annunciation with time stamp Yes Yes
Commissioning Aids
• Alarm and Measured Value
Transmission Blocking
• Creating test annunciations
• Acknowledging LED
Yes
Yes
Yes
Yes
Yes
Yes
Physical mode Asynchronous Synchronous
Transmission mode Cyclic/Event Cyclic/Event
Baud rate 4800 to 38400 up to 100 MBaud
Type FO Ethernet TP
