Appendix
350
7SS52 V4 Manual
C53000-G1176-C182-3
ZPS2 module
of release 7SS52 ../
HH and higher
The ZPS2 module can be used as master (ZPS-SBK) or slave (ZPS-BSZ or ZPS-SK)
in a multi-processor system. The C53207-A361-B28-1 module can be applied univer-
sally as ZPS-SK, ZPS-SBK and ZPS-BSZ. Each module is assigned its particular task
unambiguously by means of jumpers.

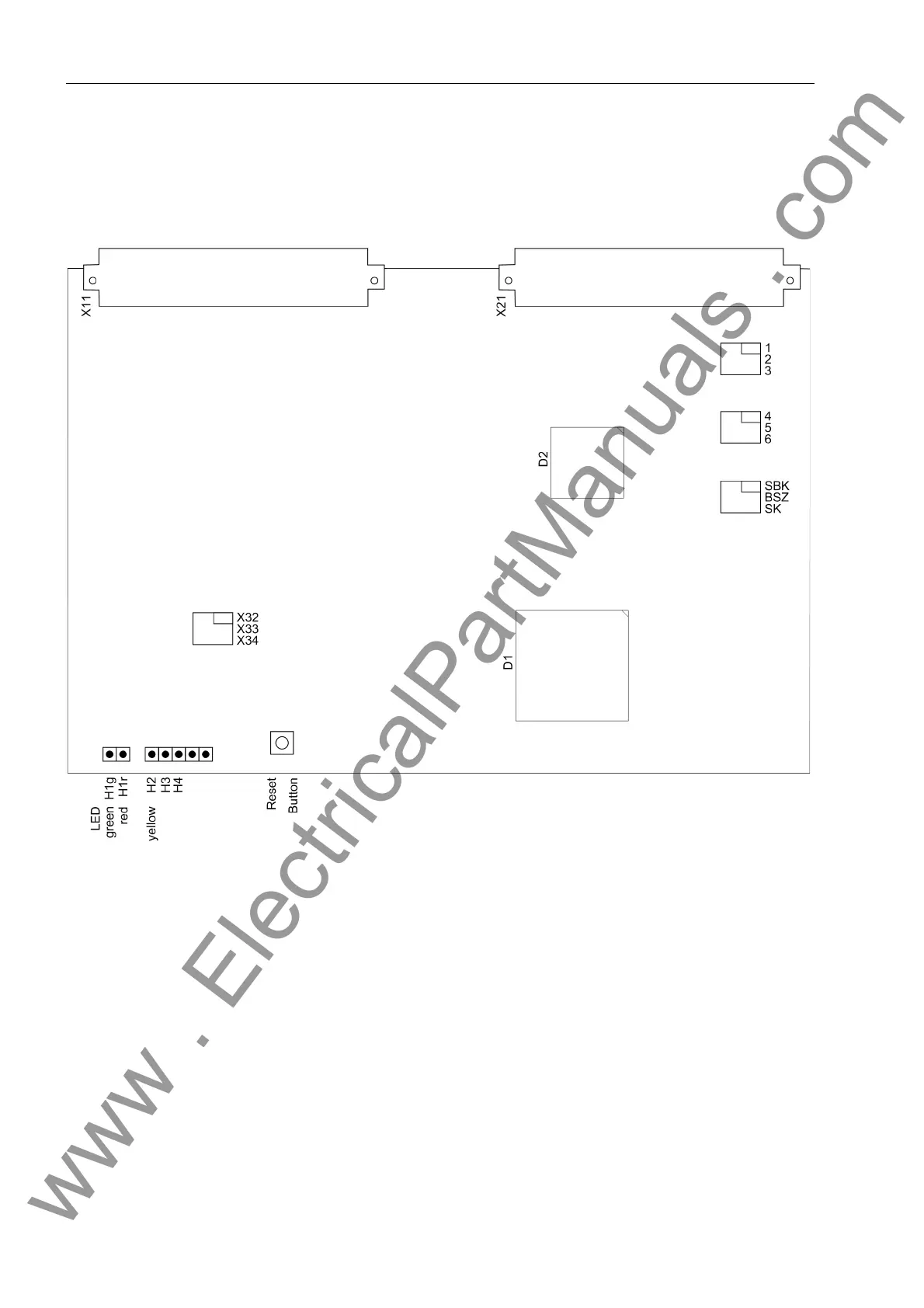

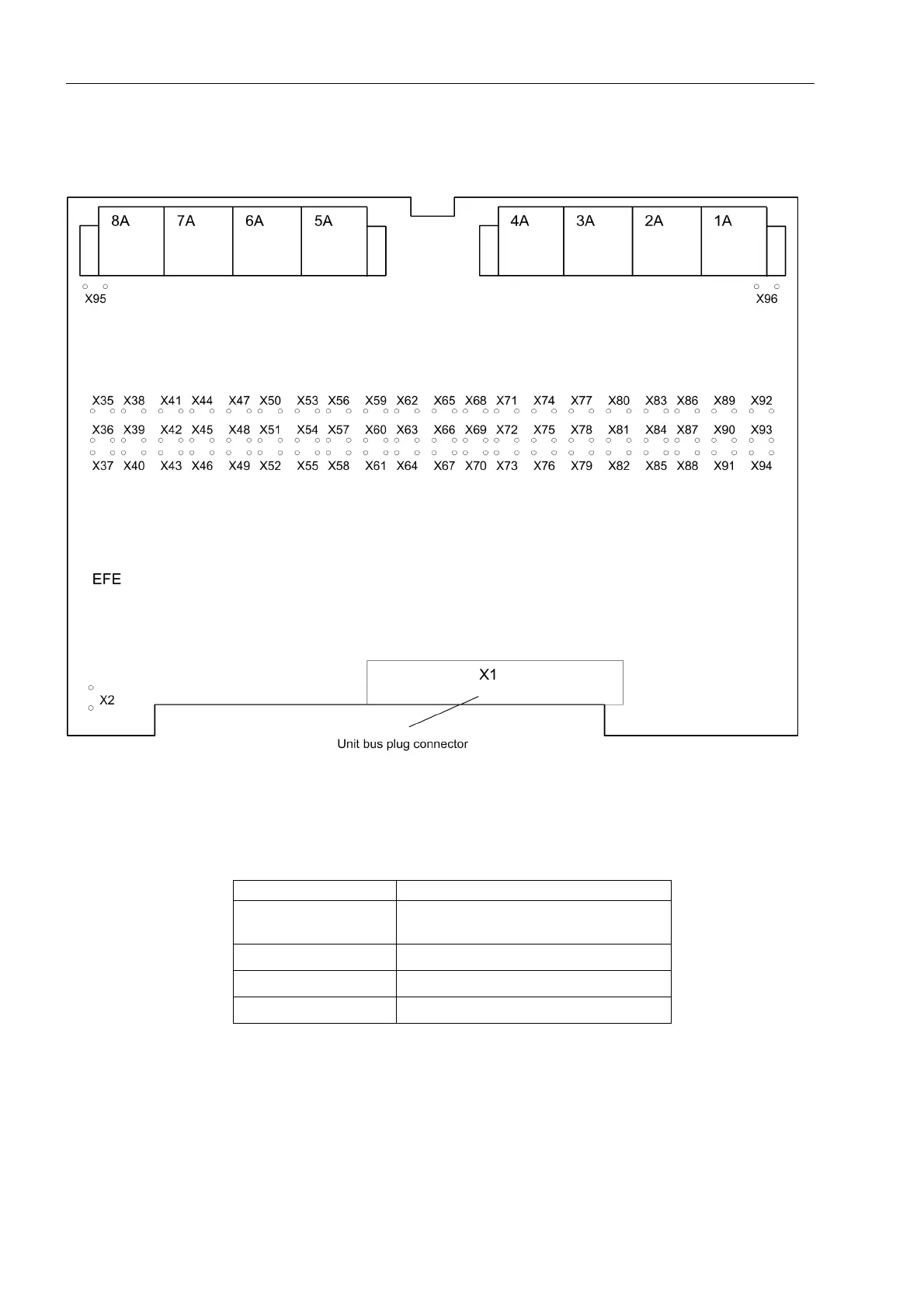

Figure A-8 Location of the jumpers on the ZPS2 module
Prior to the installation of a module it is recommended that you check the jumper set-
tings. You can find a list of these settings in Table A-10, page 351 of the Appendix.
