Appendix
340
7SS52 V4 Manual
C53000-G1176-C182-1
A.4 Settings − Central Unit
A.4.1 Settings of the ZPS Modules
The ZPS modules are a component of the central unit. They can be used as master
(ZBS-SBK) or slave (ZPS-BSZ or ZPS-SK) in the multi-processor system. The
C53207-A361-B12-1 module can be applied universally as ZPS-SK, ZPS-SBK and
ZPS-BSZ. The C53207-A361-B112-1 module has no communication controller and
can thus only be used as ZPS-SBK and ZPS-BSZ module. For an unequivocal defini-
tion of the task, the respective module is coded by means of switches.
The location of the code switches and the jumpers on the module is depicted in figure
Figure A-9, page 344. The settings can be taken from the tables A-8, page 341 and
A-9, page 341.

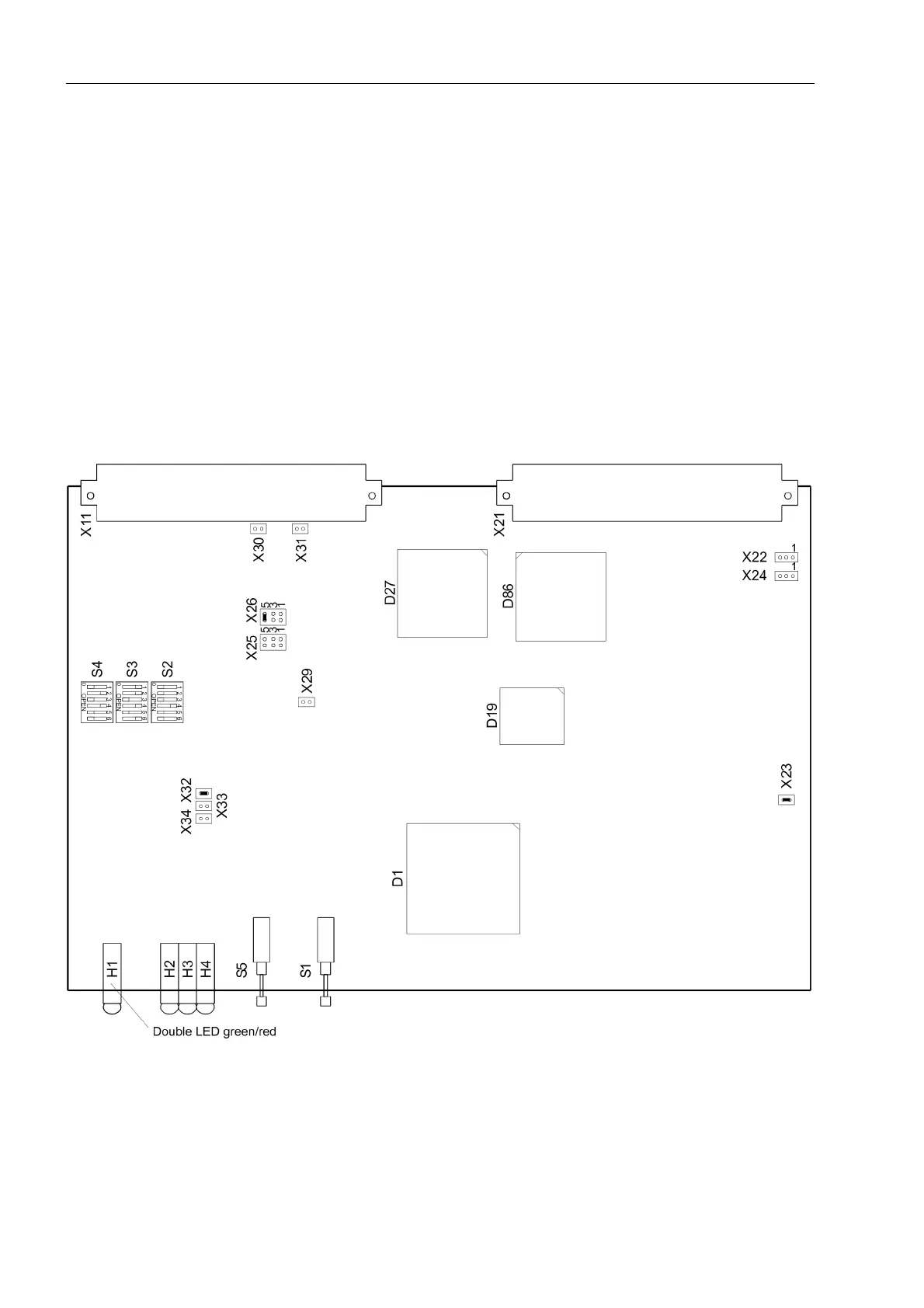

Figure A-7 Location of the coding switches and jumpers on the ZPS module
It is recommended to verify the switch positions and jumpers before fitting the module.
In Table A-8, page 341 and Table A-9, page 341 of the appendix the settings are list-
ed.
