Siemens SIPROTEC 7SS523 V3.2

Dimensions
319
7SS52 V4 Manual
C53000-G1176-C182-1
9.3 Dimensions
9.3.1 Central Unit

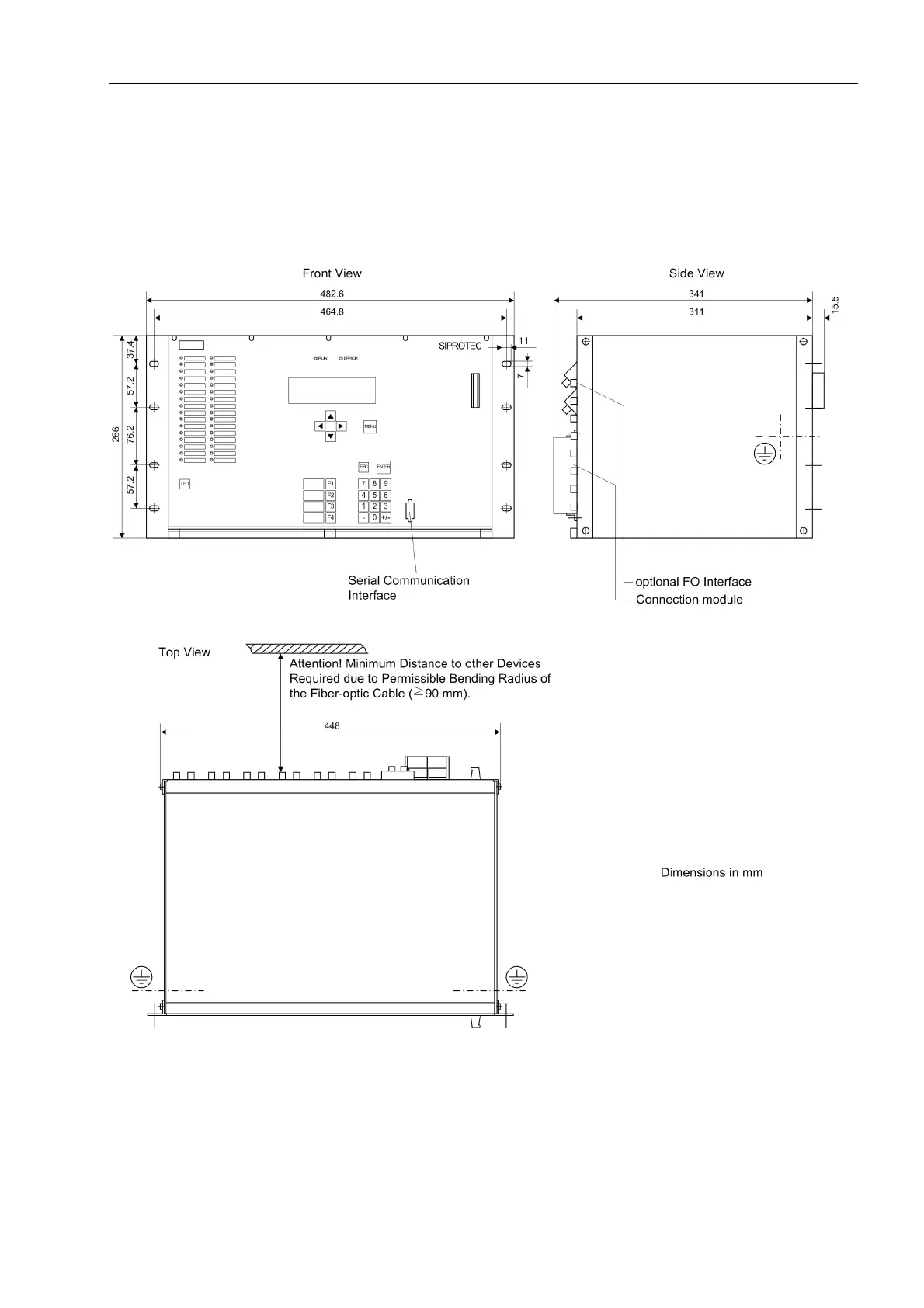

Figure 9-2 Mechanical dimensions of the subrack
By using the delivered distance angle piece the mounting location decreases up to
40 mm.
