Settings
−
Central Unit
349
7SS52 V4 Manual
C53000-G1176-C182-3

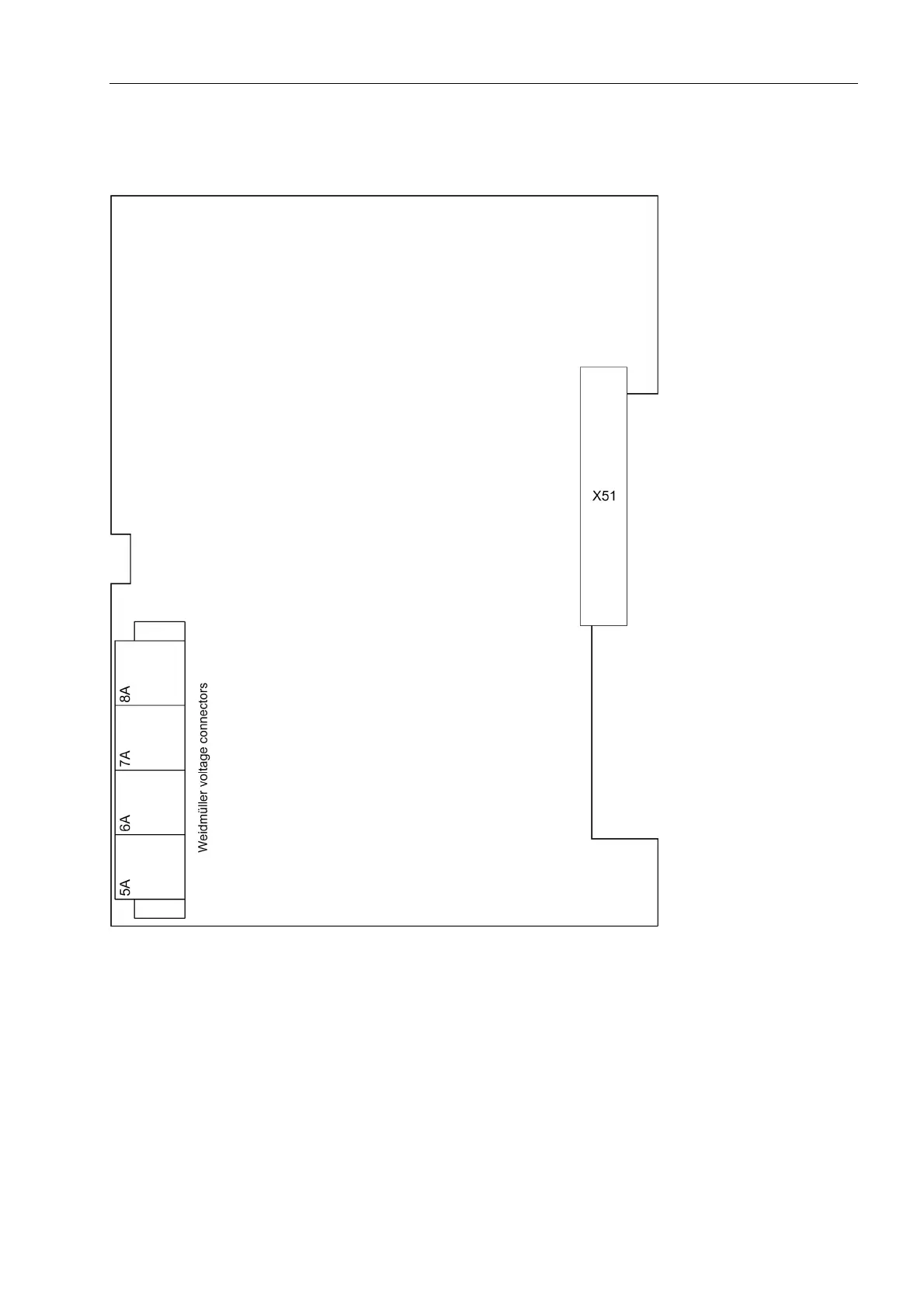

It is recommended to verify the switch positions and jumpers before fitting the module.
In Table A-8, page 349 and Table A-9, page 349 of the appendix the settings are list-
ed.
Table A-8 Jumper settings for the ZPS module
ZPS Functions
Jumper SBK BSZ 1 BSZ 2 BSZ 3 SK 1 SK 2 SK 3 SK 4 SK 5 SK 6
X22 off off off off off off off off off off
X23onononononononononon
X24 off off off off off off off off off off
X25 5 - 6 off off off off off off off off off
X26 off 5 - 65 - 65 - 65 - 65 - 65 - 65 - 65 - 65 - 6
X29 on off off off off off off off off off
X30 off off off off off off off off off off
X31 off off off off off off off off off off
X32onononononononononon
X33 off off off off off off off off off off
X34 off off off off off off off off off off
Table A-9 Coding switch settings for the ZPS module
ZPS Functions
Switch SBK BSZ 1 BSZ 2 BSZ 3 SK 1 SK 2 SK 3 SK 4 SK 5 SK 6
S2
S2.1 off off off off off off off off off off
S2.2 off off off off off off off off off off
S2.3 off off off off off off off off off off
S2.4offononononononononon
S2.5 off off off off off off off off off off
S2.6 off off off off off off off off off off
S3
S3.1offononononononononon
S3.2 off off on off on off on off on off
S3.3offononoffoffononoffoffon
S3.4offoffoffononononoffoffoff
S3.5 off off off off off off off on on on
S3.6offononononononononon
S4
S4.1 off off off off off off off off off off
S4.2 off off on off on off on off on off
S4.3offononoffoffononoffoffon
S4.4offoffoffononononoffoffoff
S4.5 off off off off off off off on on on
S4.6 off off off off off off off off off off
