End Fault Protection
133
7SS52 V4 Manual
C53000-G1176-C182-1

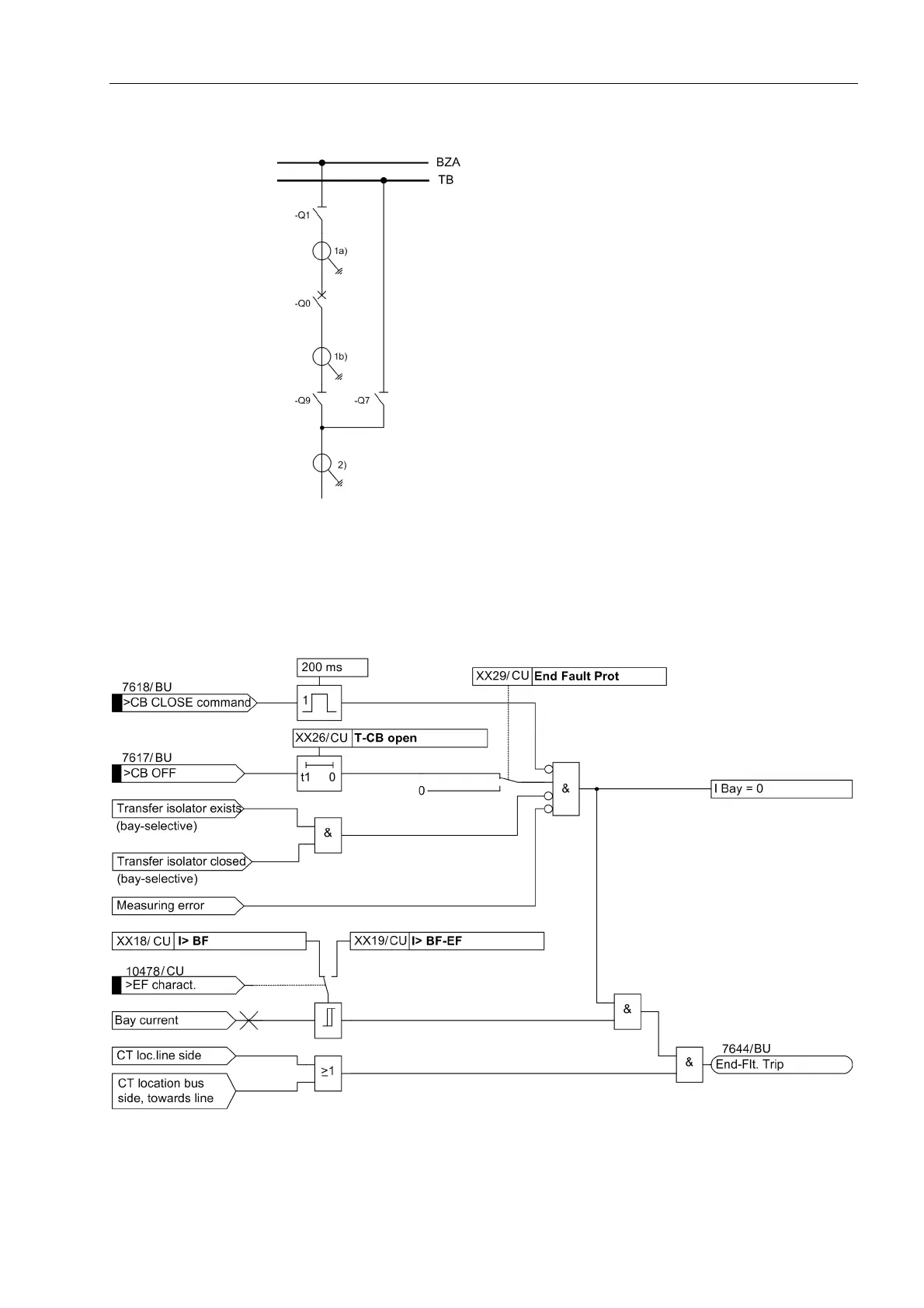

Figure 5-28 Possible CT locations
Figure 5-29 End fault protection
CT location:
1a) inside (relating to Q7) current transformers, busbar side (relating to Q0
)
1b) inside (relating to Q7) current transformers, line side (relating to Q0)
2) line-side current transformers (relating to Q7)
