Installation and Commissioning
250
7SS52 V4 Manual
C53000-G1176-C182-1

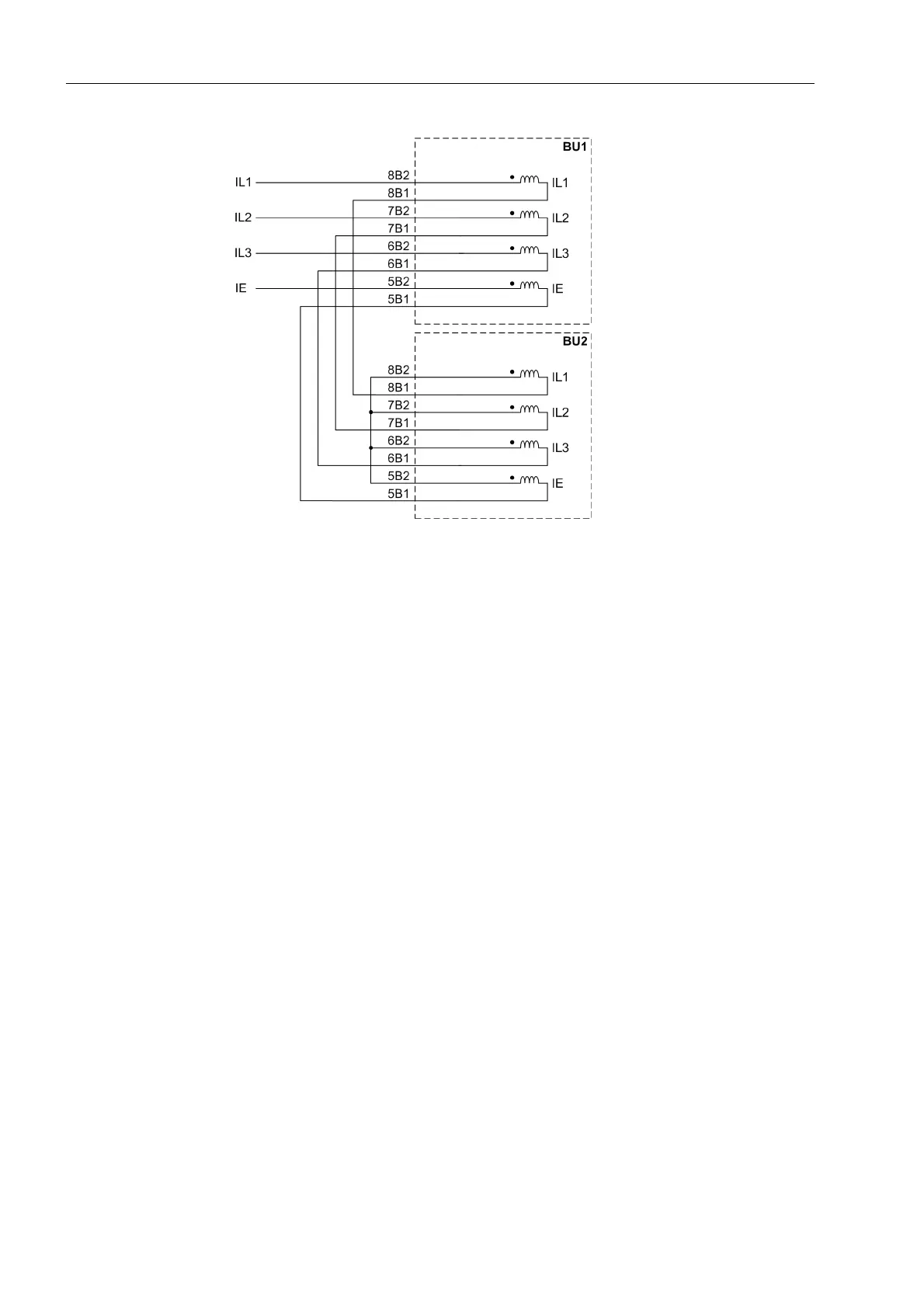

Figure 7-1 Connection of the current inputs of the bay units in bus couplers with only one cur-
rent transformer.
