Installation and Commissioning
256
7SS52 V4 Manual
C53000-G1176-C182-1

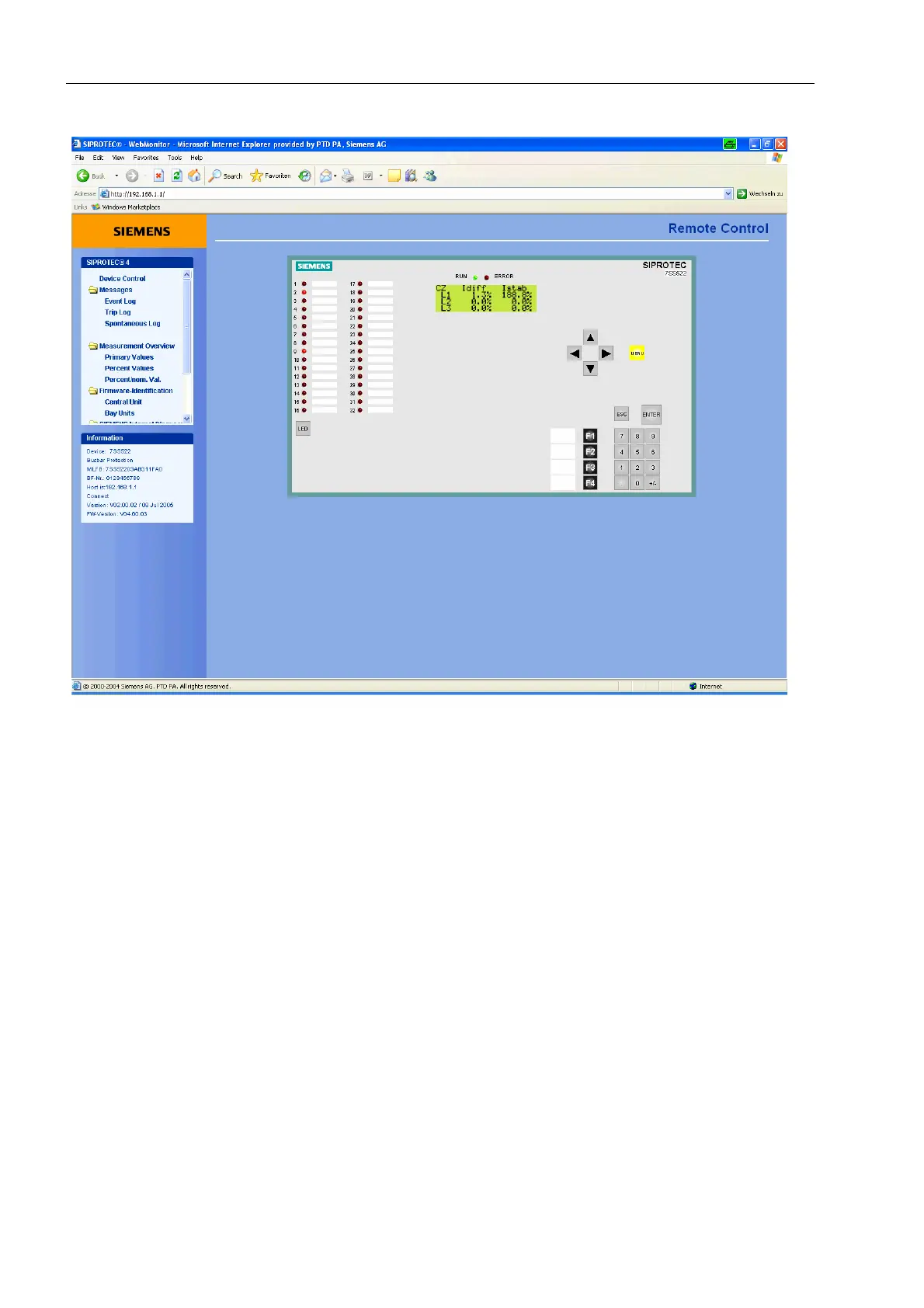

Figure 7-2 Web-monitor - Basic display
The above figure of the device operation view shows a device connected through the
data transmission link with its control (keyboard) and display elements (display, LEDs,
inscriptions). The device can be operated with the keys shown in the display in the
same way as with the sealed keypad on the device.
It is recommended to access via the Web monitor with read only rights. This can be
achieved by allowing "Read only" access for the interface through which the Web
browser accesses the device. You can receive this parameter in DIGSI via "Interfaces
- Operator Interface at the Device" (for access via serial interface) or via "Interfaces -
Ethernet at the device" (for access via Ethernet interface, refer to the following Figure).
