Appendix
356
7SS52 V4 Manual
C53000-G1176-C182-3
A.5 Jumper Settings − Bay Unit
A.5.1 Settings of the PFE Module

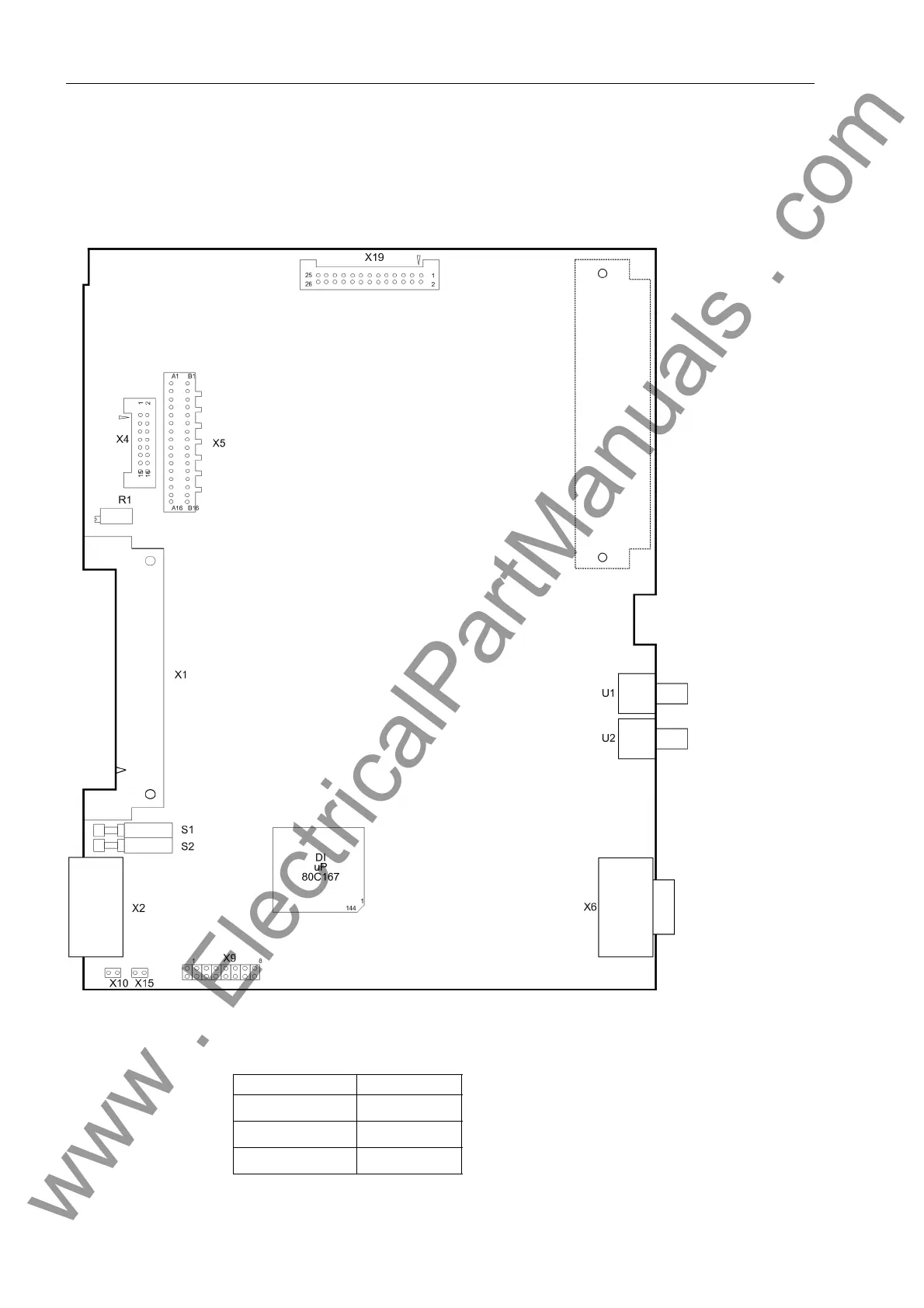

Figure A-11Location of the jumpers on the PFE module
Table A-16 Jumper settings for the PFE module
Connector Jumper
X9 Not installed
X10 Not installed
X15 Not installed
