Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
104 Manual, 09/2016, A5E03656507520A/RS-AB/003

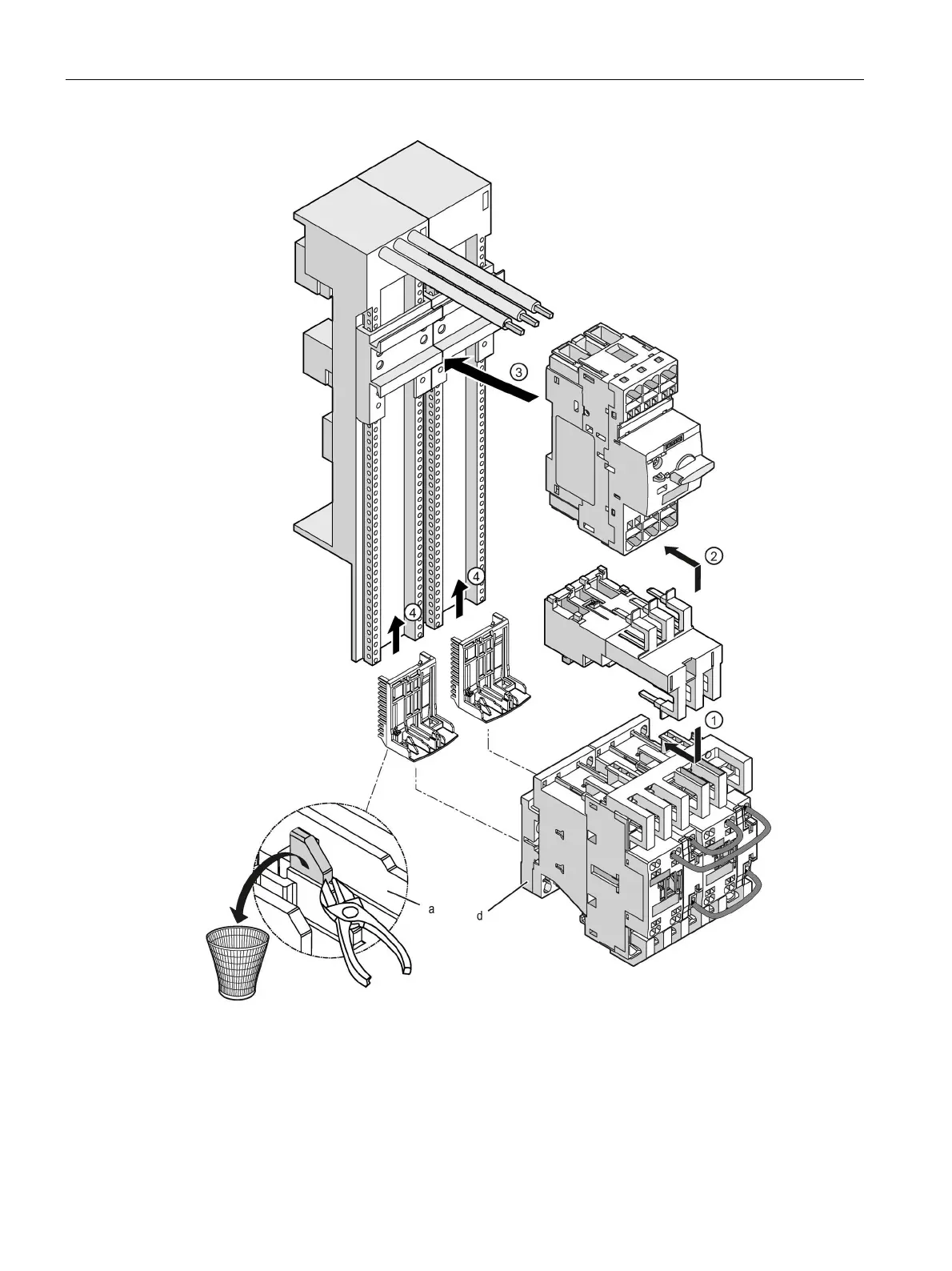

① Insert the connectors on the link module into the corresponding main conductor terminals on
the contactor. Make sure the guide tabs are inserted into the slots on the contactor.
The link module will sit flush with the contactor on the left- and right-hand sides.
