Description of SISTORE MX / MX DVD
16
Siemens Building Technologies
Fire Safety & Security Products 02.2009
6 Description of SISTORE MX / MX DVD
6.1 Connections und displays on the front side of the device

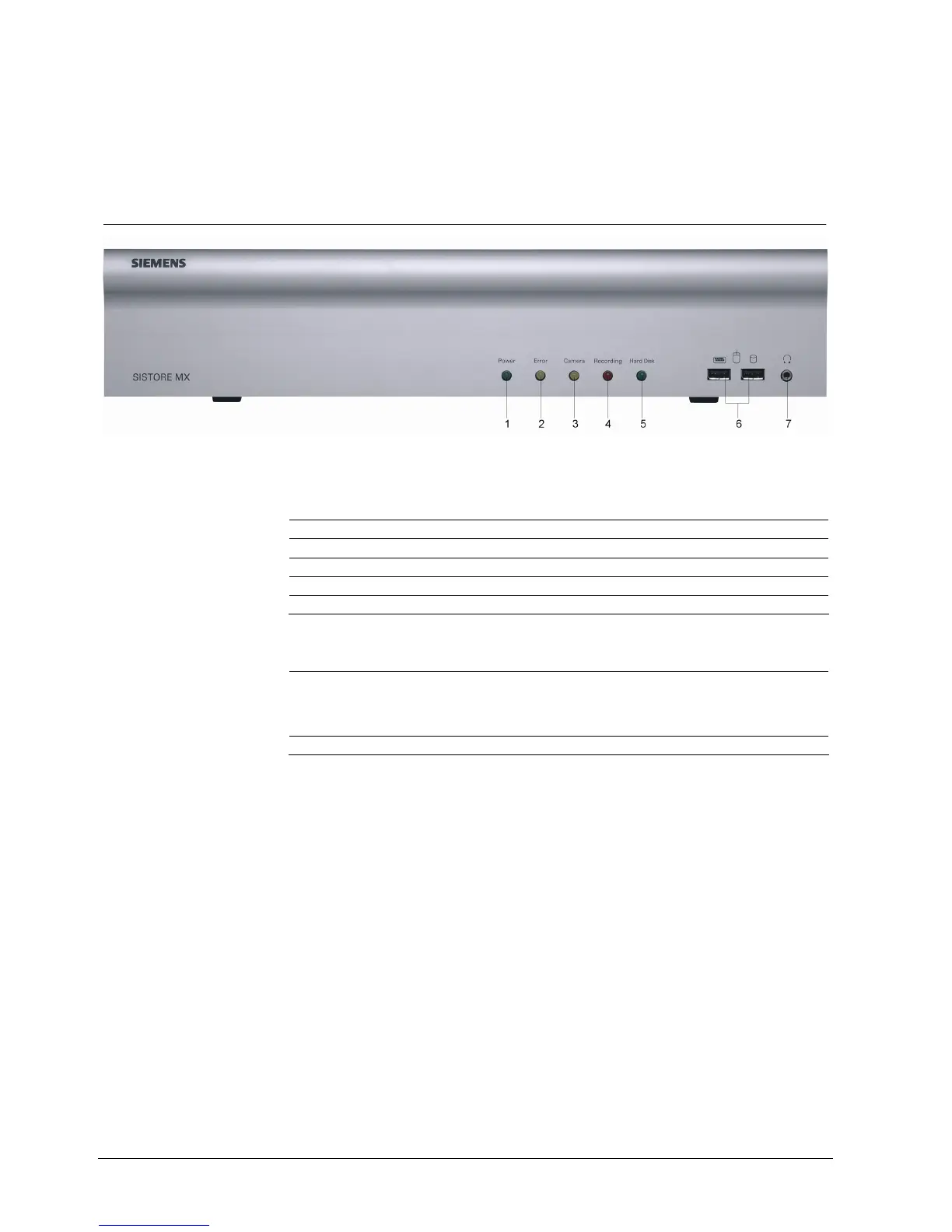

Fig. 1 Front side of SISTORE MX 3204 and SISTORE MX 3208 - 3232
LED displays on the front side of the device
1 Power Lit green: Power supply, unit in operation
2 Error Lit yellow: Error: Alarm, initializing, overheated
3 Camera Lit yellow: Loss of video
4 Recording Lit red: Recording
5 Hard disk Blinking green: Access to internal hard drive(s)
Connections on the front side of the device
6 USB Connection of 2 USB-enabled devices
(e.g. keyboard, mouse, backup hard drive, DVD burner)
Please note: The operation of external USB hard drives as a
memory expansion is not allowed for technical reasons.
7 Headphones Connection of headphones (without amplifier)
