Installation
26
Siemens Building Technologies
Fire Safety & Security Products 02.2009
8.3 Setting DIP switches (SISTORE MX / MX DVD)

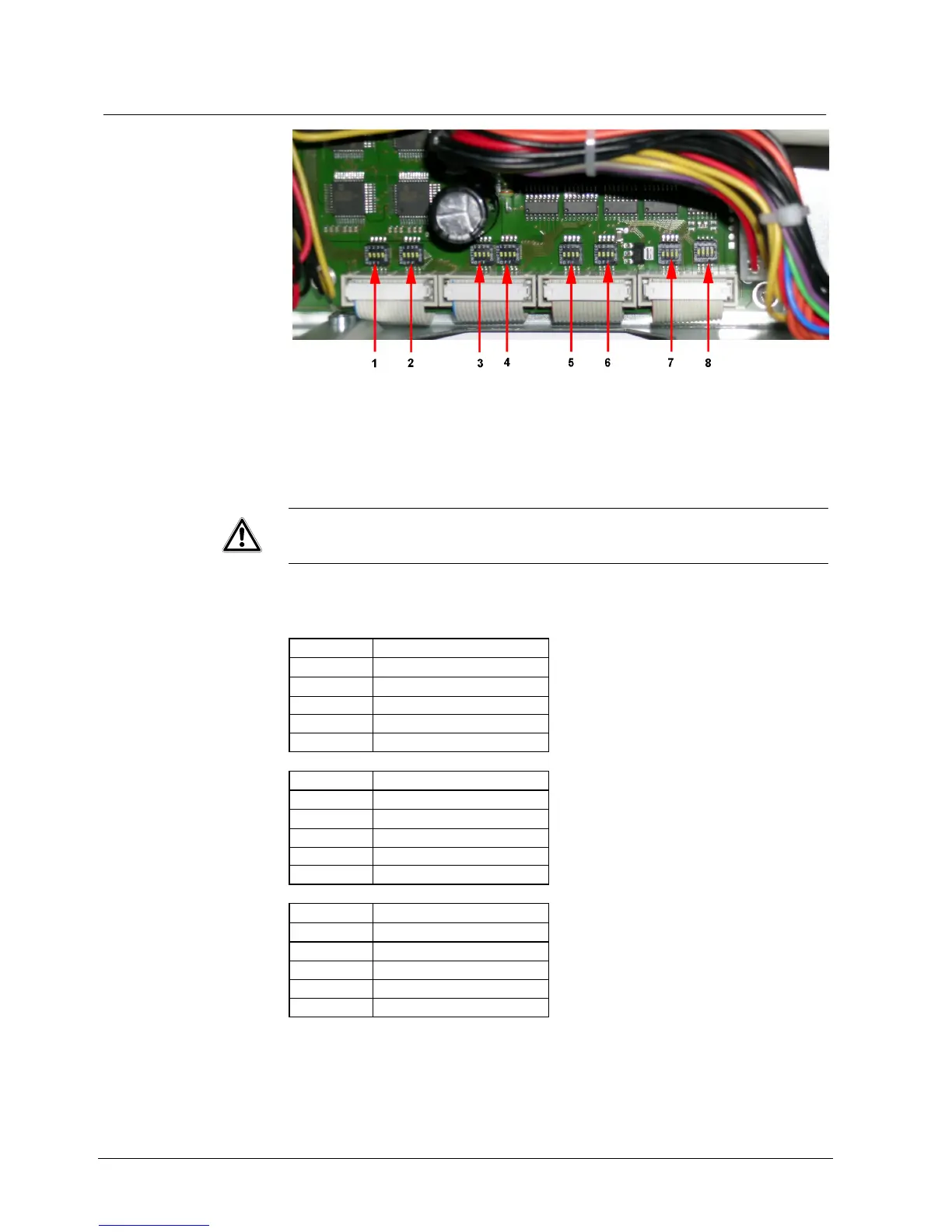

Fig. 11 DIP switches
All DIP switches are set to on by default, i.e. the video inputs are terminated with
75 Ohm.
If the signals are to be looped through the DIP switches must be set to off.
IMPORTANT
Malfunctioning of the SISTORE due to lack of termination
If the lines are not terminated correctly the image quality may deteriorate.
z Termination should always be made at the end of the line.
1 to 8 (75 Ohm termination)
1 75 Ohm termination
Dipsw Assignment
1 VIN13
2 VIN14
3 VIN15
4 VIN16
2 75 Ohm termination
Dipsw Assignment
1 VIN29
2 VIN30
3 VIN31
4 VIN32
3 75 Ohm termination
Dipsw Assignment
1 VIN9
2 VIN10
3 VIN11
4 VIN12
