Installation
30
Siemens Building Technologies
Fire Safety & Security Products 02.2009
CKA4810 interface configuration
z Protocol: SIMATRIX RS232 or SIEMENS IVM
z Baud rate: 9600
z Parity: None
8.4.1.2 SISTORE Remote View

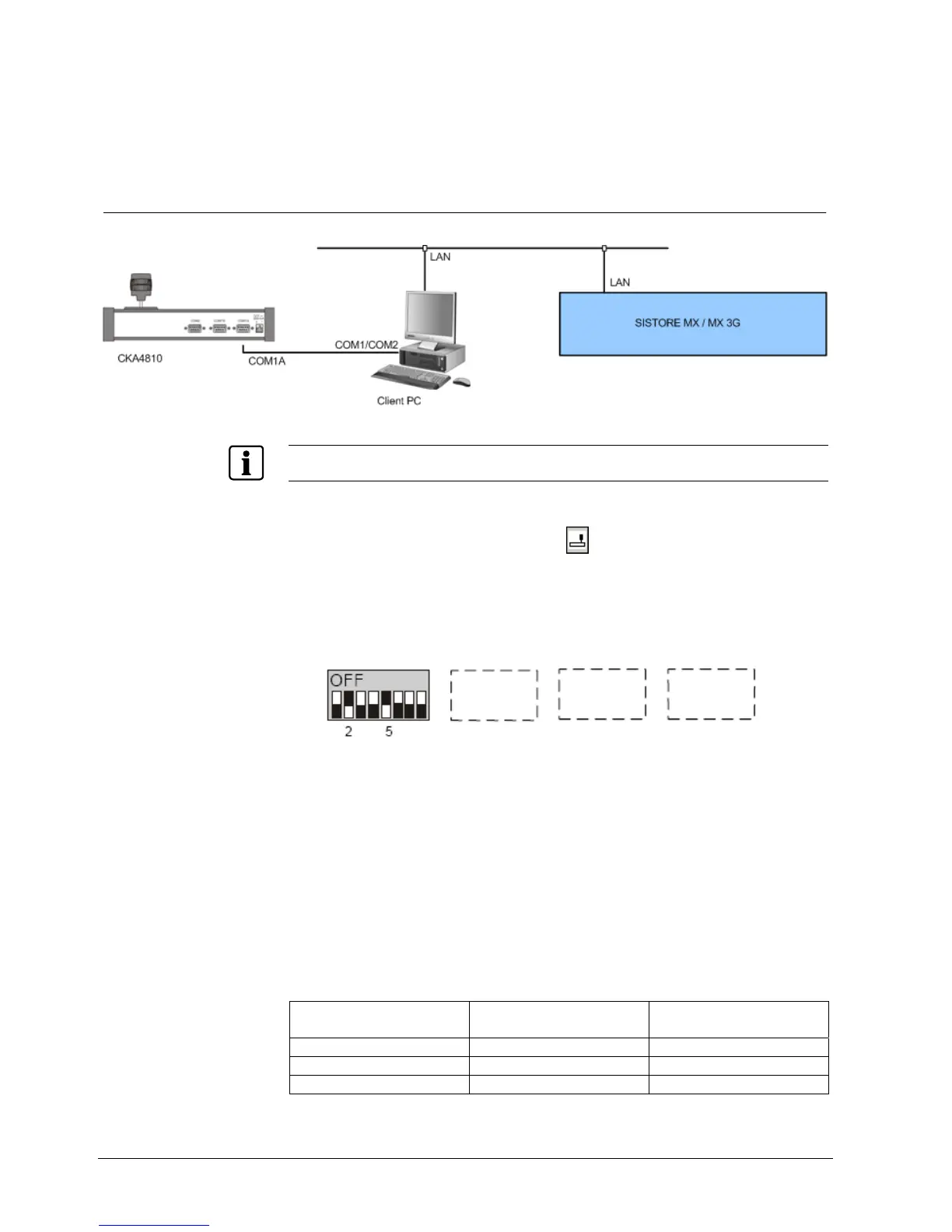

Fig. 14
TSISTORE RemoteViewT – TCKA4810 system overview
For a more detailed description of the connections please refer to Section
93H6 94HDescription of SISTORE
MX / MX DVD or Section
95H7 96HDescription of SISTORE MX 3G / MX 3G DVD.
Prerequisite:
z The CKA driver is installed and the icon is displayed in the task bar. See
Section
97H9.3 98HSubsequent installation of software components.
1. Connect the CKA4810 control panel to the client PC (see 99HFig. 14).
2. Configure the COM1A connection on the control panel for use as an RS232
interface.
Further information on this can be found in the instruction manuals for the
control panel CKA4810 and the converter.
3. Start the SISTORE RemoteView application software.
4. Switch to configuration mode.
5. Select the System tab.
6. Mark the checkbox
TCCTV keyboard. Further information on this can be found
in the SISTORE MX Configuration Manual.
7. Click Apply.
Î The interface for the control panel is enabled.
Connections
Signal Client PC
SISTORE RemoteView
CKA4810
9-pin Sub-D plug
GND 5 5
RXD 3 2
TXD 2 3
