6. Mark the checkbox TCCTV keyboard. Further information on this can be found
in the SISTORE MX Configuration Manual.
7. Click Apply.
Î The interface for the control panel is enabled.
Connections
Signal Client PC
SISTORE RemoteView
CKA4820
9-pin Sub-D plug
GND 5 5
RXD 3 2
TXD 2 3
CKA4820 interface configuration
z Protocol: SIMATRIX RS232 or SIEMENS IVM
z Baud rate: 9600
z Parity: None
8.4.3 Connecting the Multimedia Control Panel (SISTORE MX / RemoteView)
The Multimedia Control Panel (ShuttlePRO2, see Section 116H4 117HDetails for ordering118H) is not a product of
Siemens Building Technologies Fire & Security Products GmbH & Co. oHG. It can be ordered from
Contour Design Ltd. (www.contourdesign.com) (product name: ShuttlePRO2).
The Multimedia Control Panel has been integrated and tested with SISTORE MX. Siemens Building
Technologies Fire & Security Products GmbH & Co. oHG can however not guarantee fault-free
operation of the Multimedia Control Panels and does not provide any support. In case of problems
with the product, please contact the manufacturer (www.contourdesign.com).

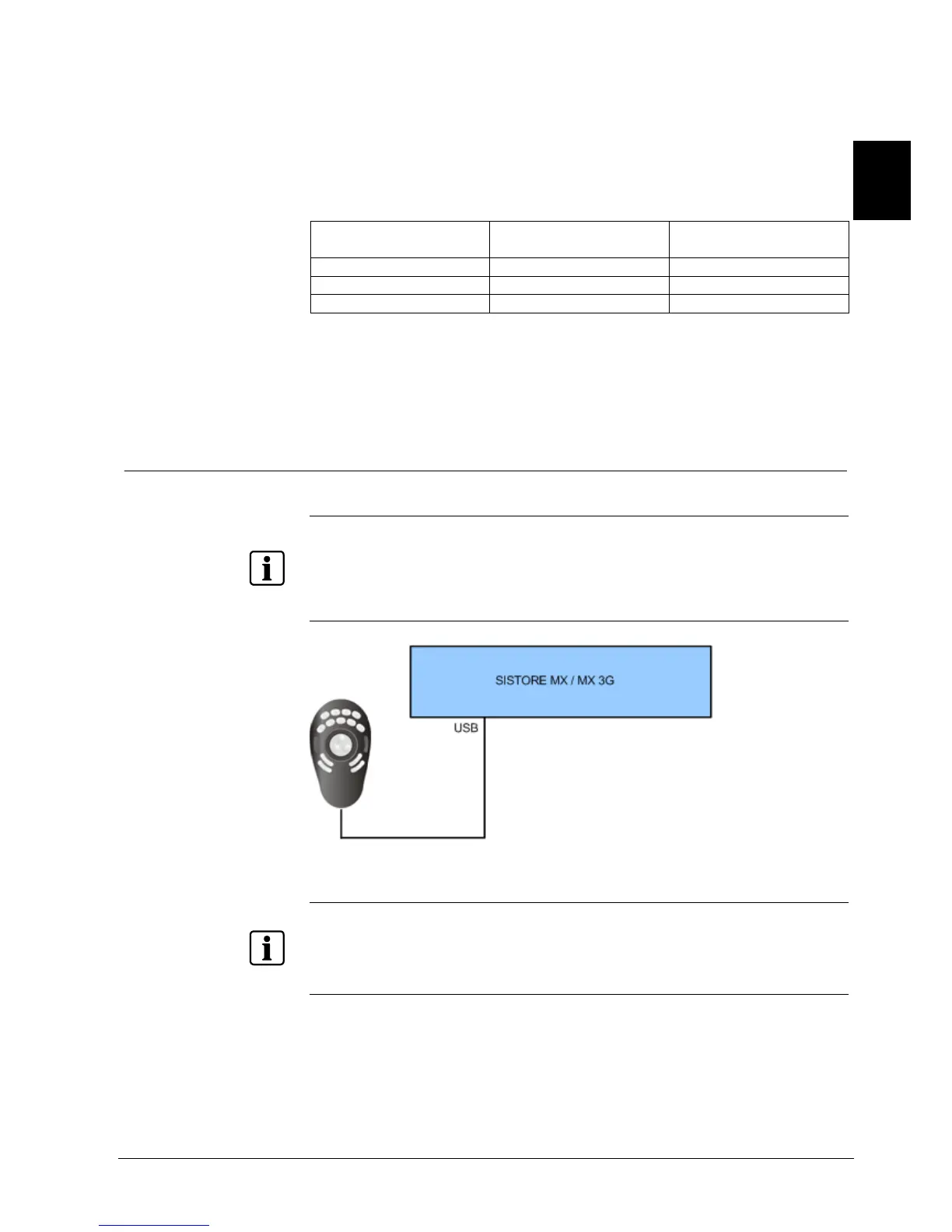

Fig. 17 SISTORE – Multimedia Control Panel system overview
To install the Multimedia Control Panel on a SISTORE without DVD drive, you must carry out the
following steps:
1. Copy the files on the accompanying CD onto an external USB storage medium.
2. Plug the storage medium into a USB port on the SISTORE.
3. Launch the file Autorun.exe from the USB storage medium.
4. Proceed with step 4 in subsection Installing the Multimedia Control Panel.
