Installation
32
Siemens Building Technologies
Fire Safety & Security Products 02.2009
Connections
Signal SISTORE unit
9-pin Sub-D socket
CKA4820
9-pin Sub-D plug
A (Rx/Tx +) 2 5
B (Rx/Tx -) 3 9
GND 5 6
CKA4820 interface configuration
z Protocol: SIMATRIX RS232 or SIEMENS IVM
z Baud rate: 9600
z Parity: None
If you want to connect the CKA4820 control panel to a SISTORE via the internal COM1A interface,
install the RS-232C/RS-485 interface converter into the connection line. See Section
107H8.4.1 108HConnecting
control panel CKA4810.
8.4.2.2 SISTORE Remote View

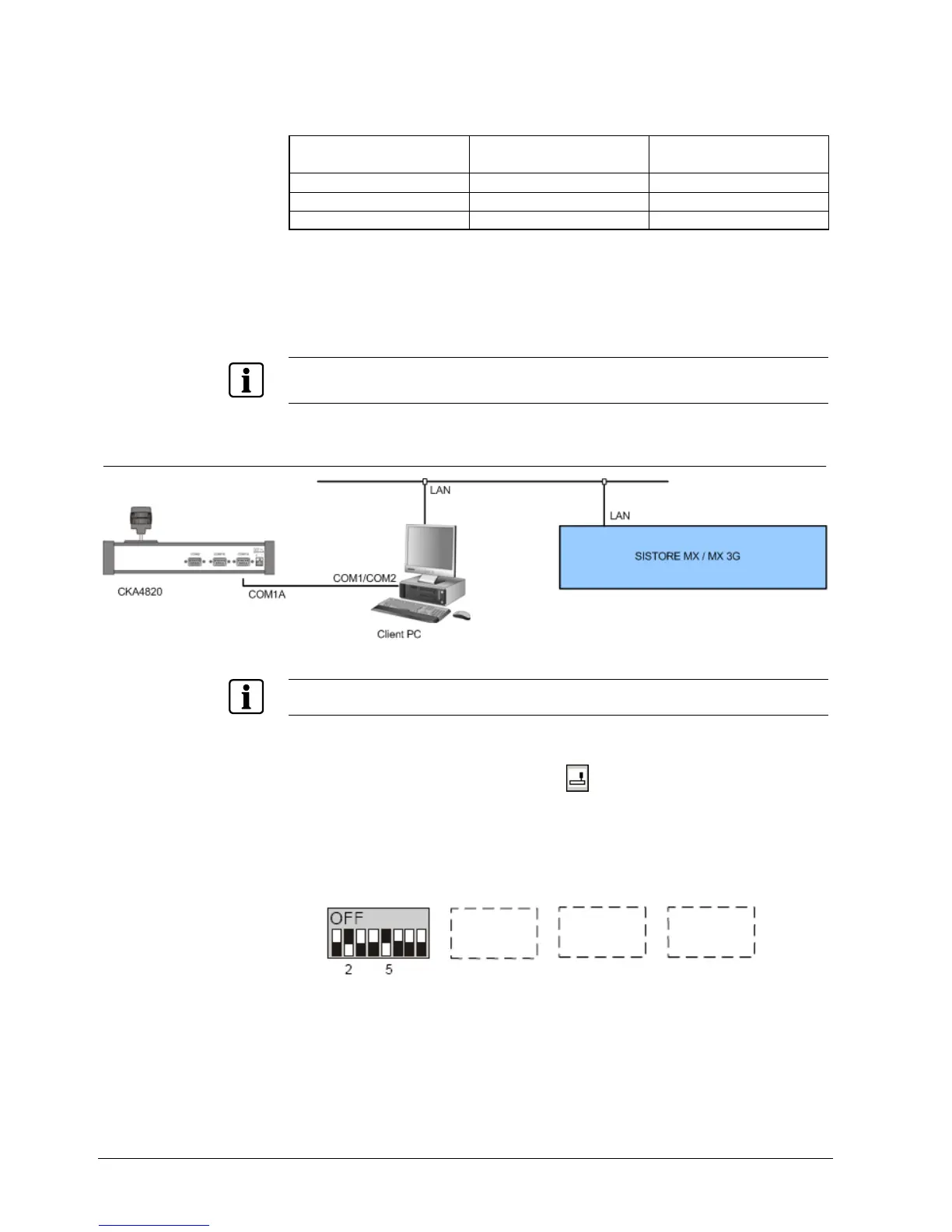

Fig. 16
TSISTORE RemoteViewT – TCKA4820 system overview
For a more detailed description of the connections please refer to Section
109H6 110HDescription of SISTORE
MX / MX DVD or Section
111H7 112HDescription of SISTORE MX 3G / MX 3G DVD.
Prerequisite:
z The CKA driver is installed and the icon is displayed in the task bar. See
Section
113H9.3 114HSubsequent installation of software components.
1. Connect the CKA4820 control panel to the client PC (see 115HFig. 16).
2. Configure the COM1A connection on the control panel for use as an RS232
interface.
Further information on this can be found in the instruction manual for the
control panel.
3. Start the SISTORE RemoteView application software.
4. Switch to configuration mode.
5. Select the System tab.
