Installation
41
Siemens Building Technologies
Fire Safety & Security Products 02.2009
EN
8.4.5 Connecting the CCDA1425 dome camera

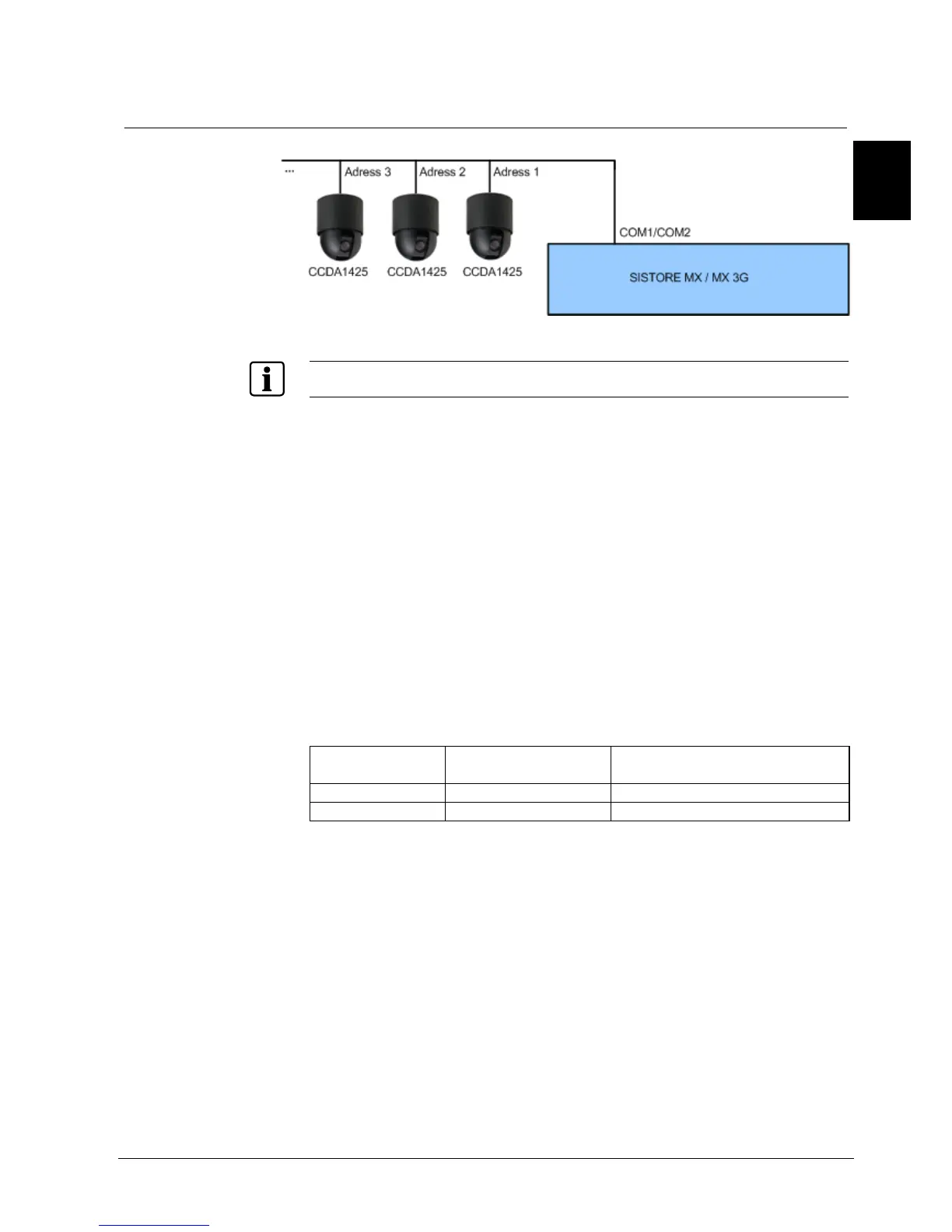

Fig. 21 CCDA1425 dome camera – system overview
For a more detailed description of the connections please refer to Section
129H6 130HDescription of SISTORE
MX / MX DVD or Section
131H7 132HDescription of SISTORE MX 3G / MX 3G DVD.
1. Connect the dome cameras to the SISTORE (see 133HFig. 21). Further
information on this can be found in the instruction manual for the dome
camera.
2. Start the SISTORE MX application software.
3. Switch to configuration mode.
4. Mark the checkbox PTZ in the Cameras tab
5. Choose the camera type from the first list box.
6. Choose the interface from the second list box.
7. Click Apply.
Î The interface for the dome camera is enabled.
Further information on this can be found in the SISTORE MX Configuration
Manual.
Connections
Signal SISTORE unit
9-pin Sub-D socket
CCDA1425
A (Rx/Tx +) 2 Data +
B (Rx/Tx -) 3 Data -
CCDA1425 interface configuration
z Baud rate: 9600
z Parity: None
z Dome CCDA1425
