7 Description of SISTORE MX 3G / MX 3G DVD
7.1 Connections und displays on the front side of the device

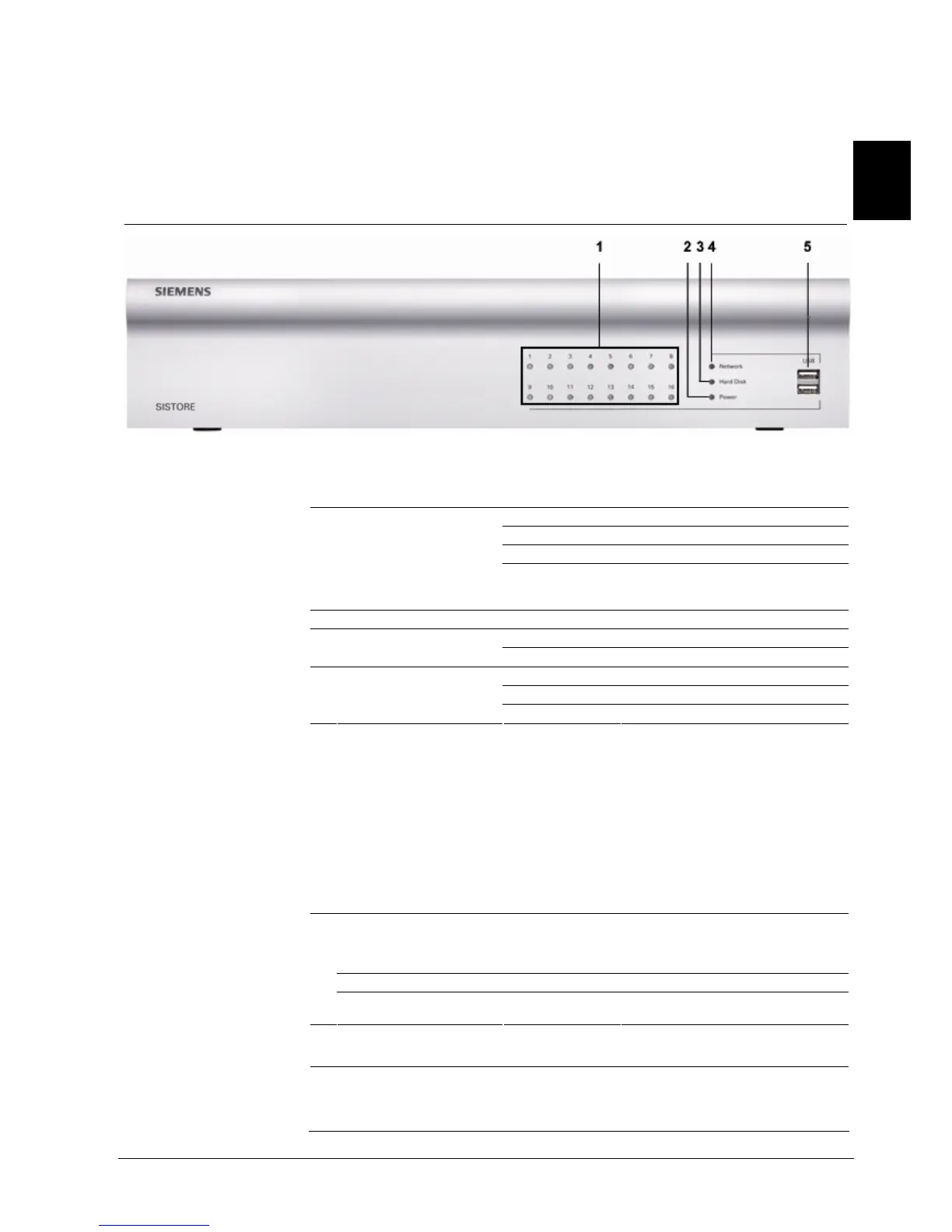

Fig. 6 Front side of SISTORE MX 3G / MX 3G DVD
LED indicators when the device is switched on
Lit green: Receiving camera signal
Lit orange: Recording
Lit red: Alarm, motion detected
1 Video inputs 1 – 16
No indicator: No camera connected,
SISTORE MX software has not been
started
2 Power Lit green: Power supply, unit in operation
Blinking green: Access to internal hard drive(s) 3 Hard disk
No indicator: No access to internal hard drive(s)
Lit green: Connected to the network
Blinking green: Data transmission
4 Network
No indicator: No connection to the network
LED indication when the temperature is too high or too low
When the operating temperature of the unit exceeds or falls below a specific
threshold, the unit will shut down automatically and switch to waiting mode. At the
end of the waiting time (6 min.), the temperature is measured again. If the
temperature is back to normal, the unit will be restarted automatically. If the
temperature is still too high or too low, the unit cannot be restarted yet. It will
however be in stand-by mode and be restarted as soon as the temperature is back
to normal.
LEDs 1 and 2 LED 1 flashing red
and orange
alternately,
LED 2 flashing red
Unit is in waiting mode.
LED 8 Lit green: Unit is in stand-by mode.
1
LEDs 1 and 2 Lit red: Operating temperature still too high/low at
the end of the waiting time.
Connections
5 USB Connection of 2 USB-enabled devices
(e.g. keyboard, mouse, backup hard drive, DVD burner)
Please note: The operation of external USB hard drives as a
memory expansion is not allowed for technical reasons.
