Installation
44
Siemens Building Technologies
Fire Safety & Security Products 02.2009
8.4.8 Connecting pan-and-tilt unit CDD2410

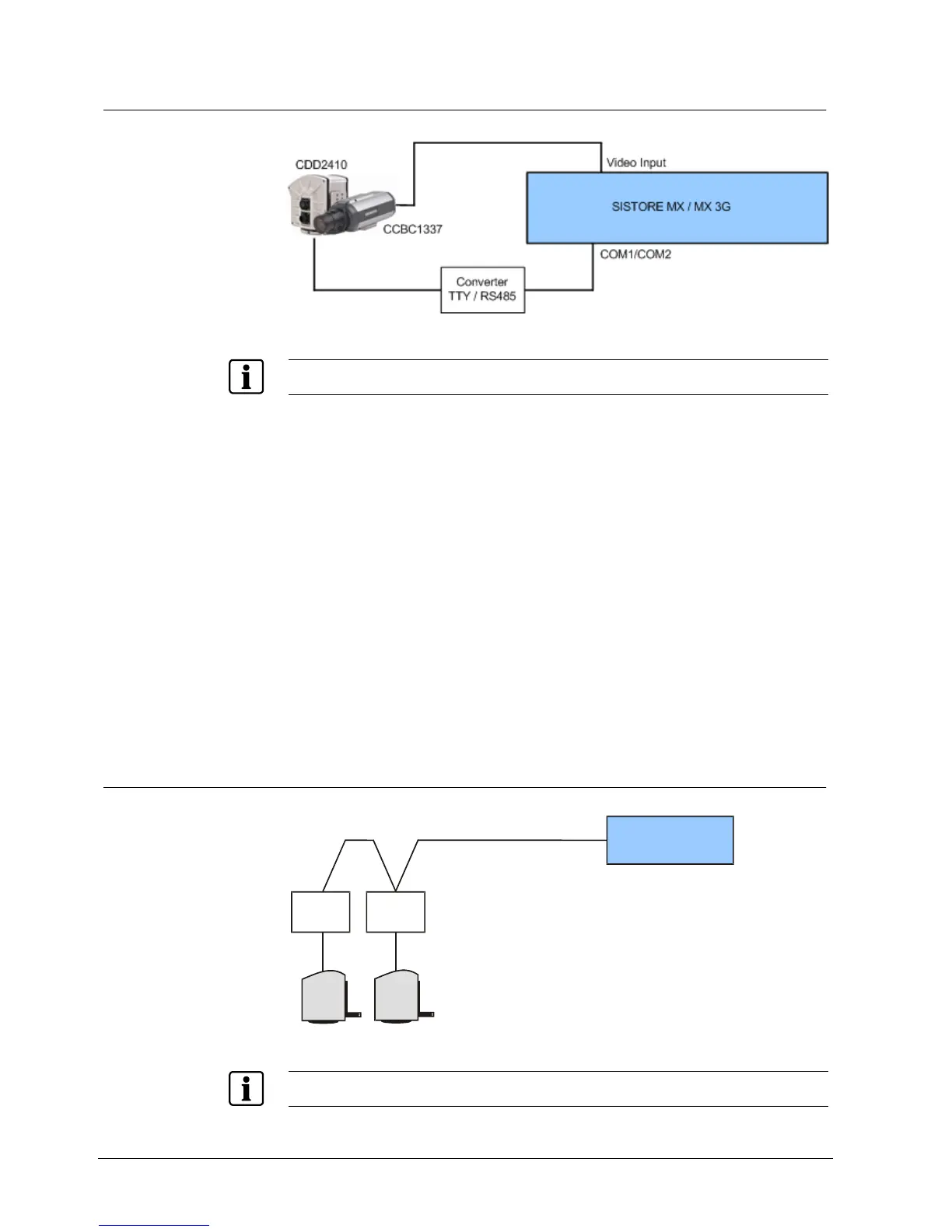

Fig. 24 Pan/tilt drive CDD2410 system overview
For a more detailed description of the connections please refer to Section
147H6 148HDescription of SISTORE
MX / MX DVD or Section
149H7 150HDescription of SISTORE MX 3G / MX 3G DVD.
1. Connect the pan-and-tilt unit to the SISTORE (see 151HFig. 24).
2. Connect the camera to the SISTORE (see
152HFig. 24).
Further information on this can be found in the instruction manuals for the
pan-and-tilt unit, the converter and the camera.
3. Start the SISTORE MX application software.
4. Switch to configuration mode.
5. Select the Cameras tab.
6. Mark the checkbox PTZ.
7. Choose the camera type from the first list box.
8. Choose the interface from the second list box.
9. Click Apply.
Î The interface for the camera is enabled.
Further information on this can be found in the SISTORE MX Configuration
Manual.
8.4.9 Connecting SCU pan-and-tilt unit PT40P via controller CDC050x
SISTORE MX / MX 3G
RS485
CDC0501/
CDC0502
CDC0501/
CDC0502
Fig. 25 Controller CDC050x – system overview
For a more detailed description of the connections please refer to Section
153H6 154HDescription of SISTORE
MX / MX DVD or Section
155H7 156HDescription of SISTORE MX 3G / MX 3G DVD.
