Installation
43
Siemens Building Technologies
Fire Safety & Security Products 02.2009
EN
Connections
Signal SISTORE unit
9-pin Sub-D socket
CCDA1435
A (Rx/Tx +) 2 Data +
B (Rx/Tx -) 3 Data -
CCDA1435 interface configuration
z Baud rate: 9600
z Parity: None
8.4.7 Connecting pan-and-tilt unit PT40

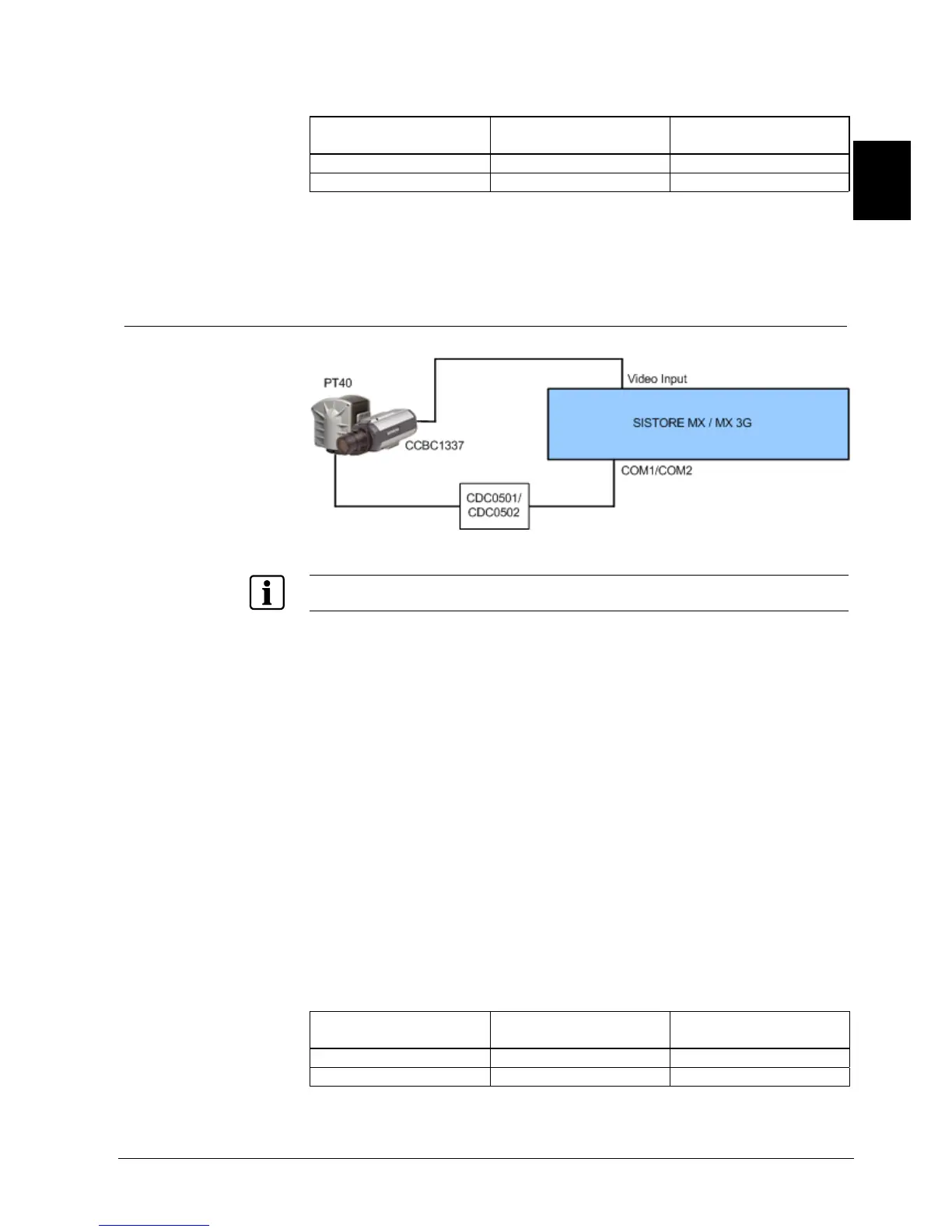

Fig. 23 Pan-and-tilt unit PT40 – system overview
For a more detailed description of the connections please refer to Section
141H6 142HDescription of SISTORE
MX / MX DVD or Section
143H7 144HDescription of SISTORE MX 3G / MX 3G DVD.
1. Connect the pan-and-tilt unit to the SISTORE (see 145HFig. 23).
2. Connect the camera to the SISTORE (see
146HFig. 23).
Further information on this can be found in the instruction manuals for the
pan-and-tilt unit, the control unit and the camera.
3. Start the SISTORE MX application software.
4. Switch to configuration mode.
5. Select the Cameras tab.
6. Mark the checkbox PTZ.
7. Choose the camera type from the first list box.
8. Choose the interface from the second list box.
9. Click Apply.
Î The interface for the camera is enabled.
Further information on this can be found in the SISTORE MX Configuration
Manual.
Connections
Signal SISTORE unit
9-pin Sub-D socket
CDC0501/0502 (J6)
A (Rx/Tx +) 2 Rx/Tx +
B (Rx/Tx -) 3 Rx/Tx -
