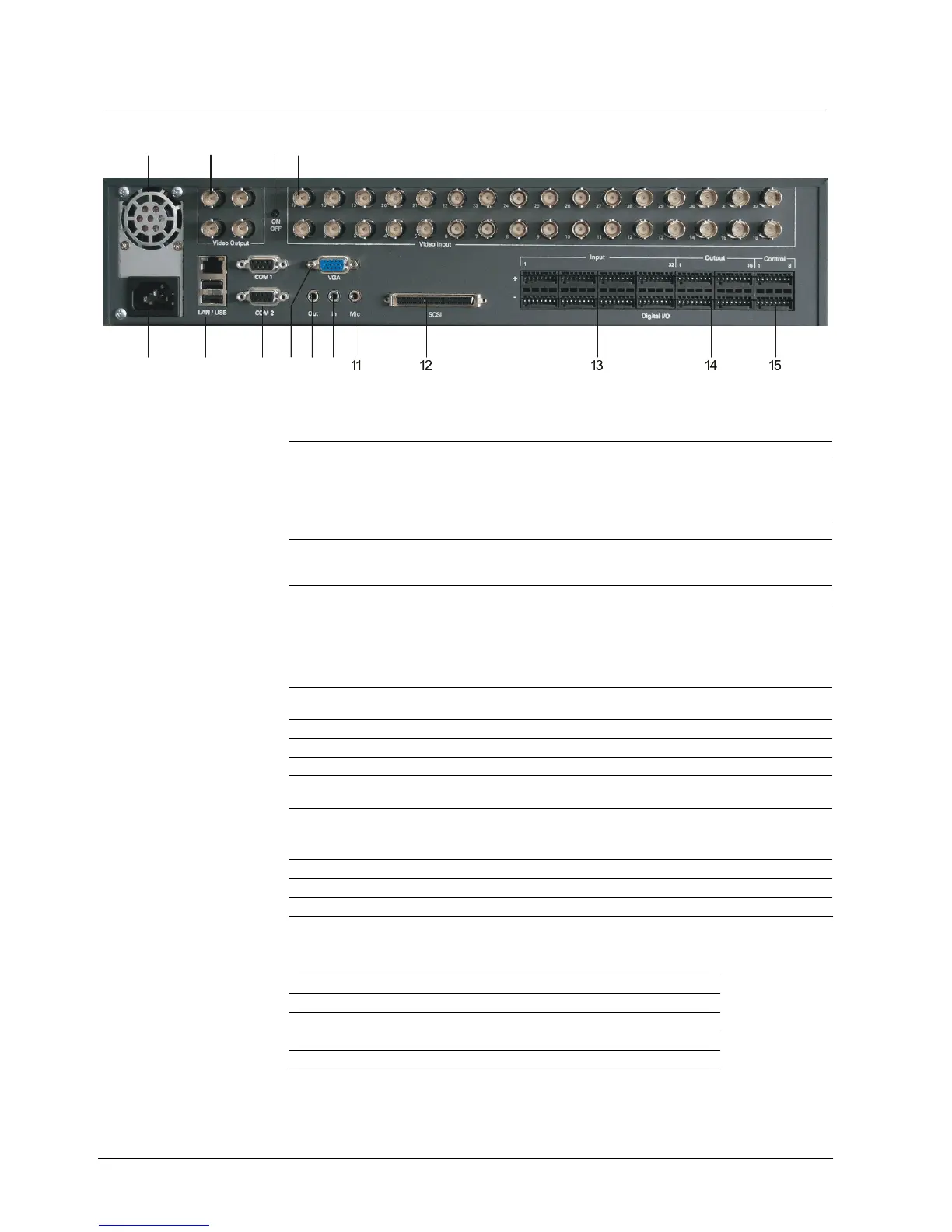

Fig. 3 Back side of SISTORE MX 3208 - 3232
1 Fan
2 Video output 4 video outputs, 50 Hz/60 Hz
Connect the same type of unit here as that on the video inputs (PAL, for
example), since otherwise it is not possible to operate the video
outputs.
3 ON / OFF Switching the unit on and off
4 Video input 32 video connection jacks
Depending on the model and licence file, up to
32 cameras can be connected.
5 Power supply 100 – 230 V AC, 50 – 60 Hz, 120 W
6 LAN/USB LAN: connection of a LAN cable (RJ45 network cable)
USB: Connection of 2 USB-enabled devices
(e.g. USB-ISDN modem, printer, mouse, keyboard, DVD burner)
Please note: The operation of external USB hard drives as a memory
expansion is not allowed for technical reasons.
7 COM 1/COM 2
RS485
Connection for control of pan/tilt cameras, CKA48xx control panel or
MX multichannel box
8 VGA For connecting a monitor, e.g. CTMC 15/17/19
9 L-out Connection of commercially available speakers or headphones
10 L-in Connection of audio sources
11 MIC Connection of a microphone for voice recording
(such as a standard microphone sold as a commercial PC accessory)
12 SCSI For connection of SCSI RAID system, e.g. SISTORE RAID
Connection: HD68
Standard: Ultra Wide SCSI, Single End Mode
13 Digital I/O input Trigger inputs 1 … 32
14 Digital I/O output Digital outputs 1 … 16
15 Digital I/O control Digital inputs 1 ... 8
RS-485 socket RS-485 socket
PIN 1: NC PIN 6: NC
PIN 2: A (TX+/RX+) PIN 7: NC
PIN 3: B (TX-/RX-) PIN 8: NC
PIN 4: NC PIN 9: NC
PIN 5: GND
