Installation
31
Siemens Building Technologies
Fire Safety & Security Products 02.2009
EN
CKA4810 interface configuration
z Protocol: SIMATRIX RS232 or SIEMENS IVM
z Baud rate: 9600
z Parity: None
8.4.2 Connecting control panel CKA4820
8.4.2.1 SISTORE unit

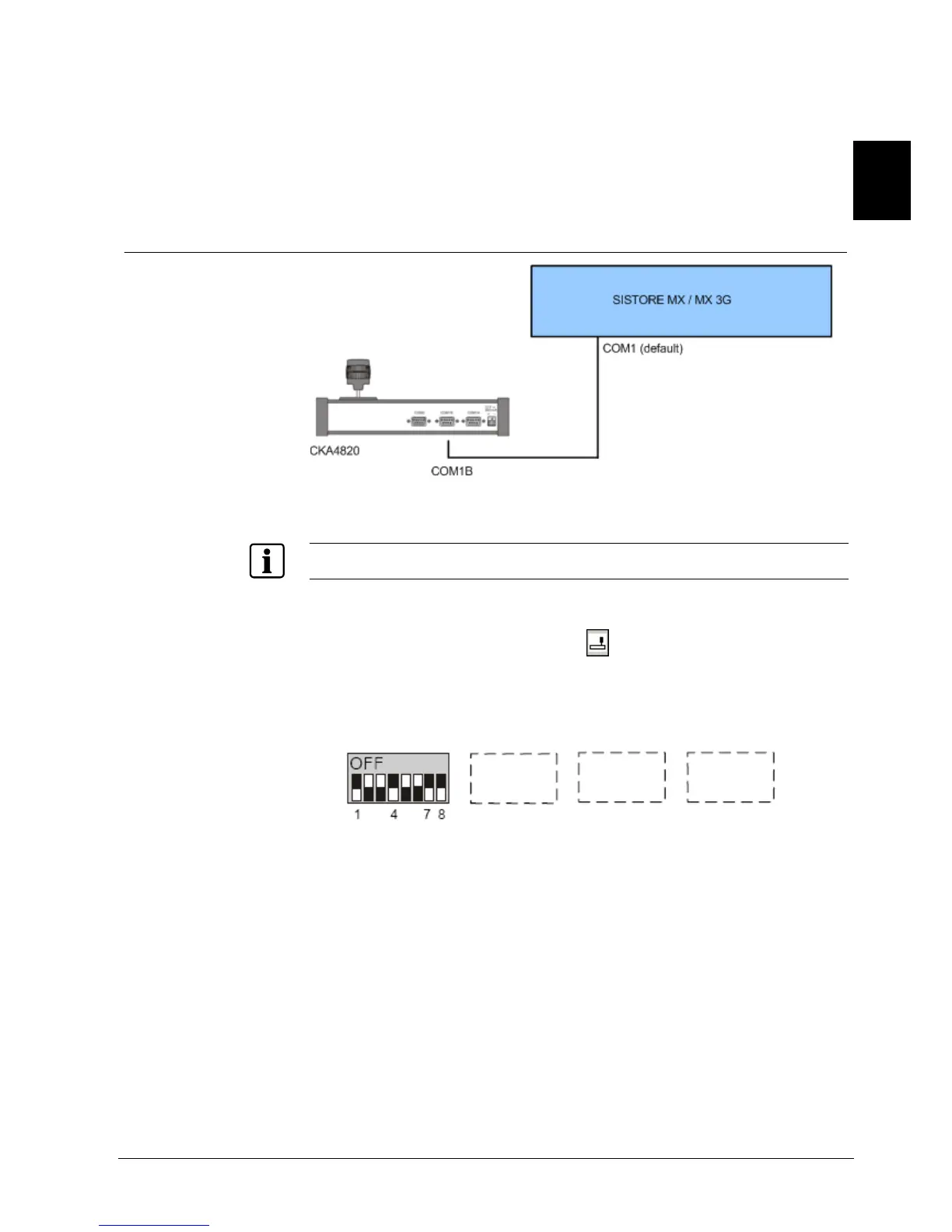

Fig. 15 SISTORE MX – CKA4820 system overview
For a more detailed description of the connections please refer to Section
100H6 101HDescription of SISTORE
MX / MX DVD or Section
102H7 103HDescription of SISTORE MX 3G / MX 3G DVD.
Prerequisite:
z The CKA driver is installed and the icon is displayed in the task bar. See
Section
104H9.3 105HSubsequent installation of software components.
1. Connect the CKA4820 control panel to the SISTORE (see 106HFig. 15).
2. Configure COM1B on the control panel as an RS485 interface.
Further information on this can be found in the instruction manual for the
control panel.
3. Start the SISTORE MX application software.
4. Switch to configuration mode.
5. Select the System tab.
6. Mark the checkbox CCTV keyboard. Further information on this can be found
in the SISTORE MX Configuration Manual.
7. Click Apply.
Î The interface for the control panel is enabled.
