Installation
48
Siemens Building Technologies
Fire Safety & Security Products 02.2009
8.4.12 Connecting Miniter interface and access reader

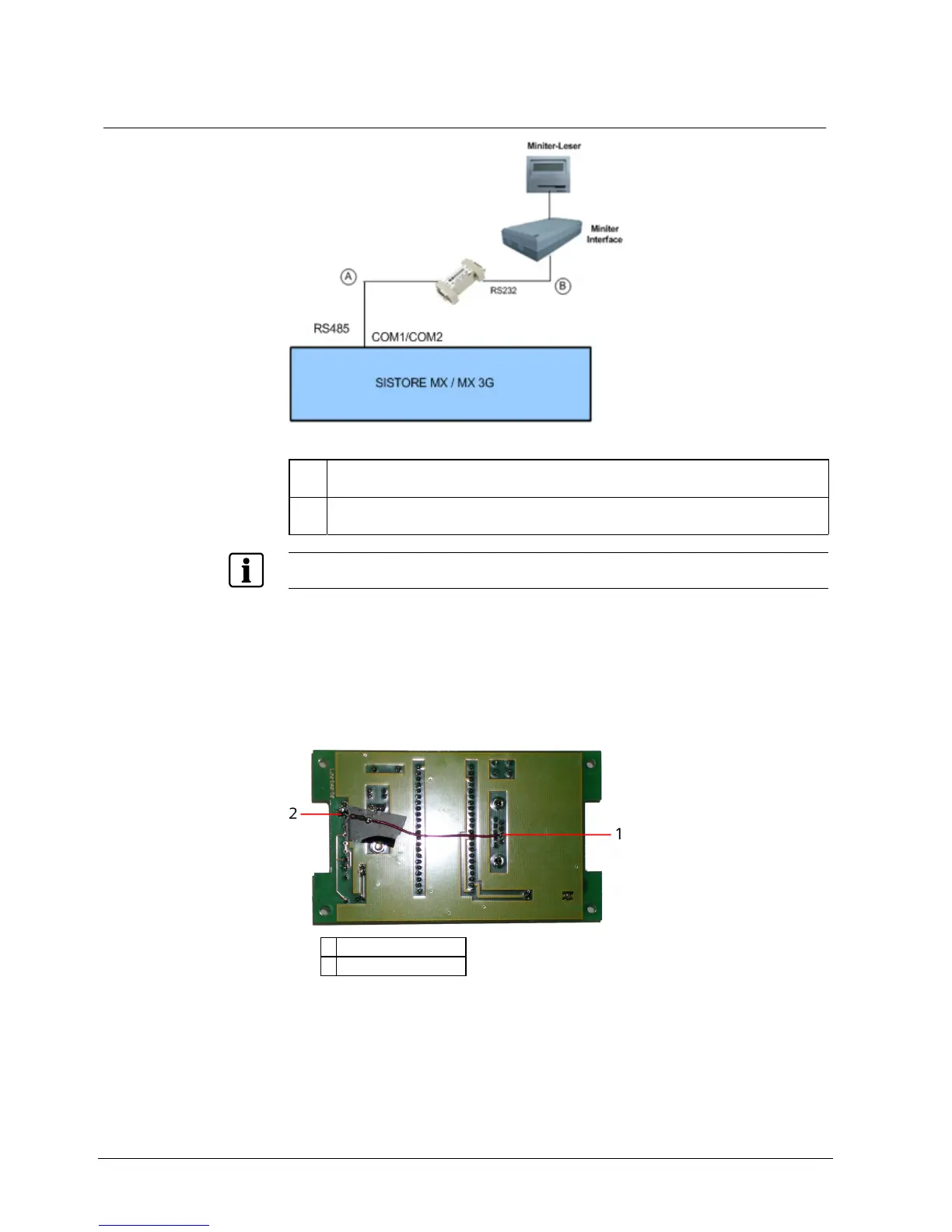

Fig. 29 System overview: SISTORE MX – interface und access reader (Miniter)
A Cable (9-pin), plug-plug
2-3, 3-2
B Null-modem cable (9-pin), plug-plug
2-3, 3-2, 4-6, 5-5, 6-4, 7-8, 8-7
For a more detailed description of the connections please refer to Section
173H6 174HDescription of SISTORE
MX / MX DVD or Section
175H7 176HDescription of SISTORE MX 3G / MX 3G DVD.
1. Connect the interface to the SISTORE (see 177HFig. 29).
For this you require the converter 485SD9R (B&B), a 9-pin cable, Sub-D,
plug-plug, connections 2–3, 3–2, and a null-modem cable, Sub-D, plug-plug,
connections 2–3, 3–2, 4–6, 5–5, 6–4, 7–8, 8–7.
2. Connect pin 7 of the Sub-D connector through an 81-Ohm resistor to 12 V.
See the figure below:
1 Pin 7
2 +12 V
3. Connect the access reader (Miniter) to the interface.
4. Start the SISTORE MX application software.
5. Switch to configuration mode.
6. Select the System tab.
7. Mark the checkboxes Bank mode and Cash dispenser.
8. Click Apply.
