Installation
47
Siemens Building Technologies
Fire Safety & Security Products 02.2009
EN
8.4.11.2 Connecting Kebin access readers

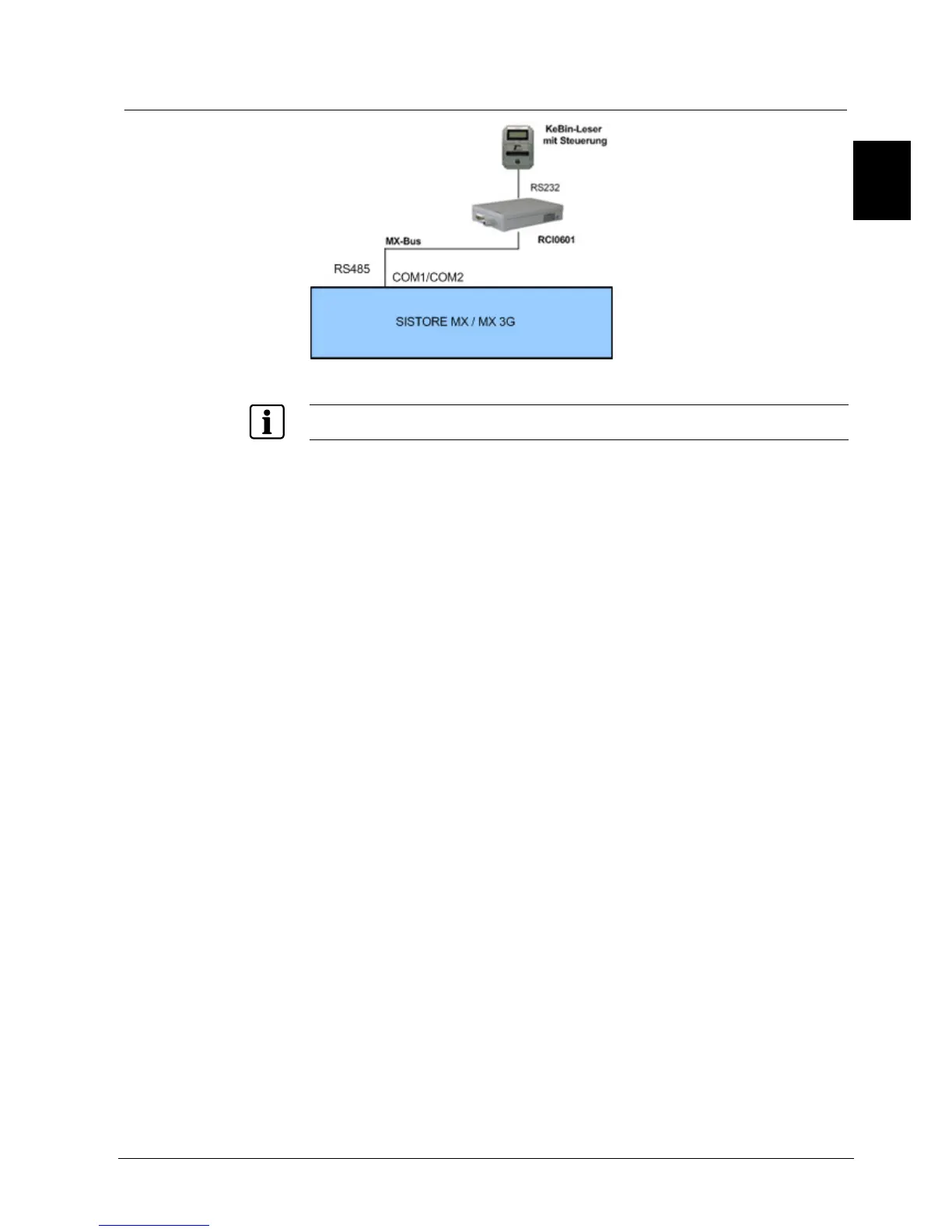

Fig. 28 MX Multi-Channel Box RCI 0601 and access reader – system overview
For a more detailed description of the connections please refer to Section
168H6 169HDescription of SISTORE
MX / MX DVD or Section
170H7 171HDescription of SISTORE MX 3G / MX 3G DVD.
1. Connect the MX Multi-Channel Box to the SISTORE (see 172HFig. 28).
2. Connect the access reader to the MX Multi-Channel Box RCI 0601.
Further information on this can be found in the user manual for the MX Multi-
Channel Box RCI 0601.
3. Start the SISTORE MX application software.
4. Switch to configuration mode.
5. Select the System tab.
6. Mark the checkboxes Bank mode and Cash dispenser.
7. Click Apply.
Î The settings will be saved.
8. Restart the software.
9. Make the appropriate settings in the Banking tab. Further information on this
can be found in the SISTORE MX Configuration Manual.
