8.4 Examples of system design
The following figure shows a possible system configuration with one SISTORE
unit. For further specific examples please refer to the following chapters.

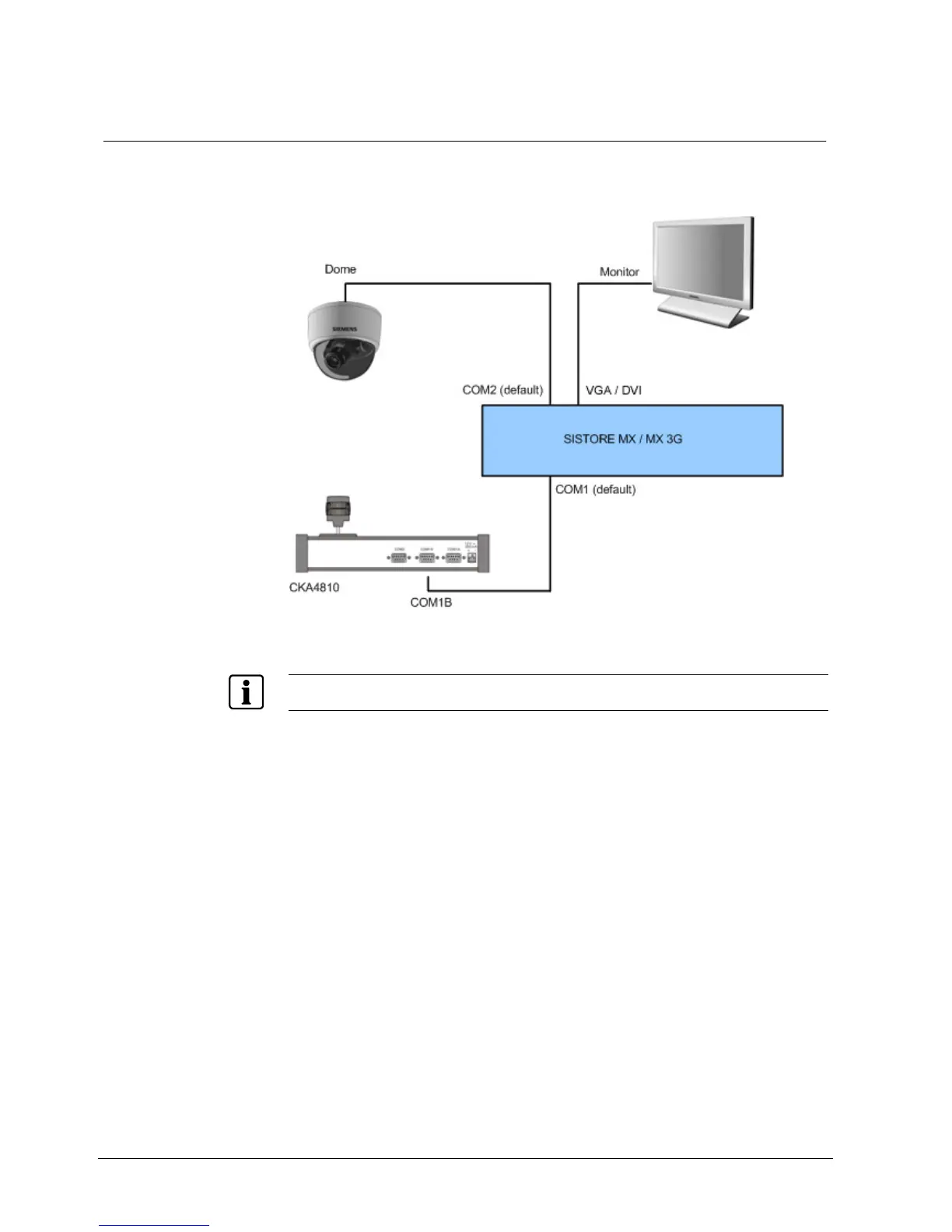

Fig. 12 System overview with SISTORE unit
For a more detailed description of the connections please refer to Section
79H6 80HDescription of SISTORE
MX / MX DVD or Section
81H7 82HDescription of SISTORE MX 3G / MX 3G DVD.
