Software (SISTORE RemoteView
58
Siemens Building Technologies
Fire Safety & Security Products
02.2009
Î

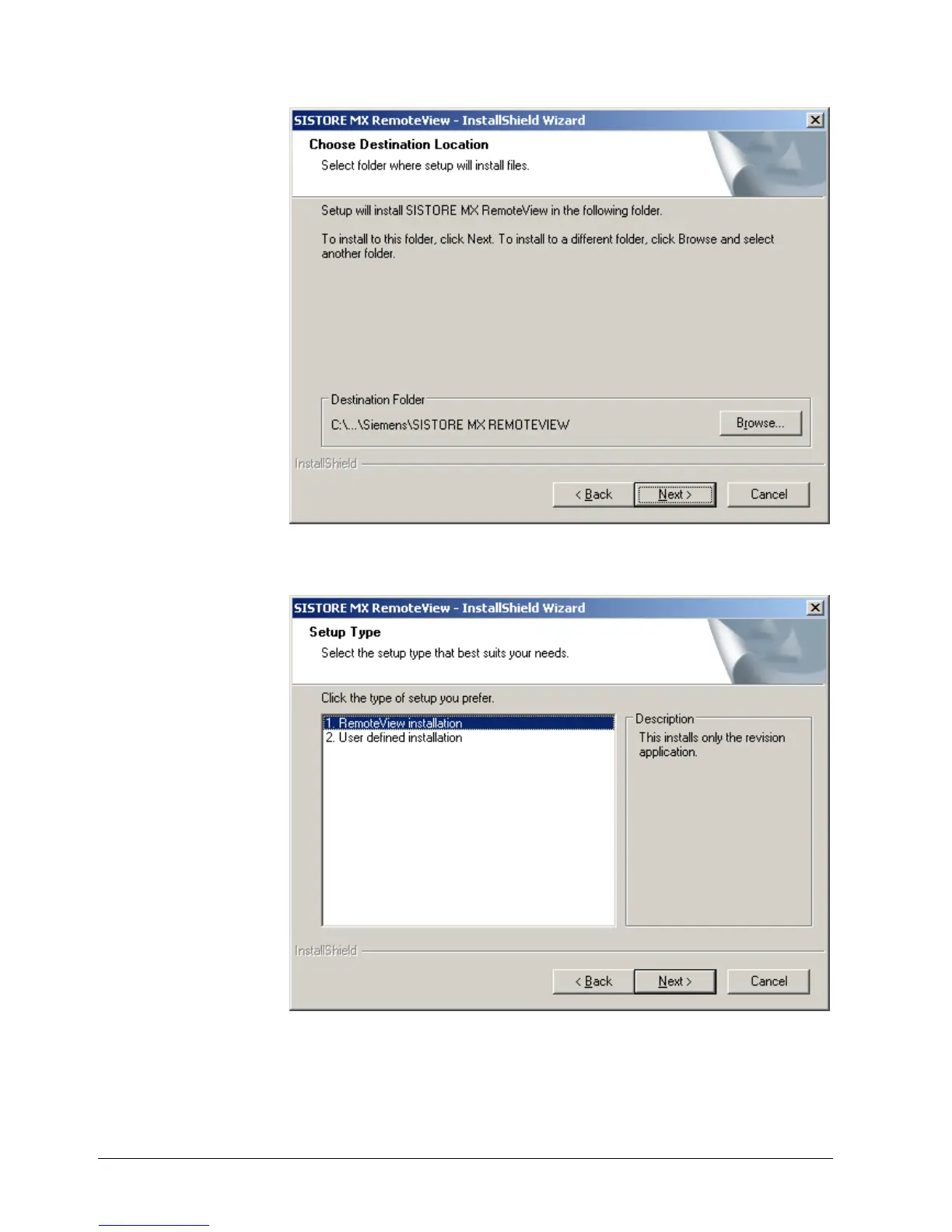

The following dialog box opens.
4.
Click
Next
.
Î
The following
dialog box opens.
5.
Select
Remo
teView
and click
Next
.
Î
The
Select
program folde
r
dialog box opens.
6.
Do not chang
e the destination folder. Click
Next
.
57
59
Table of Contents
Default Chapter
2
About this Document
2
Table of Contents
3
1 Safety
5
Target Readers
5
Work Safety Information
5
Transport
5
Installation
5
Service and Maintenance
6
Meaning of the Written Warning Notices
6
Meaning of the Hazard Symbols
6
2 EU Directives
7
3 Technical Data
8
Sistore MX / MX DVD
8
Sistore MX 3G / MX 3G DVD
10
4 Details for Ordering
12
Sistore MX / MX DVD
12
Sistore MX 3G / MX 3G DVD
14
5 Package Contents
15
6 Description of SISTORE MX / MX DVD
16
Connections und Displays on the Front Side of the Device
16
Connections on the Back of the Device
17
Sistore MX 3204
17
Sistore MX 3208 - 3232
18
Trigger and Digital Inputs
19
Digital Outputs
19
Behaviour with Overheating
20
7 Description of SISTORE MX 3G / MX 3G DVD
21
Connections und Displays on the Front Side of the Device
21
Connections on the Back of the Device
22
Trigger and Digital Inputs
23
Digital Outputs
23
8 Installation
24
Rack Installation
24
Tabletop Operation
25
Setting DIP Switches (SISTORE MX / MX DVD)
26
Examples of System Design
28
Connecting Control Panel CKA4810
29
SISTORE Unit
29
SISTORE Remote View
30
Connecting Control Panel CKA4820
31
SISTORE Unit
31
SISTORE Remote View
32
Connecting the Multimedia Control Panel (SISTORE MX / Remoteview)
33
Connecting the Siemens LAN Camera Ccix1345
40
Connecting the CCDA1425 Dome Camera
41
Connecting the CCDA1435 Dome Camera
42
Connecting Pan-And-Tilt Unit PT40
43
Connecting Pan-And-Tilt Unit CDD2410
44
Connecting SCU Pan-And-Tilt Unit PT40P Via Controller Cdc050X
44
Connecting SCU Pan-And-Tilt Unit Via Controller CDCD2417
45
Connecting the MX Multi-Channel Box RCI 0601
46
Connecting Cash Dispensers
46
Connecting Kebin Access Readers
47
Connecting Miniter Interface and Access Reader
48
Connecting Cash Box Systems
49
SISTORE Unit - CKA4820 - SISTORE Remoteview - LAN Cameras
50
9 Software (SISTORE Unit)
52
Software Operation Using the Virtual Keyboard
52
Updating or Repairing Software
53
Subsequent Installation of Software Components
54
10 Software
56
System Requirements
56
Installing SISTORE Remoteview
57
Updating SISTORE Remoteview
59
Subsequent Installation of Software Components
60
11 System Limits
60
12 Disposal
60
