Display mode functions
42
Siemens Building Technologies
Fire Safety & Security Products 01.2008
10.12 Site plan
10.12.1 Display modes
Single-monitor mode
1. Click the button
Show map in the toolbar.
Î The display window is split horizontally.
In the top section, 1 large and 4 small windows are displayed. In the bottom
section, the site plan is displayed as configured (see
Fig. 20).
This splitting of the screen is predefined and cannot be changed.
NOTE
The event view window (1) can be opened at any time by clicking the button
Show event window.

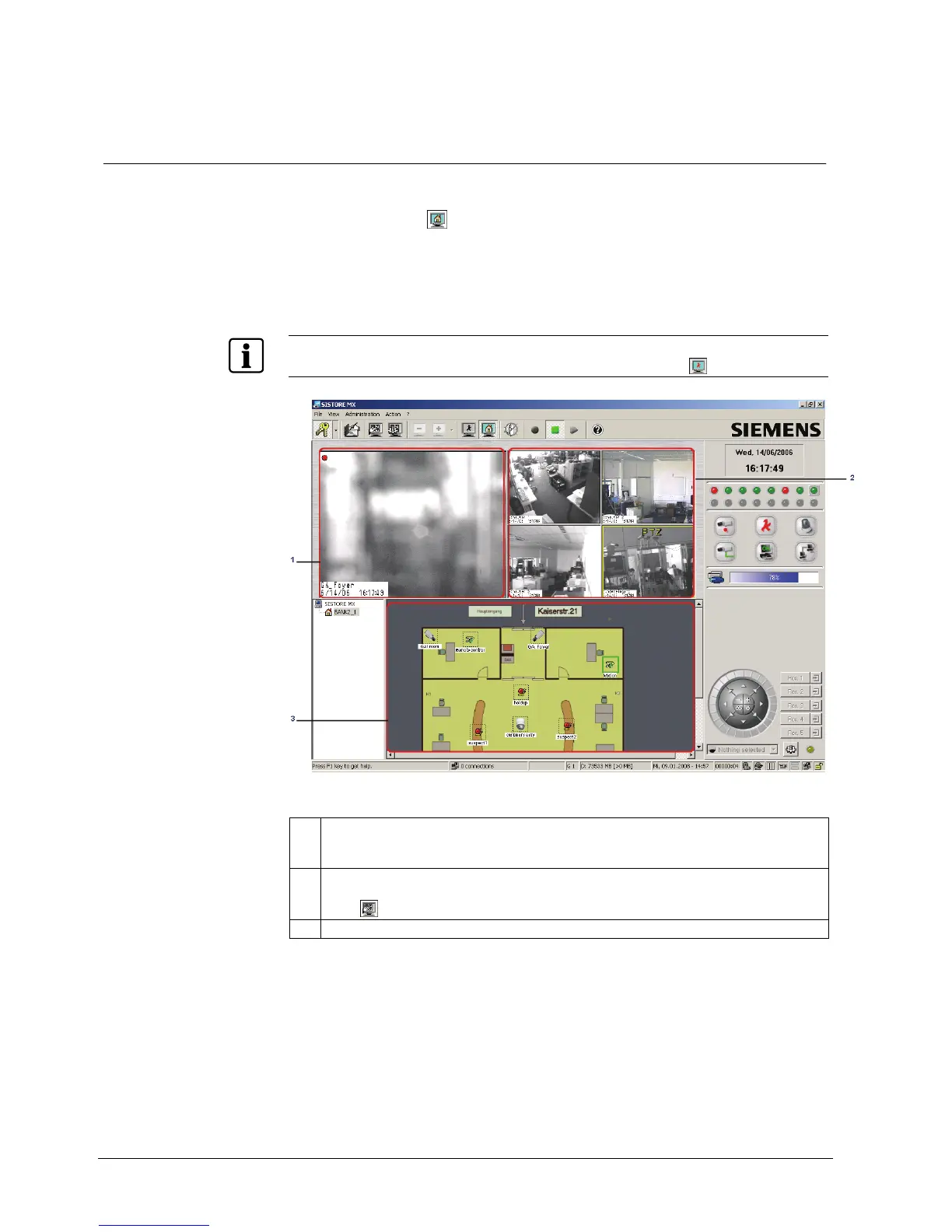

Fig. 20 Display site plan in single-monitor mode
1 Event view
The video image of the camera that was selected in the site plan will be displayed in this area. In
our example, the camera has been tampered with by spraying on paint.
2 In this area, 4 video images are displayed simultaneously. Depending on the number of
cameras that have been configured you can view further camera pictures by either clicking the
button
Next group or by selecting the menu sequence View Æ Next display group.
3 In this area the site plan is displayed as configured.
