Playback
71
Siemens Building Technologies
Fire Safety & Security Products 01.2008
Multiple assignments are not possible. If a camera has already been assigned to
another playback window, the assignment is altered to the new window which has
been entered.
If no camera has been assigned to a window at the start of playback,
SISTORE MX
will automatically assign the first 4 cameras to the playback
windows.
Only the first window (top left) is taken over if you switch back over from multi-
channel to single-channel playback.
17.5 Reference frame for replay
The reference frame for a respective camera can be opened in all replay modes
during replay. This allows the image section of the recorded scene to be compared
with the reference frame.
To do so, move the mouse pointer over the replay image, click the right mouse key
and select the menu option Show reference frame. This opens the reference image
in a new window.

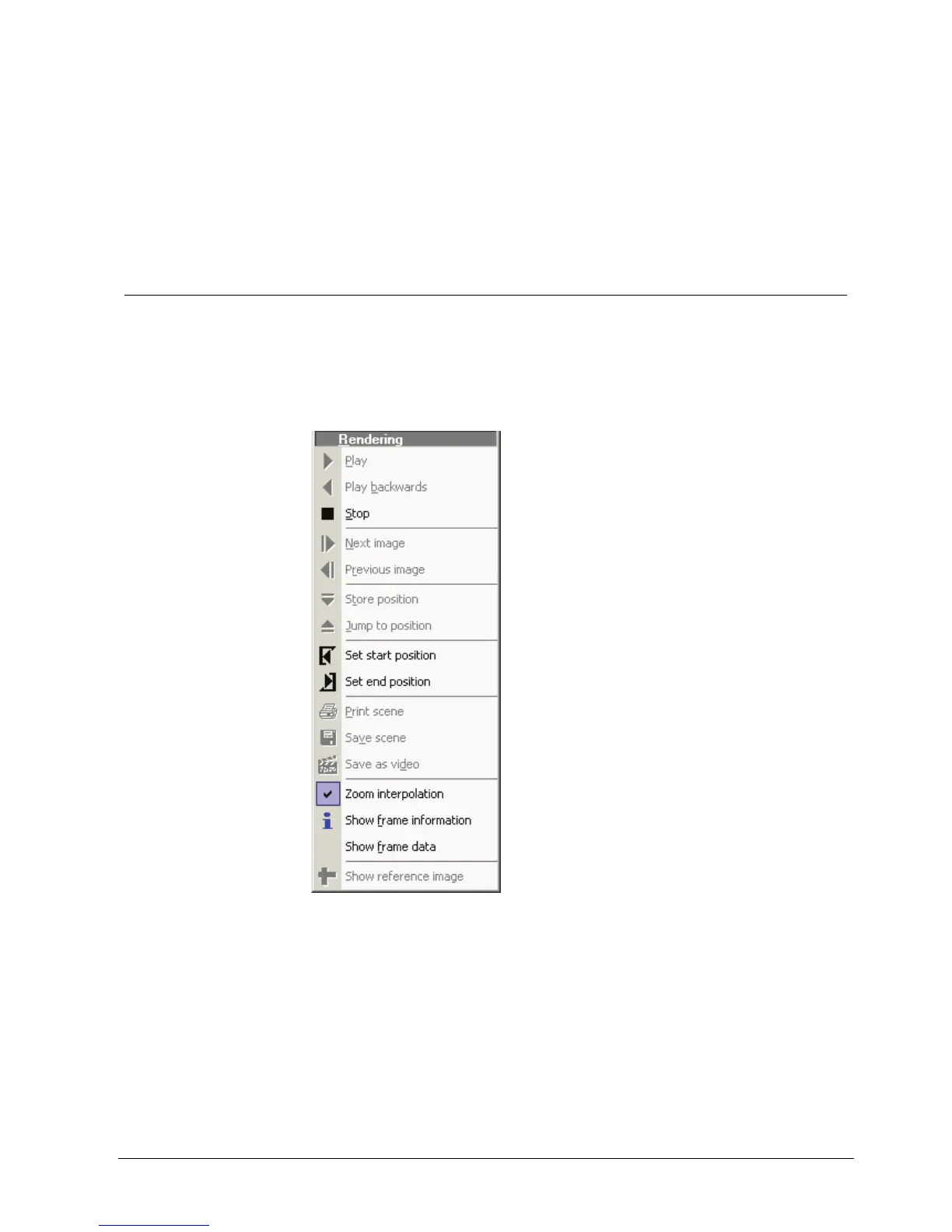

Fig. 36 Context menu at replay
