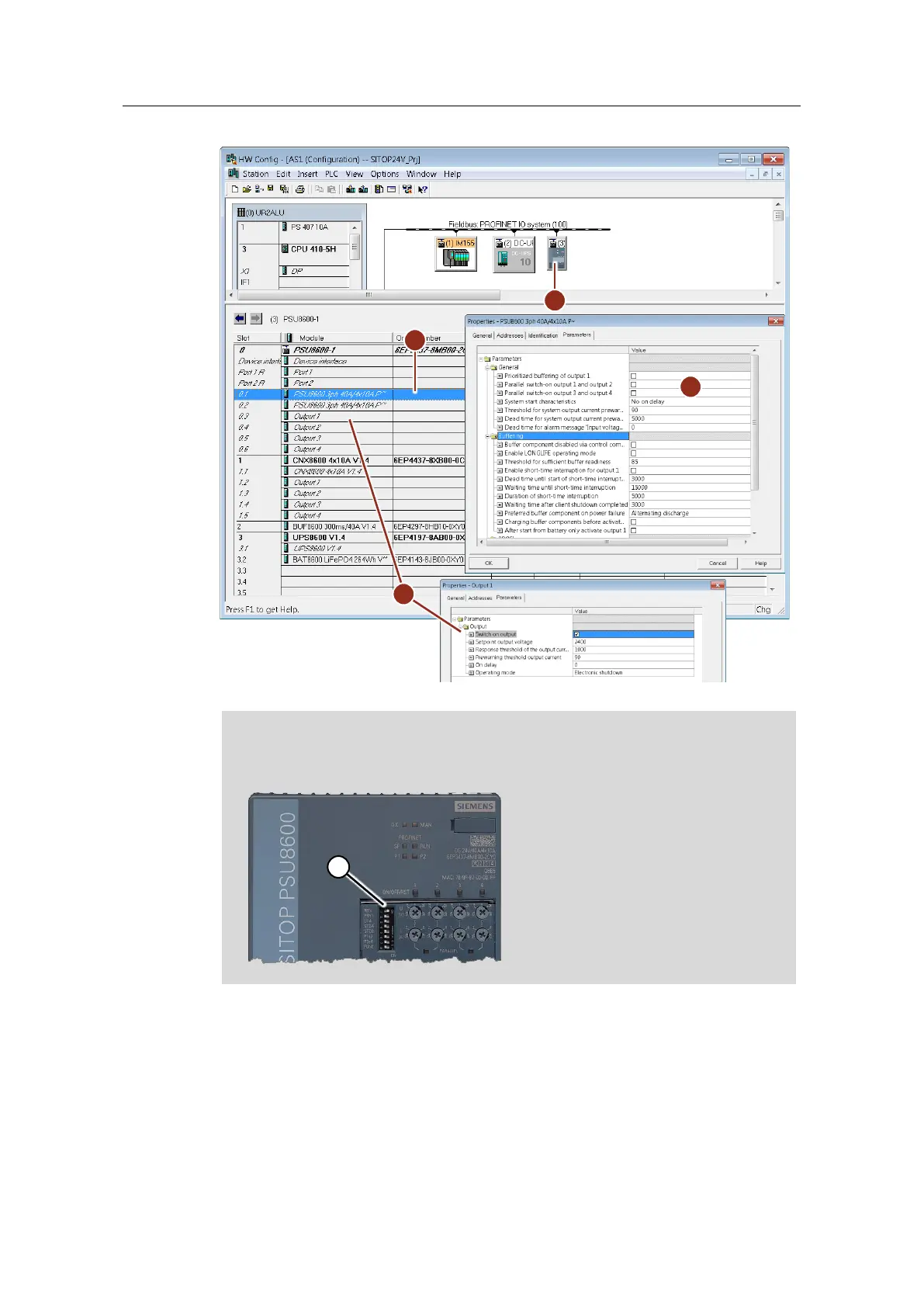

Figure 7-4
1
2
3
4
Note
Bear in mind that remote parameterization by means of the HW configuration is
only effective if you have set the "REN" DIP switch (1) on the device to the "ON"
position.
1
Configuring symbols
To interconnect the driver block of the control program with a symbolic address at a
later time, parameterize the I/O addresses of the basic module using symbols.
Proceed as follows:
1. Select the PSU8600 in the hardware configuration.
2. Highlight module "PSU8600 3ph ..." on slot 0.2 and execute menu command

