9 Commissioning the demo project
Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
93
 Siemens AG
2019 All rights reserved
Expansion modules

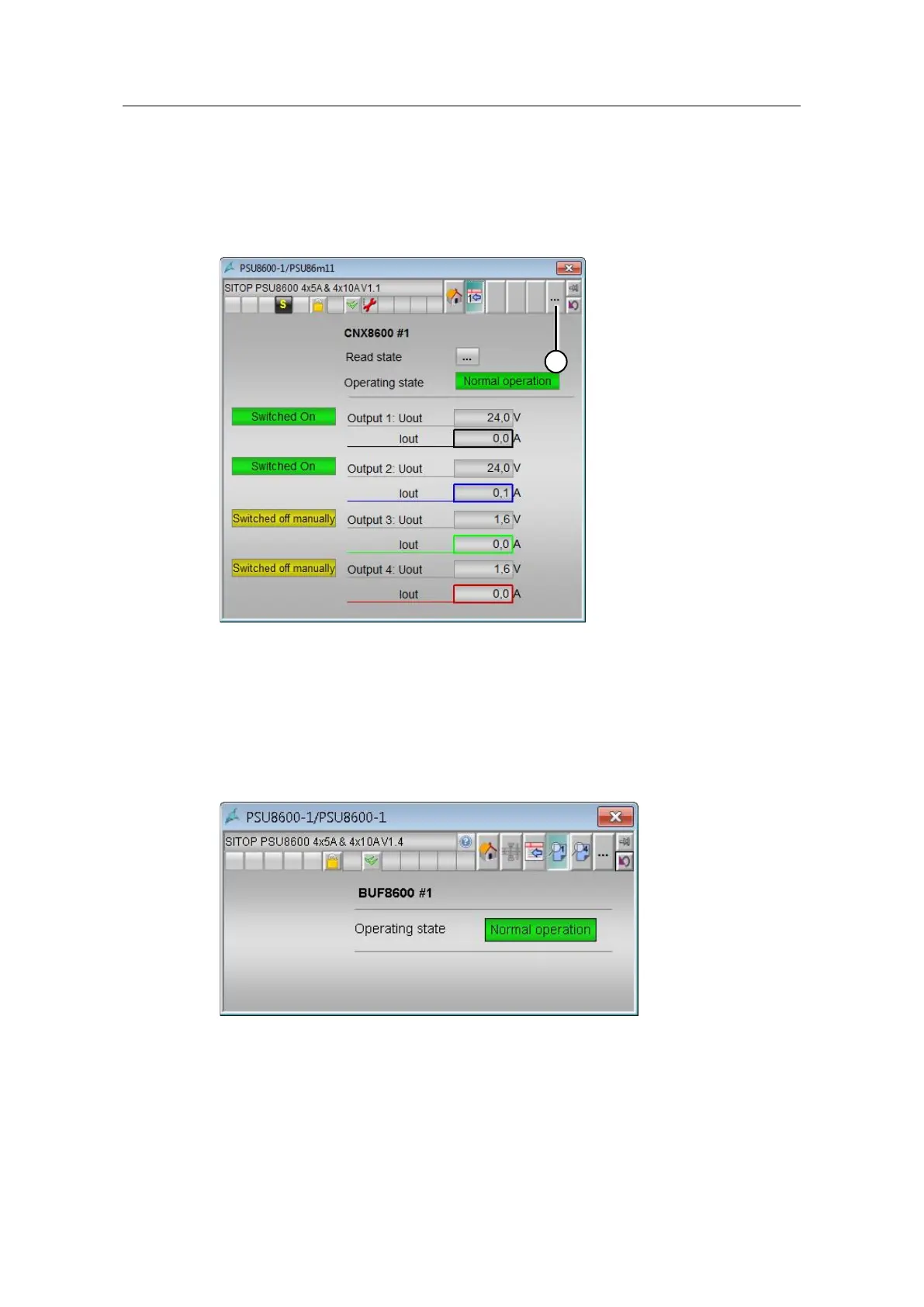

Clicking on the "Further Views" button (8) takes you to the buttons for displaying
the expansion modules. The number of buttons that are displayed depends on the
hardware configuration.
You can monitor the status of the expansion modules here.
Figure 9-18
8
Buffer modules
Clicking on the "Further Views" button again takes you to the buttons for displaying
the buffer modules. The number of buttons that are displayed depends on the
hardware configuration.
You can monitor the status of the buffer modules here.
Figure 9-19
