3.4 Compressor
3.4.1 Structure

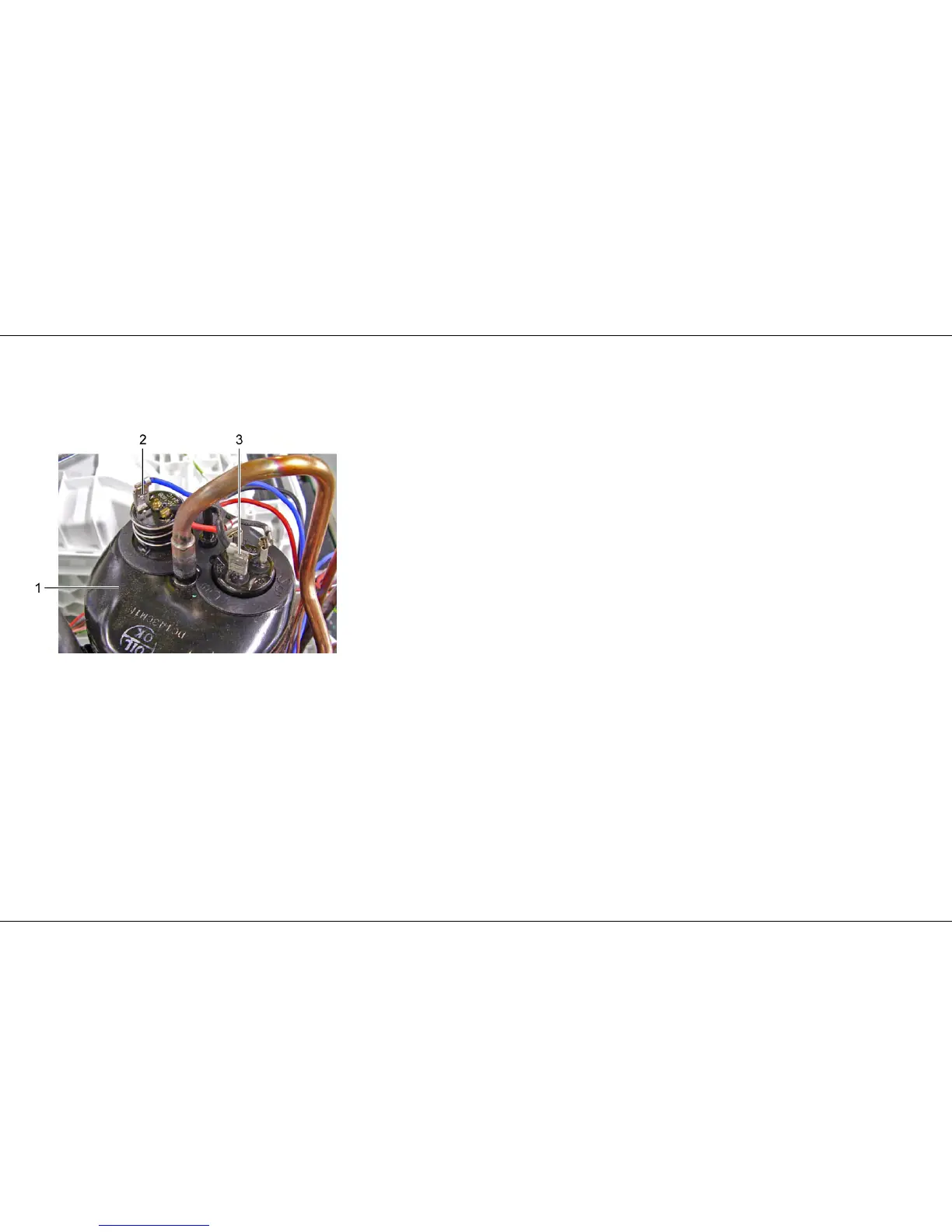

Graphic 3: Components of the compressor
1 Compressor 3 Electrical connection
2 Overheating protection OLP
The compressor (1) is integrated in the refrigeration circuit. The OLP (Over Load
Protector) overheating protection (2) and the electrical connections (3) are on the
top of the compressor.
3.4.2 Function
The compressor draws in the gaseous refrigerant and compresses it under high
pressure. During this process the refrigerant heats up considerably.
