Siemens WT46W430FF - Drum Bearing (Rear Panel)

Design and function
2015-09-07 / DIS 113_58300000171499_ara_en_c Copyright by BSH Hausgeräte GmbH Page 15 of 65
3.7 Drum bearing (rear panel)
3.7.1 Structure

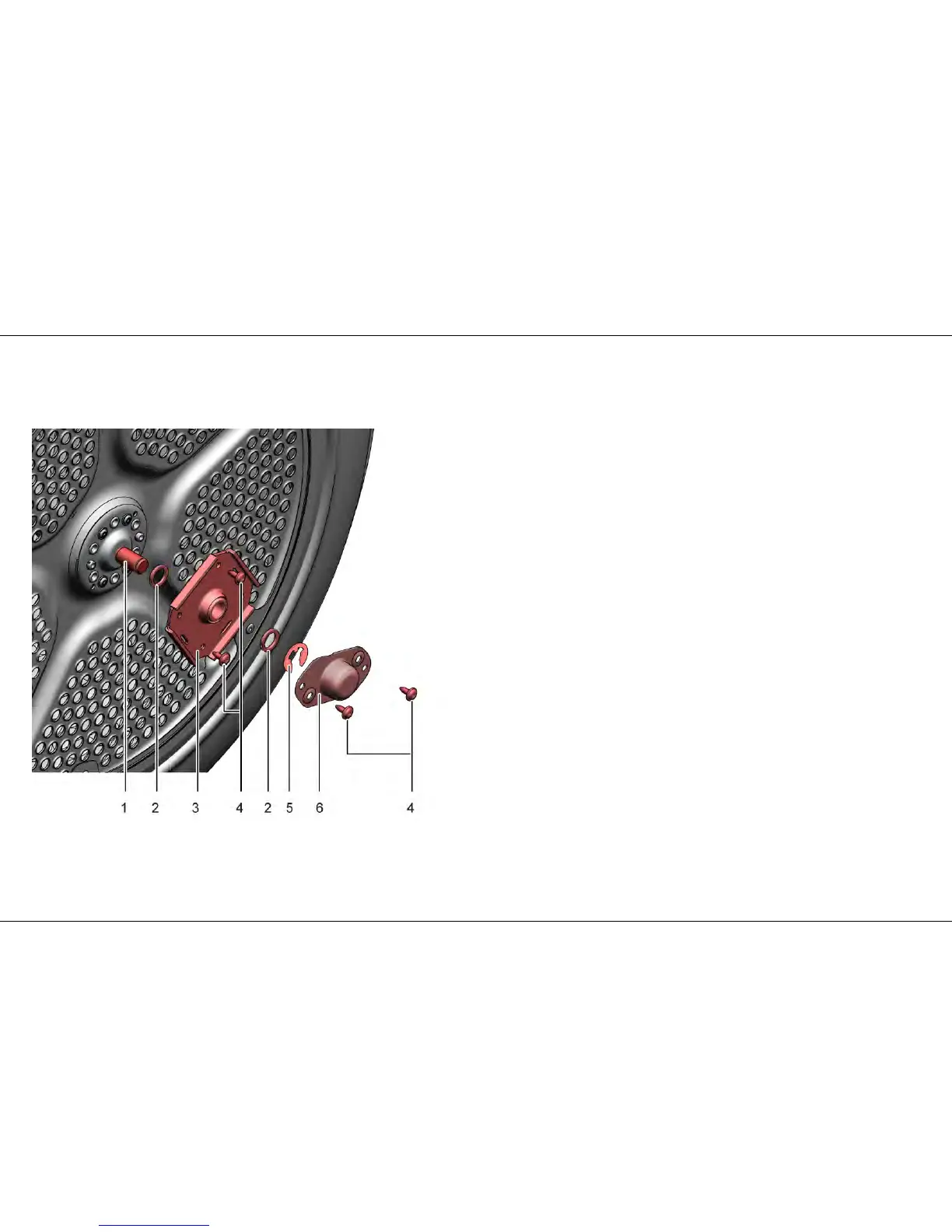

Graphic 7: Components of the drum bearing (rear panel)
1 Drum axis 4 Retaining screws
2 Bearing race 5 Retaining ring
3 Bearing pedestal 6 Bearing cover
3.7.2 Function
The drum bearing socket holds the drum in the correct position.
