Siemens WT46W430FF - Replace Scraping Fan Wheel

Repairs
2015-09-07 / DIS 113_58300000171499_ara_en_c Copyright by BSH Hausgeräte GmbH Page 56 of 65
6.16 Replace scraping fan wheel.
Required tools:
? [ Repair set 11003634]
Prerequisite:
• Worktop, right side panel removed
• Connecting cable detached from rear panel
• Side support unclipped
• Left side panel detached
• Connecting hoses to condensate tank disengaged
6.16.1 Remove defective components
1. Remove and dispose of process air duct
2. Remove and dispose of process fan wheel
3. Remove and dispose of rear bearing plate

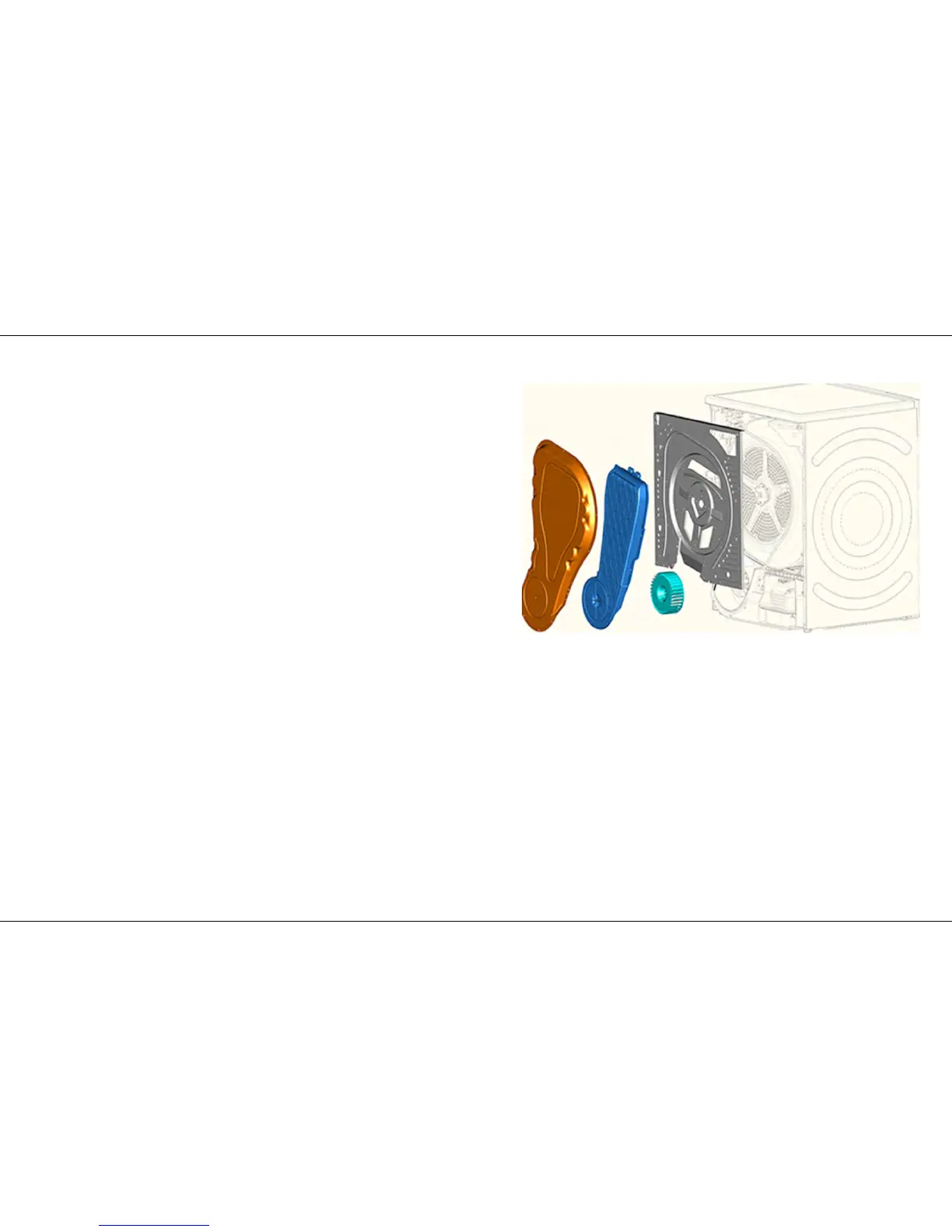

6.16.2 Install repair set
1. Install rear bearing plate.
2. Install process fan wheel.
3. Install process air duct.
4. Install process air duct cover.
