3.9 Condensate pump
3.9.1 Structure
The condensate pump is a split pole pump (without protector) which is protected by
its own inherent resistance.
The condensate pump (1) has a fill level sensor (2).

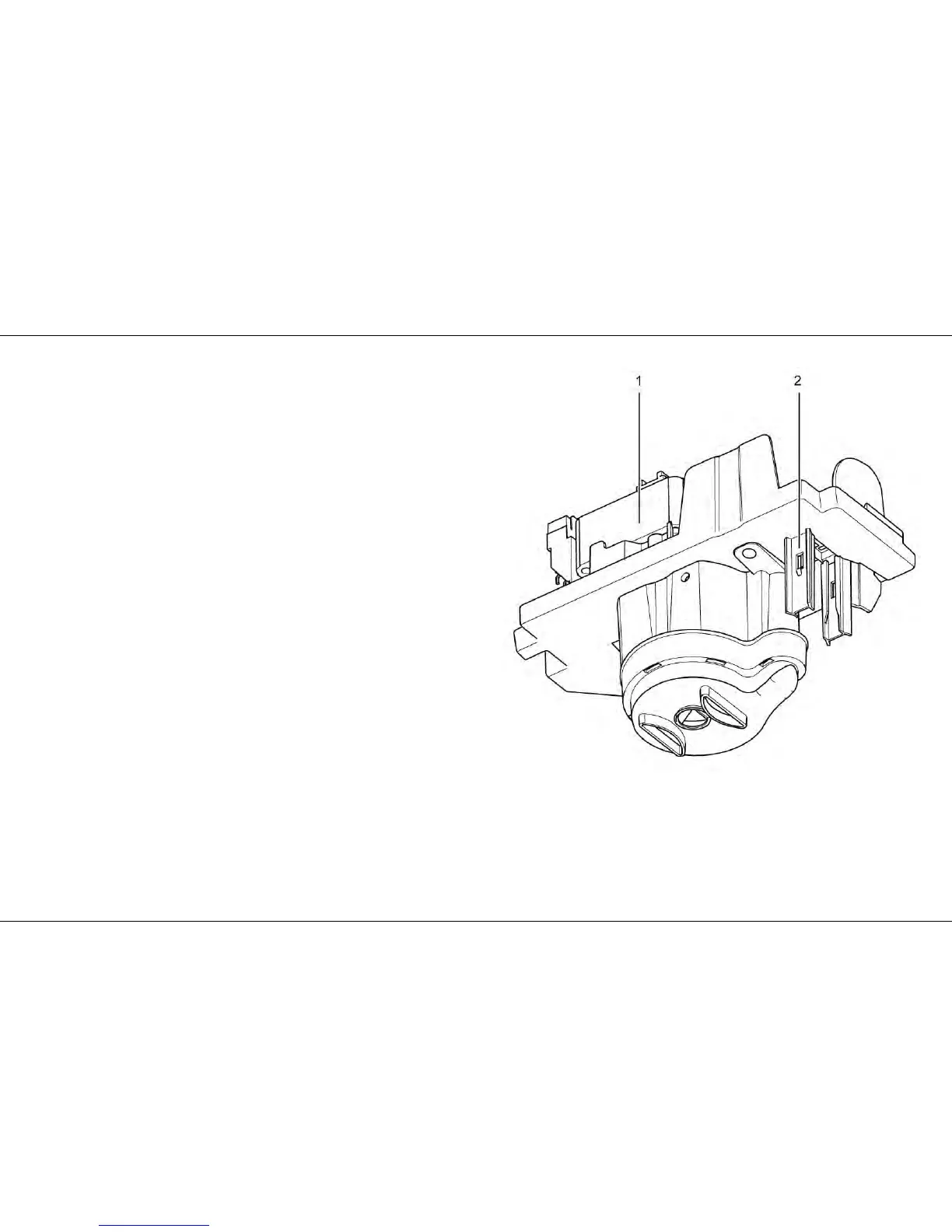

Graphic 9: Components of the condensate pump
1 Condensate pump 2 Fill level sensor
3.9.2 Function
The condensate pump is connected with the electronic control and is switched by
this electronic control on an event-driven basis.
