Repairs
2015-09-07 / DIS 113_58300000171499_ara_en_c Copyright by BSH Hausgeräte GmbH Page 36 of 65
6.3 Removing/installing the worktop

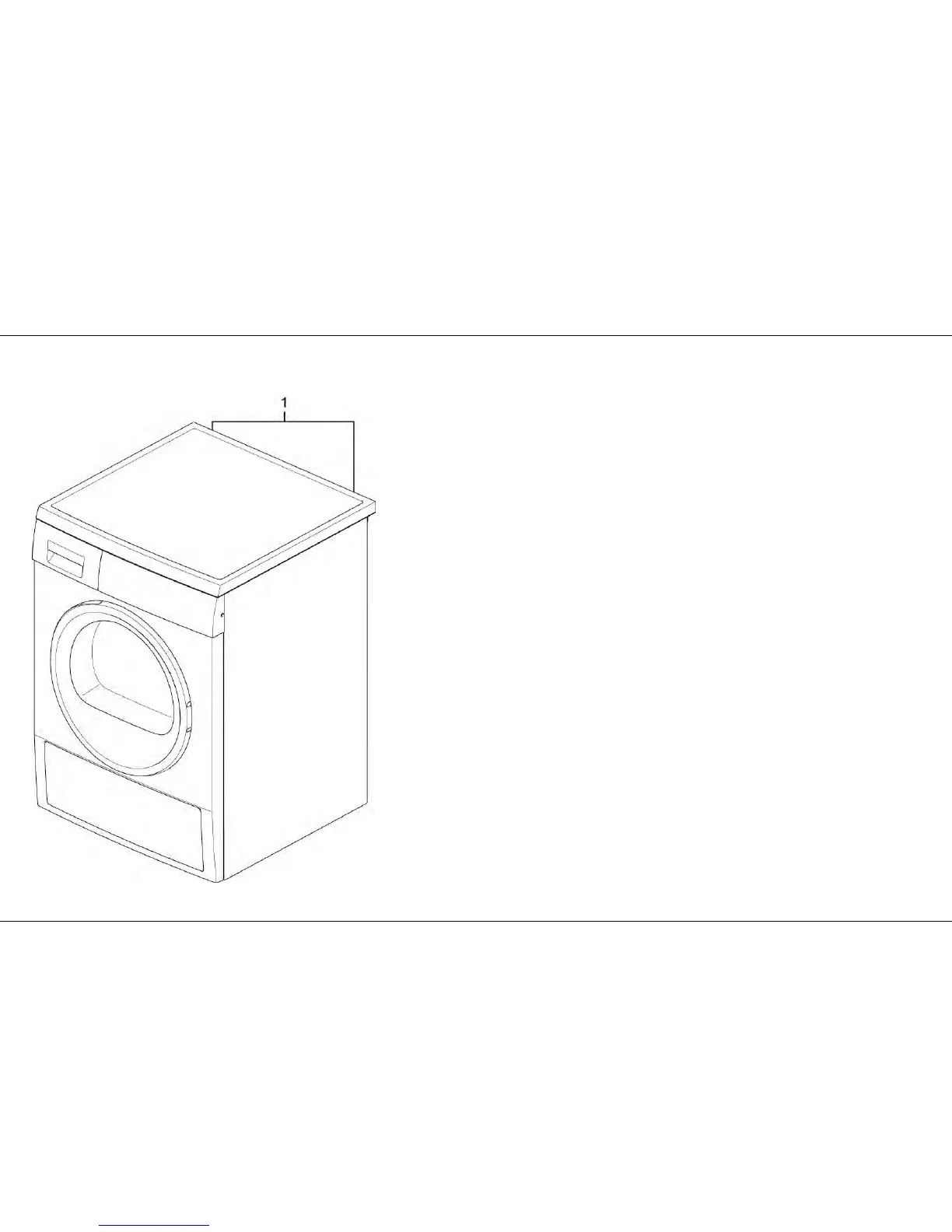

Graphic 14:Removing worktop
1 Screw
Prerequisite:
• The appliance is free-standing.
6.3.1 Removing worktop
1. Remove screws (1).
2. Pull worktop backwards
3. Remove worktop upwards.
6.3.2 Installing the worktop
► Install the worktop in reverse sequence.
