Repairs
2015-09-07 / DIS 113_58300000171499_ara_en_c Copyright by BSH Hausgeräte GmbH Page 52 of 65
6.12 Replacing rollers

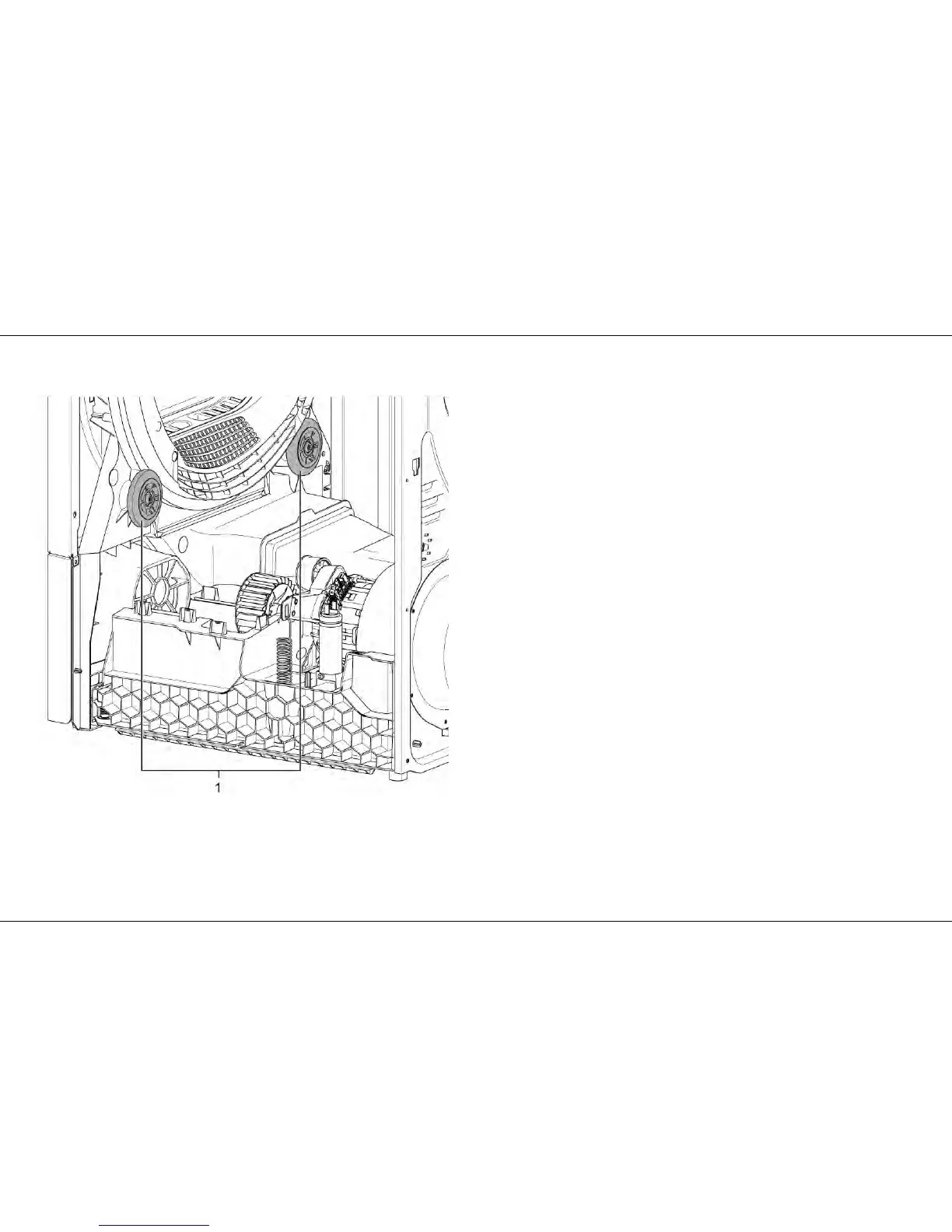

Graphic 20:Rollers
1 Roller
Prerequisite:
• Worktop has been removed.
• Side panels have been removed.
• Drum has been removed.
• Rear panel has been removed.
6.12.1 Removing rollers
1. Remove screw.
2. Remove rollers (1) together with bearing from end shield.
6.12.2 Installing rollers
► Install rollers in reverse order.
