6.15 Removing the fan drum (process air)

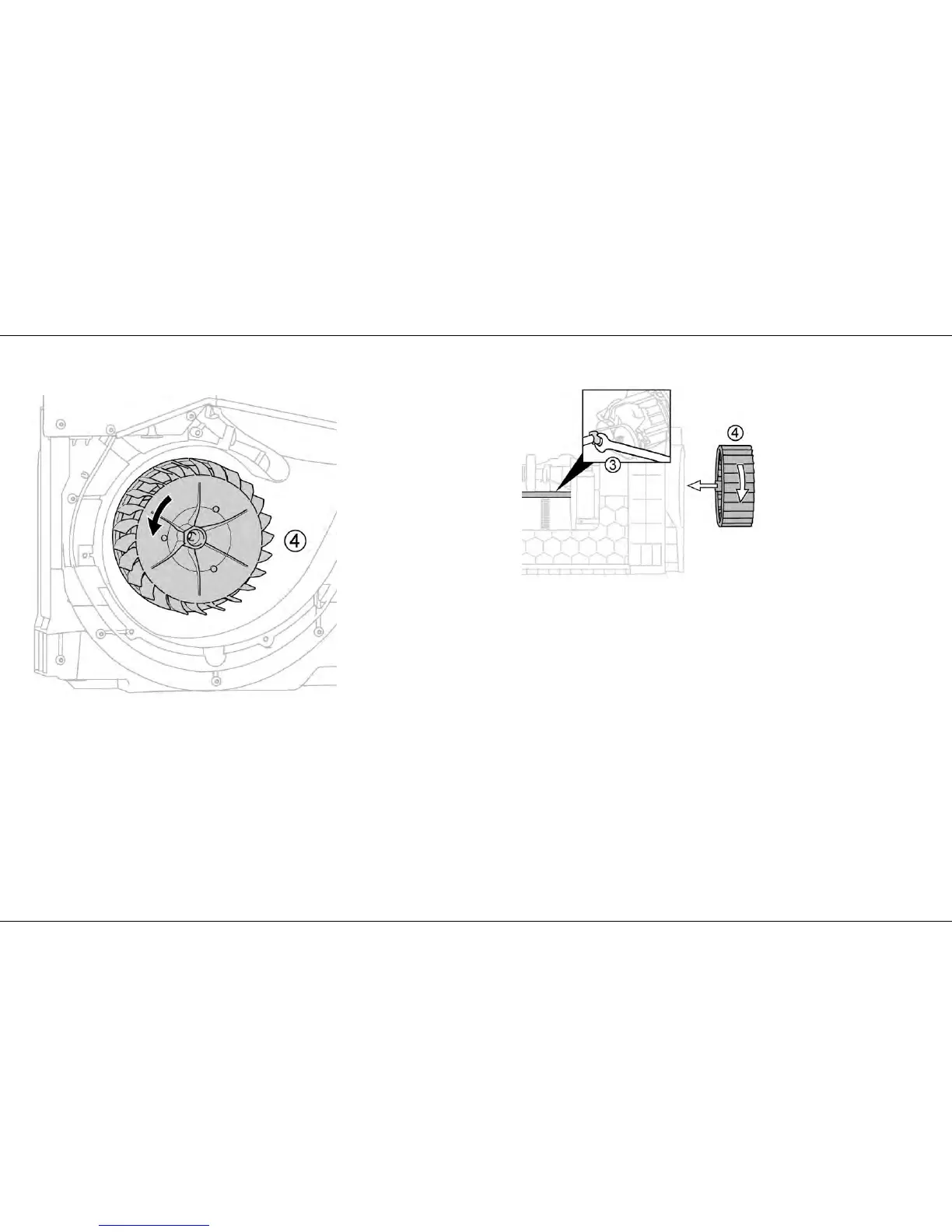

Graphic 21:Fan drum (process air) (4)
1 Fan drum (process air)
Prerequisite:
• Worktop has been removed.
• Right-hand side panel has been removed.
• Cover (process air) has been removed.
6.15.1 Removing fan drum (process air)
1.
2. Fix motor shaft with a wrench (3).
3. Dismantle fan drum (process air) (4) in an anti-clockwise direction using a
socket wrench.
4. Take fan drum (process air) out of the appliance.
6.15.2 Assembling fan drum (process air)
► Assemble fan drum (process air) in reverse sequence.
