Repairs
2015-09-07 / DIS 113_58300000171499_ara_en_c Copyright by BSH Hausgeräte GmbH Page 60 of 65
6.20 Removing / installing drum bearing

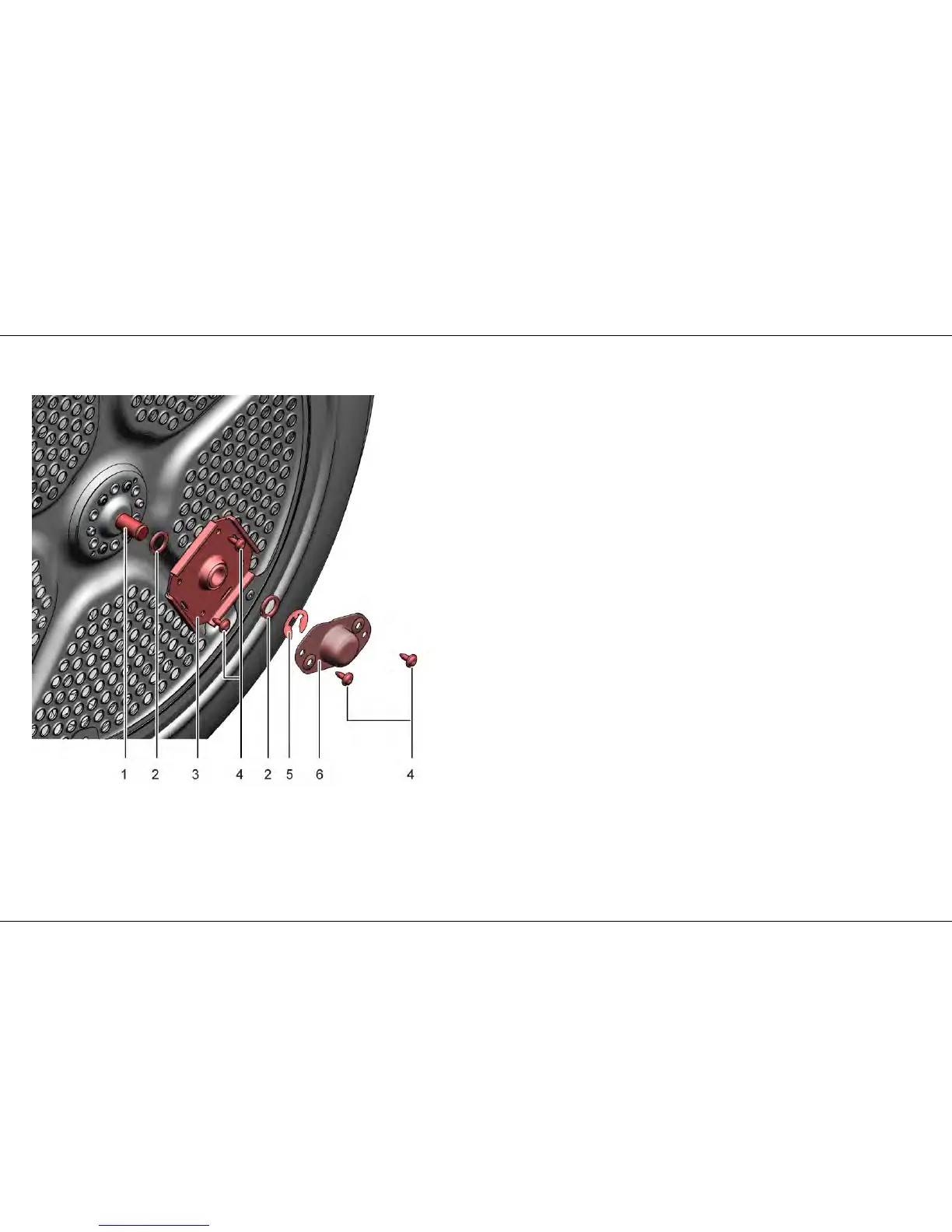

Graphic 24:Drum bearings
1 Drum shaft 4 Bolts
2 Inner and outer raceway 5 Retaining ring
3 Bearing block 6 Bearing cover
Prerequisite:
• Worktop has been removed.
• Outer and inner process air cover has been removed.
6.20.1 Removing drum bearing
1. Remove screws (4) from the cover.
2. Remove bearing cover (6).
3. Remove retaining ring (5).
4. Remove outer raceway (2).
5. Remove screws (4) from the drum bearing (3).
6. Raise drum.
7. Take drum bearing out of the appliance.
6.20.2 Installing drum bearing
► Install drum bearing in reverse order.
