6.21 Removing / installing the journal
Required tools:
? Countersinking tool ([ 341299] )
Prerequisite:
• Worktop has been removed.
• Fascia has been removed.
• Rear panel has been removed.
• Process air duct has been removed
• Bearing has been removed.
6.21.1 Removing the journal
1.

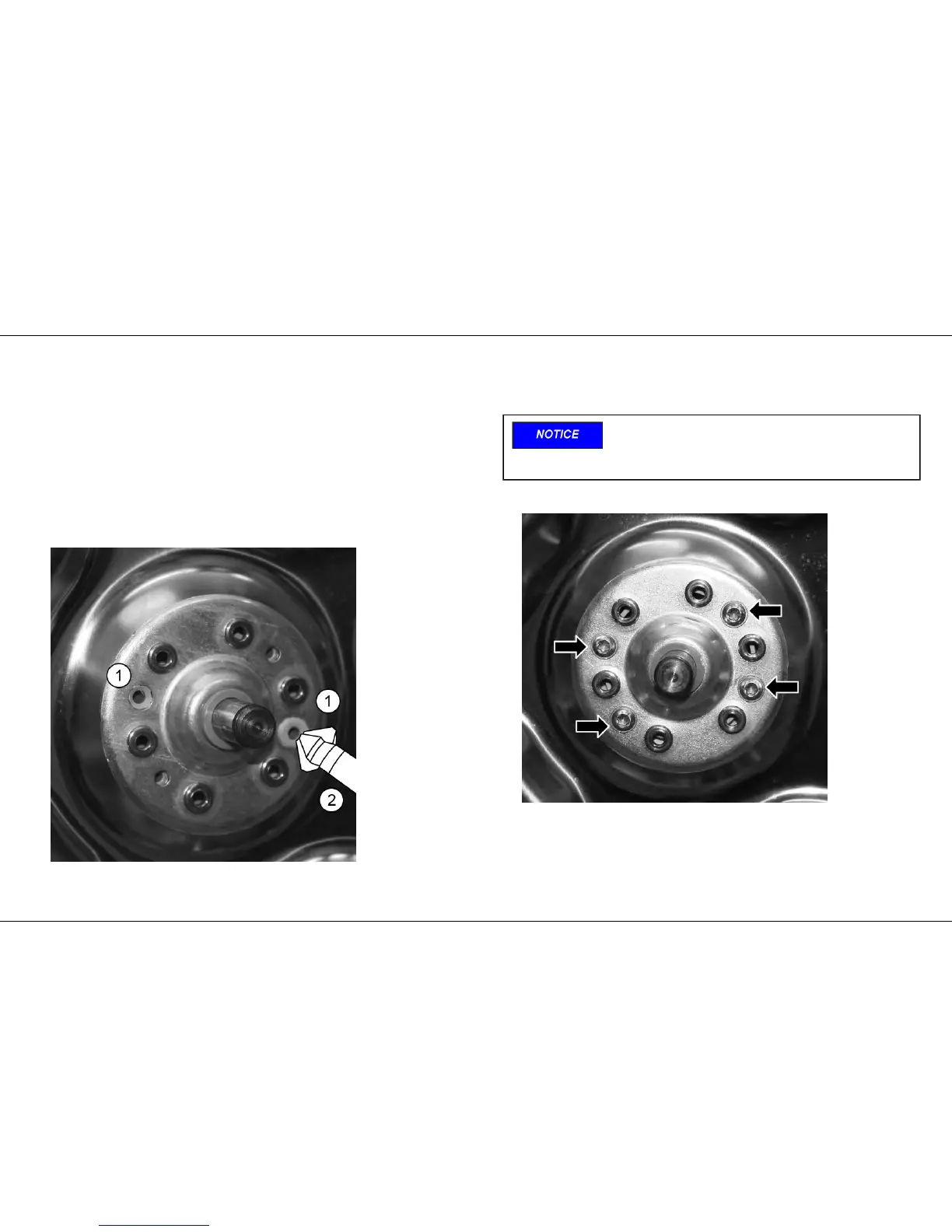

2. Unscrew plastic rivets (1) using countersinking tool (2).
6.21.2 Installing journal
► Do not attach journal with the rivets. Use holes between the rivets.
1. Attach journal using the enclosed screws
2.
