Siemens WT46W430FF - Removing;Installing Front Panel

Repairs
2015-09-07 / DIS 113_58300000171499_ara_en_c Copyright by BSH Hausgeräte GmbH Page 46 of 65
6.8 Removing/installing front panel

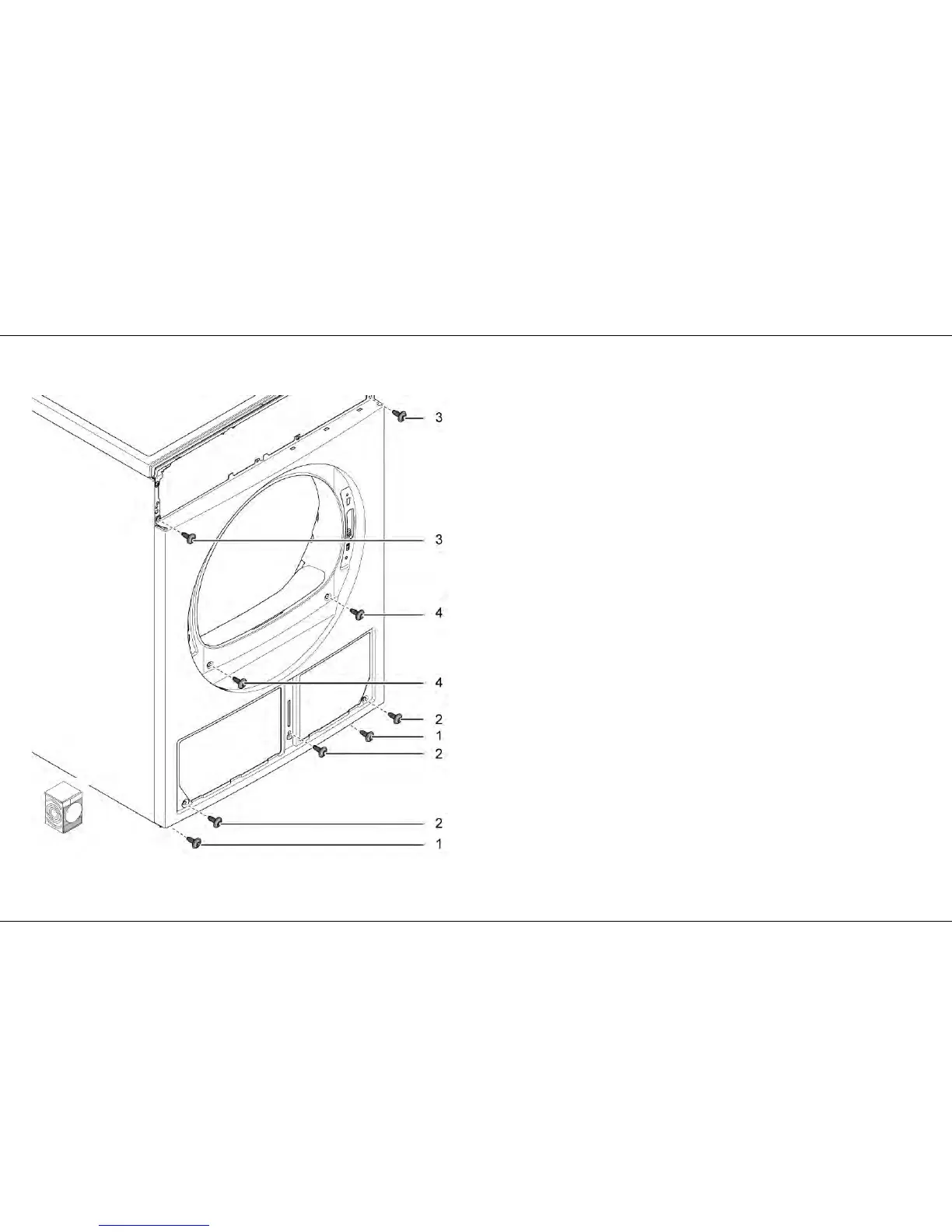

Graphic 18:Front panel
1 Screw 3 Screw
2 Screw 4 Screw
Prerequisite:
• Worktop has been removed.
• Control panel has been removed.
• Door has been removed.
• Door seal has been removed.
• Air inlet panel has been removed.
• Maintenance cover has been removed.
• Door lock has been removed.
6.8.1 Removing front panel
1. Remove screws (1).
2. Remove screws (2).
3. Remove screws (3).
4. Remove screws (4).
5. Detach front panel on the left side.
6. Unhook front panel on the right side and remove.
6.8.2 Installing the front panel
► Install front panel in reverse sequence.
