1: Operation Procedures

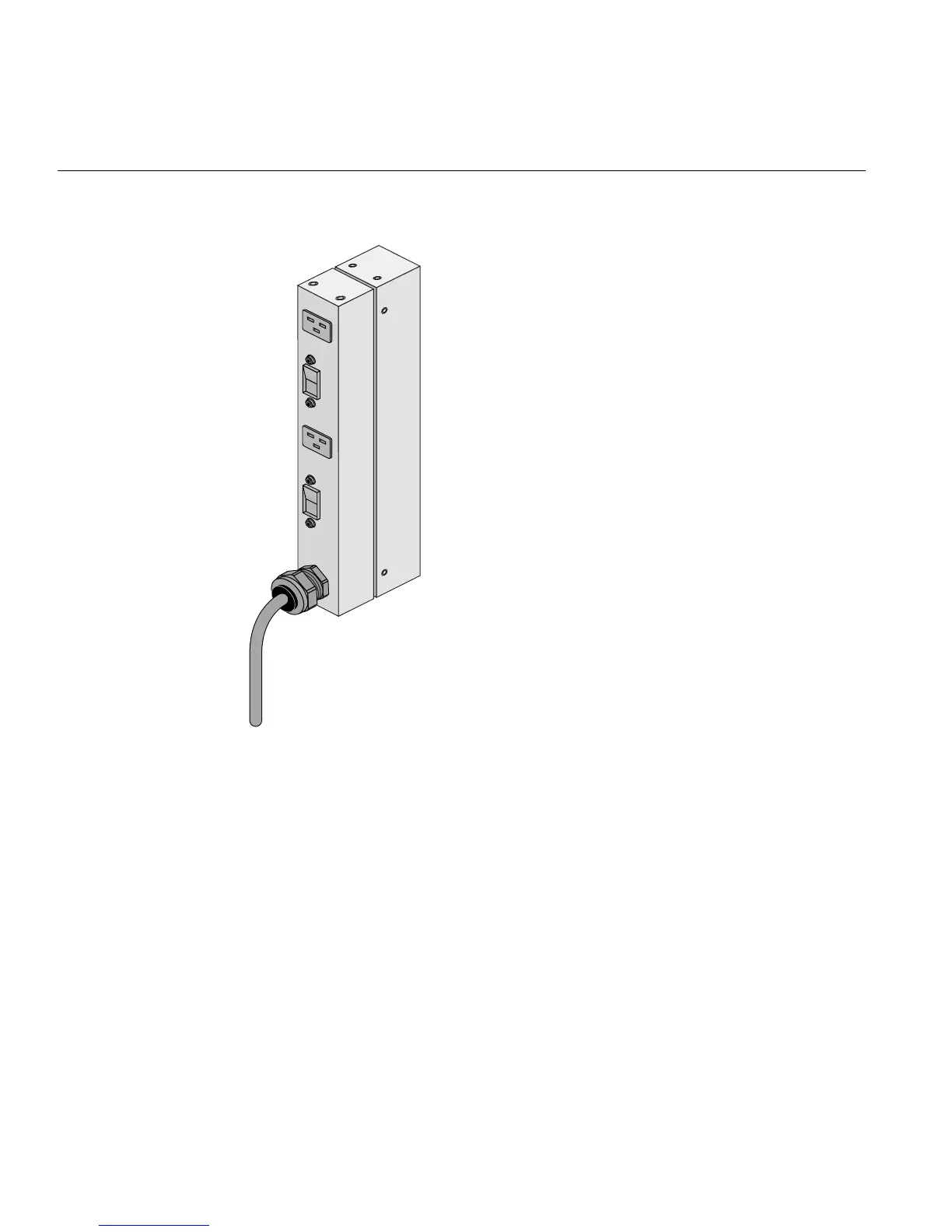

Figure 1-2 Single-Phase 2-Outlet PDU Example
Figure 1-3 on page 5 shows an example of an eight-plug single-phase PDU that can be used in the
SGI UV 2000 rack system. This unit is used to support auxiliary equipment in the rack.
