Silicon Graphics UV 2000 User Manual

58 007-5832-002
5: Optional Octal Router Chassis Information
SGI UV 2000 Series NUMAlink Octal Router Chassis
The NUMAlink 6 ORC router is a 7U-high fully self contained chassis that holds up to eight
16-port NL6 router blade assemblies. Figure 5-1 shows an example rear view of the ORC with no
power or NUMAlink cables connected.
The NUMAlink ORC is composed of the following:
• 7U-high chassis
• 4 or 8 HARP based router blade assemblies
• Cooling-fan assemblies
• Chassis Management Controller (CMC)/power supply assembly (with two power supplies)

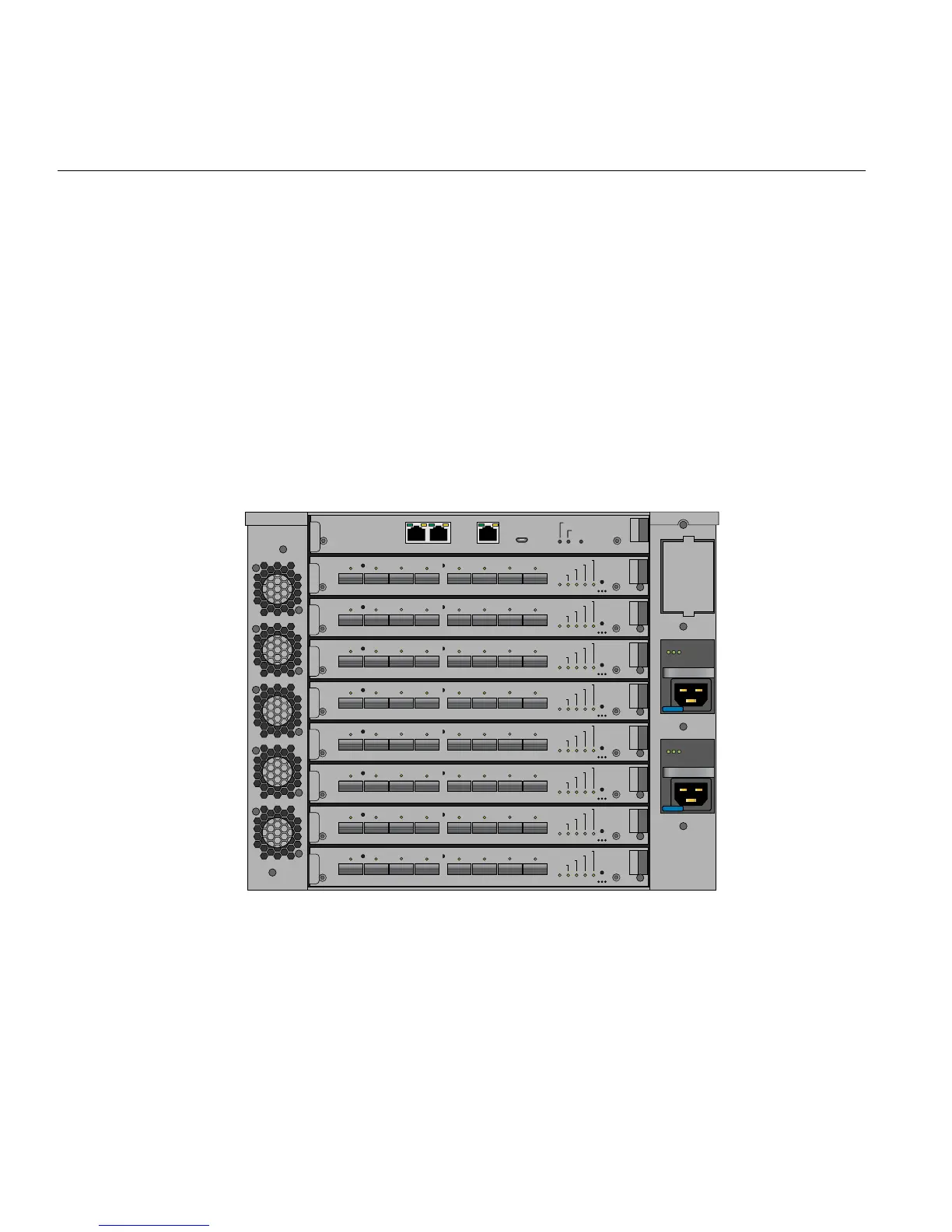

Figure 5-1 SGI UV 2000 Optional NUMAlink ORC (Rear View)
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
CMCSMN ACC CONSOLE
RESET
HEARTBEAT
PWR GOOD
