4. Power LED - Illuminates blue when the unit is receiving power.
The 1U console attaches to the system management node server using PS/2 and HD15M
connectors or to an optional KVM switch (not provided by SGI). See Figure 2-4 for the SMN
video connection points. The 1U console is basically a “dumb” VGA terminal, it cannot be used
as a workstation or loaded with any system administration program.
The 27-pound (12.27-kg) console automatically goes into sleep mode when the cover is closed.

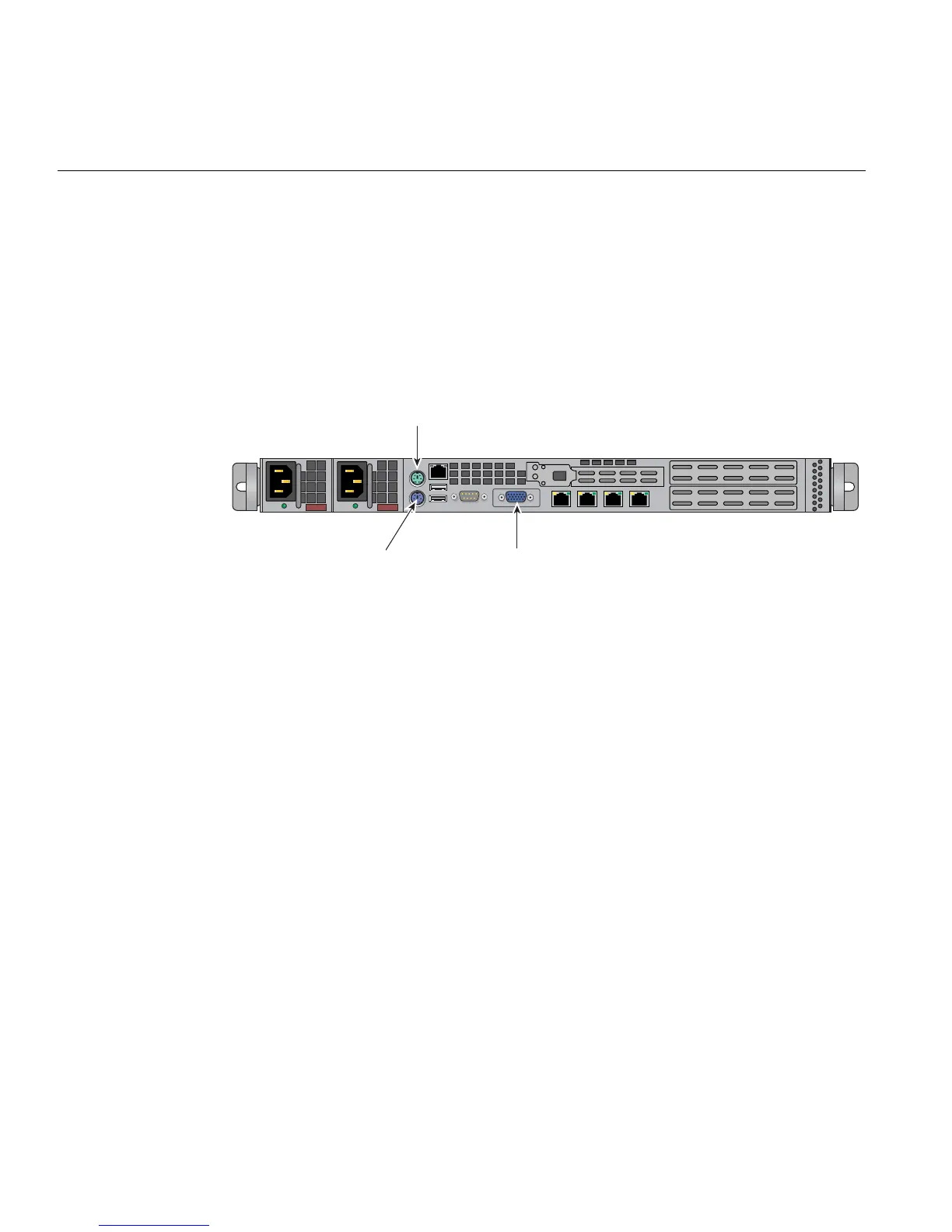

Figure 2-4 System Management Node (SMN) Direct Video Connection Ports
Mouse
Keyboard
VGA Port
