Network loops can be joined via physical bridge cards. There may be no more than two
Style 7 network loops connected in tandem. For every two loops that are interconnected
(using one physical bridge), there can be a maximum of three physical bridges used in a
star configuration. See Figure 1-4.{xe "Network 4100 Fire Alarm System: physical
bridge (overview)"}{xe "physical bridge: connecting loops with"}{xe "Network 4100
Fire Alarm System: loops"}
Remote Ring
Physical Bridge Link
Local Ring
Physical Bridging
(Star Configuration)
Graphic Command
Center (GCC)
Physical
Bridge
Link
Physical Bridge Link
Hub Node
Hub
Node
Remote
Node
Physical Bridge Link

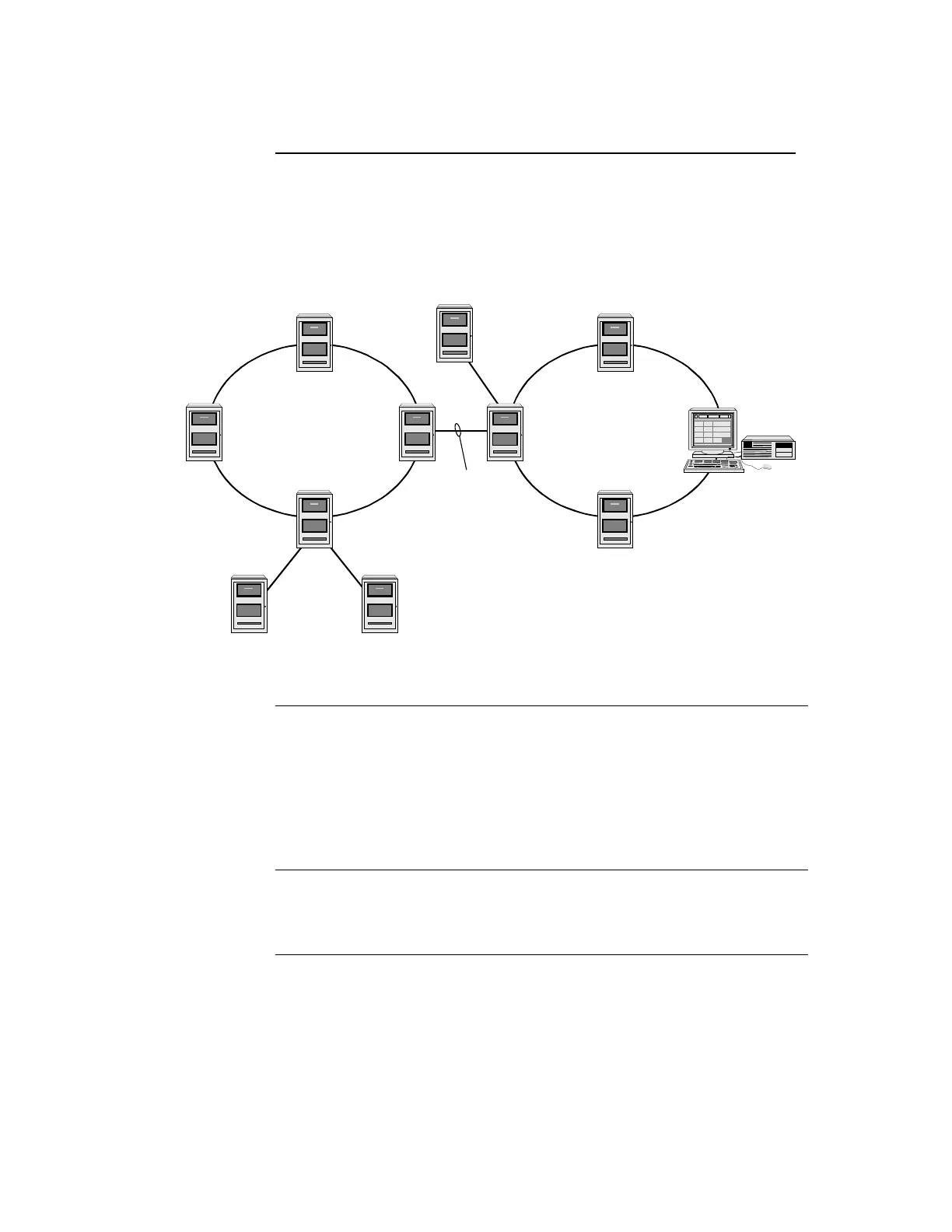

Figure 1-4. Interconnected Loop Configuration
To be used as a network node, a 4100ES panel must contain the following:
CPU.{xe "Network 4100 Fire Alarm System: system design"}
System Power Supply.
4100ES Network Interface Card.
Optional slave cards.
Network connections require 4100-6014 Network Interface Cards (NICs). Each network
node requires a NIC. Once the FIP is a network node, it may be programmed to be fully
in control of other nodes, or to be fully passive, or anywhere in between.
Network Configuration, Continued
Connecting Loops
System Design
Network
Communication
